- Single Socket P+ (LGA-4189) 3rd Gen Intel Xeon Scalable processors. Up to 270W TDP.
- 8 DIMMs; Supports 3DS DDR4-3200: RDIMM/LRDIMM/Intel DCPMM
- 2 PCIe 4.0 x16 (LP) slots, 2 PCIe 4.0 x8 (LP) slots
- Intel Ethernet Controller X550 2x 10GbE RJ45
- 45x Top-loading hot-swap 3.5″ SAS3/SATA3 drive bays, 2x Hot-swap 2.5″ SATA drive bays (rear), Onboard 1x NVMe/SATA M.2; 2x Hot-swap 2.5″ SATA3/NVMe (rear, optional)
- Redundant Platinum 1600W Power Supply

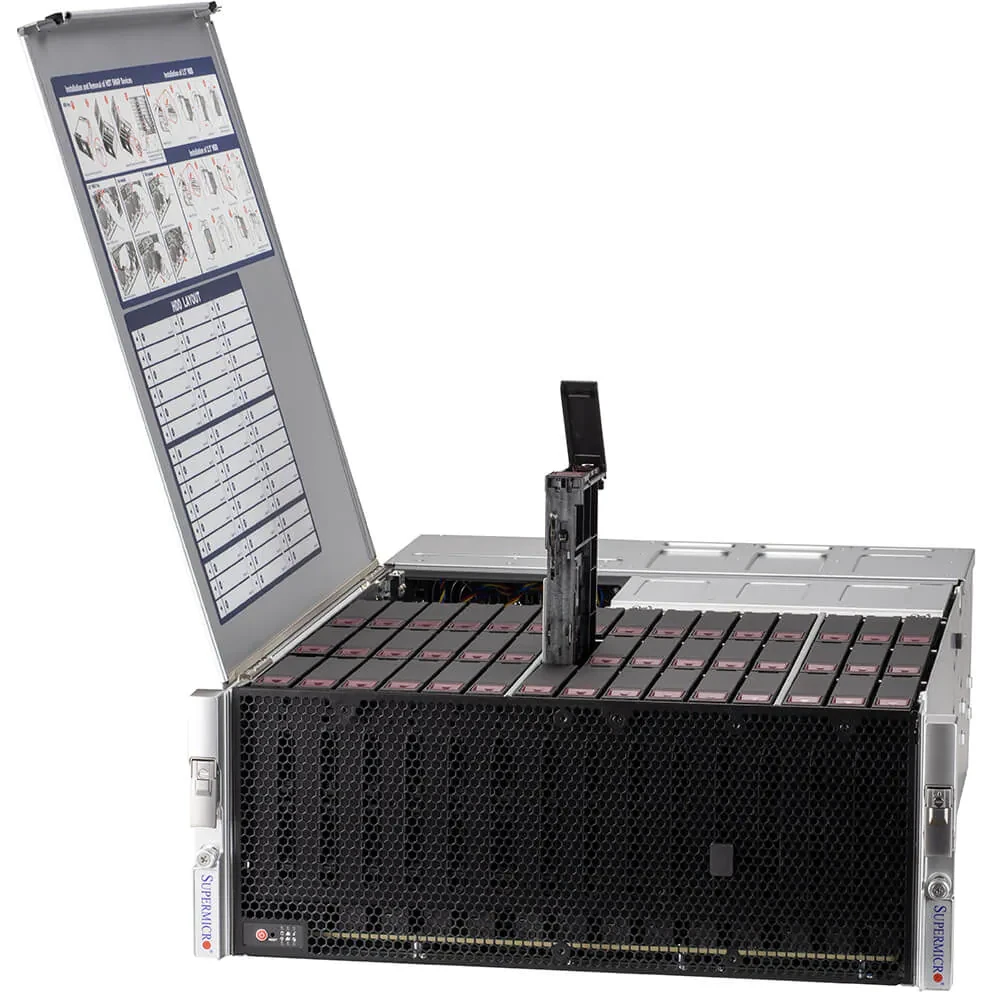

UP Storage SuperServer SSG-540P-E1CTR45L
**UP Storage SuperServer SSG-540P-E1CTR45L**
A high-density 4U rackmount storage server designed for enterprise-scale data workloads. Features include support for **45 hot-swappable drives** (NVMe/SAS/SATA), dual Intel Xeon Scalable processors, and up to 4TB DDR4 memory. Offers **massive storage capacity** (up to 1.8PB) and **blazing-speed data access** via PCIe Gen4/5 expansion slots. Redundant 80+ Platinum PSUs and advanced cooling ensure **24/7 reliability**, while modular design simplifies maintenance. Ideal for AI/ML, cloud, and big-data applications, combining unmatched scalability, performance, and energy efficiency in a single chassis. **USP:** Industry-leading drive density with hybrid storage flexibility, optimized for future-proof, mission-critical deployments.
$Quote1 Piece (MOQ)
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:
| Note | Supports up to 270W TDP CPUs (Air Cooled) |
|---|---|
| Network Connectivity | 2x 10GbE BaseT with X550 |
| Memory | Slot Count: 8 DIMM slots Max Memory (2DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMM |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Core Count | Up to 40C/80T; Up to 60MB Cache per CPU |
| CPU | Single Socket P+ (LGA-4189) 3rd Gen Intel Xeon Scalable processors |
| Width | 17.2" (437mm) |
| Weight | Net Weight: 85 lbs (38.56 kg) Gross Weight: 120 lbs (54.43 kg) |
| Motherboard | Super X12SPI-TF |
| Package | 22" (H) x 28" (W) x 42" (D) |
| Form Factors | |
| Product SKUs | SuperServer SSG-540P-E1CTR45L (Black) |
| SAS | SAS3 (12Gbps) via Broadcom 3808 (IT mode) |
| Chipset | Intel C621A |
| Chassis Model | CSE-946LTS-R1K66P1 |
| SATA | SATA3 (6Gbps) via C621A Chipset; RAID 0 1 5 10 support |
| Depth | 26" (660mm) |
| Height | 7" (178mm) |
| Chassis Form Factor | 4U Rackmount |
