- 8 DIMMs; Supports 3DS DDR4-3200: RDIMM/LRDIMM/Intel DCPMM
- 2 PCIe 4.0 x16 (LP) slots, 2 PCIe 4.0 x8 (LP) slots
- Intel Ethernet Controller X550 2x 10GbE RJ45
- 45x Top-loading hot-swap 3.5″ SAS3/SATA3 drive bays, 2x Hot-swap 2.5″ SATA drive bays (rear), Onboard 1x NVMe/SATA M.2; 2x Hot-swap 2.5″ SATA3/NVMe (rear, optional)
- Redundant Platinum 1600W Power Supply

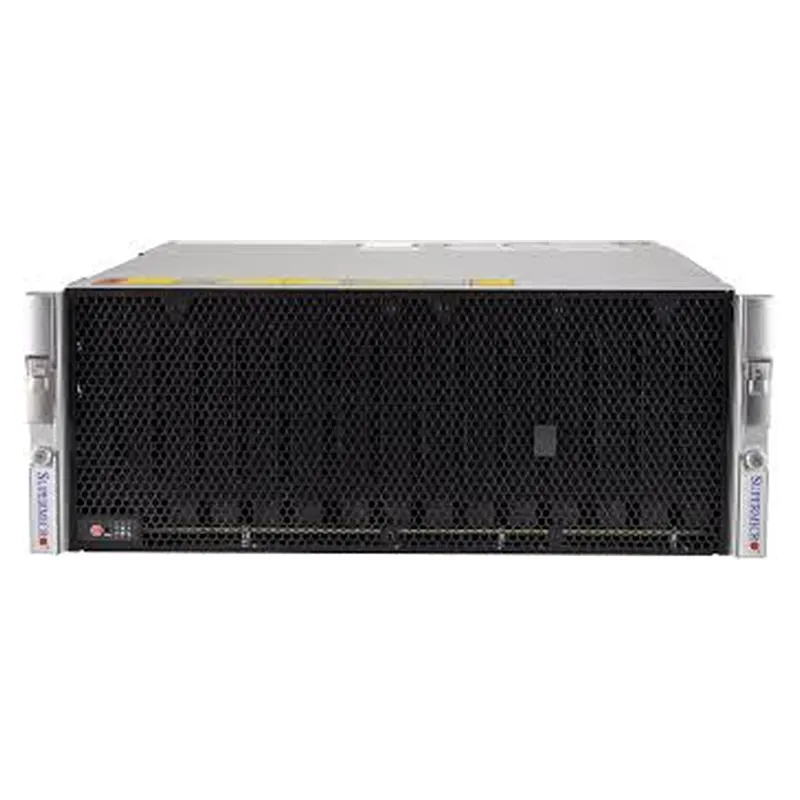

UP Storage SuperServer SSG-540P-E1CTR45H (Complete System Only )
**UP Storage SuperServer SSG-540P-E1CTR45H (Complete System)**
A high-density, enterprise-grade storage solution designed for scalability and performance. Features a 4U chassis with 45 hot-swappable drive bays (supports 3.5”/2.5” HDD/SSD), dual Intel Xeon Scalable processors, up to 3TB DDR4 memory, and 8 PCIe slots for expansion. Integrates dual 25GbE + 1GbE ports for high-speed networking, redundant 1400W PSUs, and advanced thermal management. Ideal for data centers, cloud storage, and big data analytics, it delivers massive storage capacity, flexible configurability, and robust reliability. **USP:** Combines extreme storage density with enterprise-level compute power, ensuring seamless scalability and uptime for demanding workloads.
$Quote1 Piece(MOQ)
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:
| Note | Supports up to 270W TDP CPUs (Air Cooled) |
|---|---|
| Network Connectivity | 2x 10GbE BaseT with X550 |
| Memory | Slot Count: 8 DIMM slots Max Memory (2DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMM |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Core Count | Up to 40C/80T; Up to 60MB Cache per CPU |
| CPU | Single Socket P+ (LGA-4189) 3rd Gen Intel Xeon Scalable processors |
| Width | 17.2" (437mm) |
| Weight | Net Weight: 85 lbs (38.56 kg) Gross Weight: 120 lbs (54.43 kg) |
| Motherboard | Super X12SPI-TF |
| Package | 22" (H) x 28" (W) x 42" (D) |
| Form Factors | |
| Product SKUs | SuperServer SSG-540P-E1CTR45H (Black) |
| SAS | SAS3 (12Gbps) via Broadcom 3908; RAID 0 1 5 6 10 50 60 support |
| Chipset | Intel C621A |
| Chassis Model | CSE-946LTS-R1K66P1 |
| SATA | SATA3 (6Gbps) via C621A Chipset; RAID 0 1 5 10 support |
| Depth | 26" (660mm) |
| Height | 7" (178mm) |
| Chassis Form Factor | 4U Rackmount |
