Product SKUs

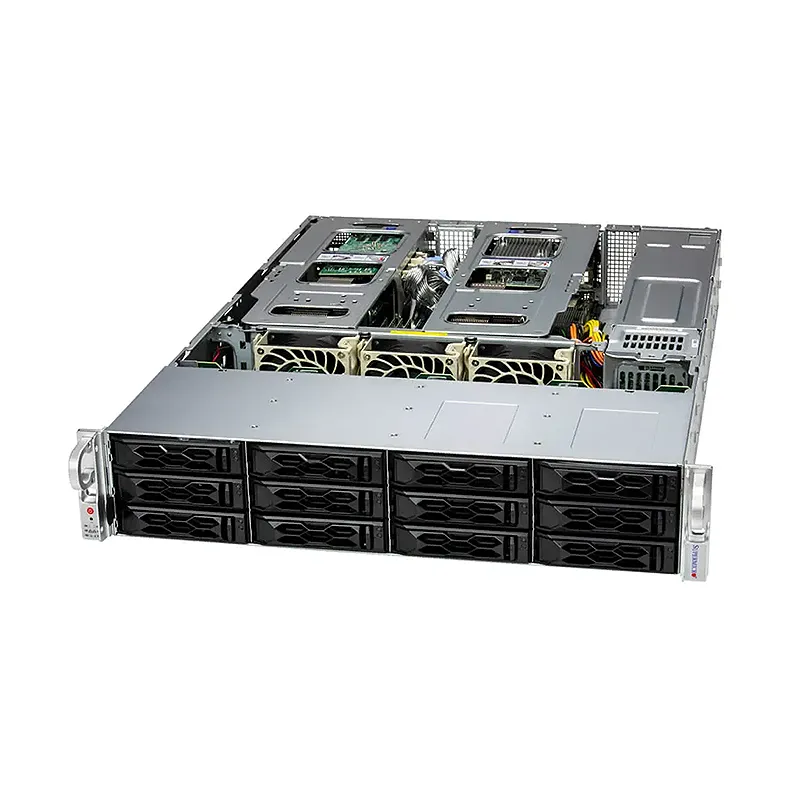

- SuperServerSYS-621C-TN12R
Motherboard
- Super X13DDW-A
Processor
- CPU
Dual Socket E (LGA-4677)
5th Gen Intel Xeon / 4th Gen Intel Xeon Scalable processors - Core Count
Up to 64C/128T; Up to 112.5MB Cache per CPU
GPU
- Max GPU Count
Up to 2 double-width or 6 single-width GPUs
- Supported GPU
NVIDIA PCIe: H100 NVL, H100, L40, RTX A6000, RTX A5000, RTX A4500, RTX A4000, L40S, L4, A2
Intel PCIe: Intel Data Center GPU Flex 140, Intel Data Center GPU Flex 170
System Memory
- Memory
Slot Count: 16 DIMM slots
Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM - Memory Voltage
1.1V
On-Board Devices
- SATA
SATA (6Gbps) ; RAID 0/1/5/10 support
- NVMe
NVMe; RAID 0/1/5/10 support(VROC HW key required)
- Chipset
Intel C741
- Network Connectivity
Via AIOM
Input / Output
- LAN
1 RJ45 1 GbE Dedicated BMC LAN port
- USB
2 USB 3.2 Gen1 Type-A ports(rear)
- Video
1 VGA port
- Serial
1 COM port(Rear)
- TPM
1 TPM header
System BIOS
- BIOS Type
AMI 32MB SPI FLASH ROM
Management
- Power configurations
ACPI/APM Power Management
Chassis
- Form Factor
2U Rackmount
- Model
CSE-LA26TS-R1K23AWP1
Dimensions and Weight
- Height
3.5″ (89 mm)
- Width
17.2″ (437 mm)
- Depth
25.5″ (648 mm)
- Package
11.4″ (H) x 26.7″ (W) x 34.5″ (D)
- Weight
Gross Weight: 59 lbs (26.76 kg)
Net Weight: 33 lbs (15 kg) - Available Color
Black front & sliver body
Front Panel
- LED
Drive activity
Network activity
Power status
Universal Information (UID) - Buttons
Power On/Off
Universal Information (UID)
Expansion Slots
- PCI-Express (PCIe) Configuration
Default 4 PCIe 5.0 x8 (in x16) FHFL double-width slots 2 PCIe 5.0 x16 FHHL slots 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
Option A 2 PCIe 5.0 x16 FHFL double-width slots 2 PCIe 5.0 x16 FHHL slots 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
Option B 4 PCIe 5.0 x16 FHFL double-width slots 2 PCIe 5.0 x16 FHHL slots 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible) - CXL Support
Up to 2 CXL 1.1 x16/x8 Type 2/Type 3 devices
Drive Bays / Storage
- Drive Bays Configuration
Default: Total 12 bays 12 front hot-swap 3.5″ NVMe*/SAS*/SATA* drive bays
Option A: Total 12 bays 12 front hot-swap 2.5″ NVMe*/SAS*/SATA* drive bays
(*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details) - M.2
2 M.2 PCIe 5.0 x4 NVMe slots (M-key 2280(default); VROC required for RAID)
System Cooling
- Fans
3x 8cm heavy duty fans with optimal fan speed control
- Air Shroud
1 Air Shroud
Power Supply
- 2x 1200W
2x 1200W Redundant Titanium Level (96%) Hot-plug power supplies
Dimension (WxHxL)
76 x 40 x 336 mm
Input
1000W: 100-127Vac
1000W: 100-127Vac / 50-60Hz
1200W: 200-240Vac
1200W: 200-240Vac / 50-60Hz
1200W: 200-240Vdc / 50-60Hz (for CCC only)
+12V
Max: 83A / Min: 0A (100Vac-127Vac)
Max: 100A / Min: 0A (200Vdc-240Vdc)
Max: 100A / Min: 0A (200Vac-240Vac)
5V SB
Max: 4A / Min: 0A
Output Type
Backplanes (gold finger)
