Supermicro SYS-7049P-TR

$Quote1 Pieces ( MOQ )

SKU SYS-7049P-TR Category Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

Submit Inquiry

Buy more, save more. Contact us for exclusive discounts!

Product SKUs

SYS-7049P-TR

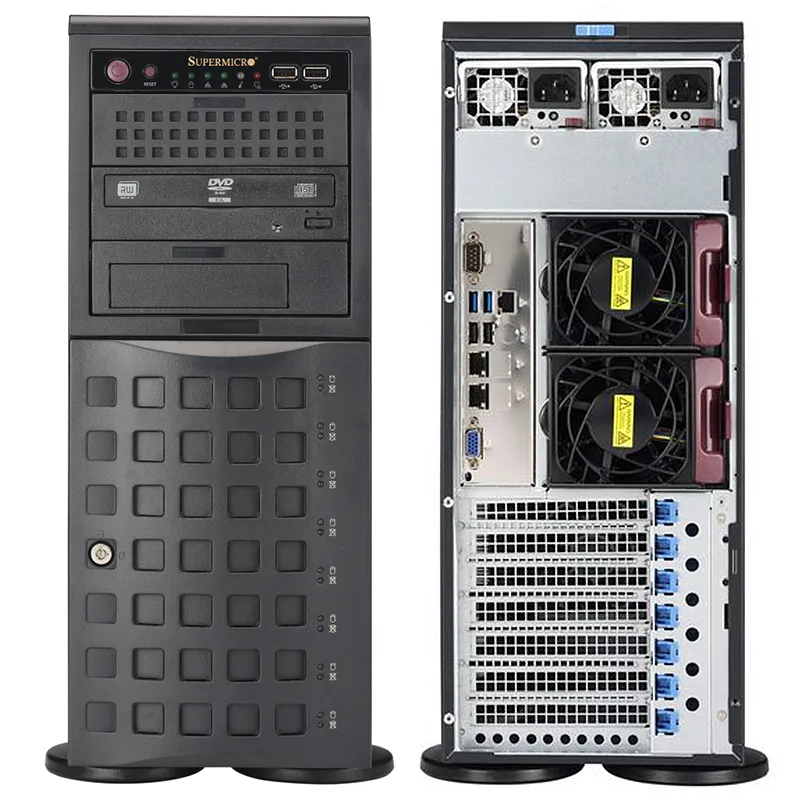

  • SuperServer 7049P-TR (Black)

Motherboard

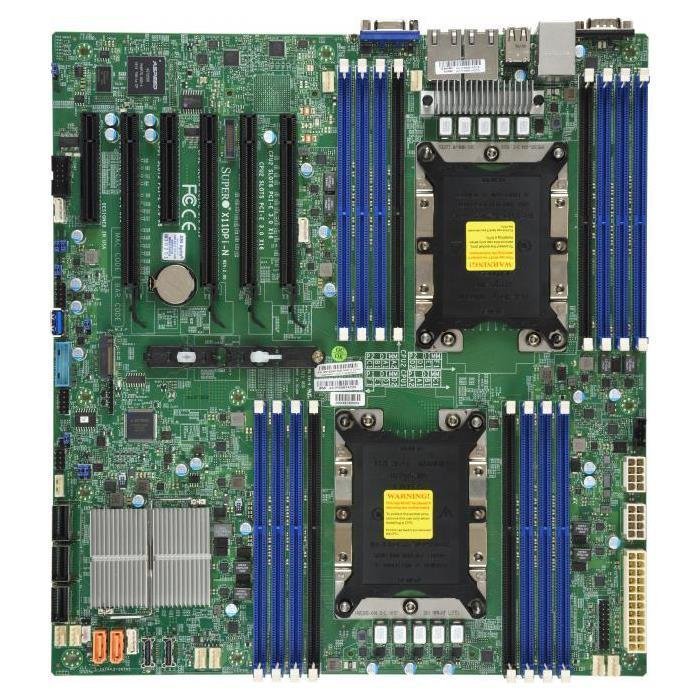

Super X11DPi-N

Processor

CPU
  • Dual Socket P (LGA 3647)
  • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors,
    Dual UPI up to 10.4GT/s
  • Support CPU TDP 70-205W
Cores
  • Up to 28 Cores
Note  BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)
* CPU SKUs not supported: Gold 6256 and Gold 6250(L) (L = increased memory capacity per socket), Gold 6233W and Gold 5216W

System Memory

Memory Capacity
  • 16 DIMM slots
  • Up to 4TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM††
Memory Type
  • 2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
Note  2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
†† Cascade Lake only. Contact your Supermicro sales rep for more info.

On-Board Devices

Chipset
  • Intel® C621 chipset
SATA
  • SATA3 (6Gbps); RAID 0, 1, 5, 10
Network Controllers
  • Dual 1GbE LAN with Intel® X722
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Video
  • ASPEED AST2500 BMC

Input / Output

SATA
  • 8 SATA3 (6Gbps) ports
LAN
  • 2 RJ45 Gigabit Ethernet LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • Rear USB: 2 USB 3.0 + 2 USB 2.0
  • Front USB: 2 USB 3.0
  • USB Header: 1 Type A
Video
  • 1 VGA port
Serial Port / Header
  • 2 Fast UART 16550 serial
  • 2 COM Ports (1 rear, 1 header)
DOM
  • 2 SuperDOM (Disk on Module) ports

System BIOS

BIOS Type
  • AMI UEFI

Management

Software
  • Intel® Node Manager
  • IPMI 2.0
  • KVM with dedicated LAN
  • NMI
  • SSM, SPM, SUM
  • SuperDoctor® 5
Power Configurations
  • ACPI Power Management

PC Health Monitoring

CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
