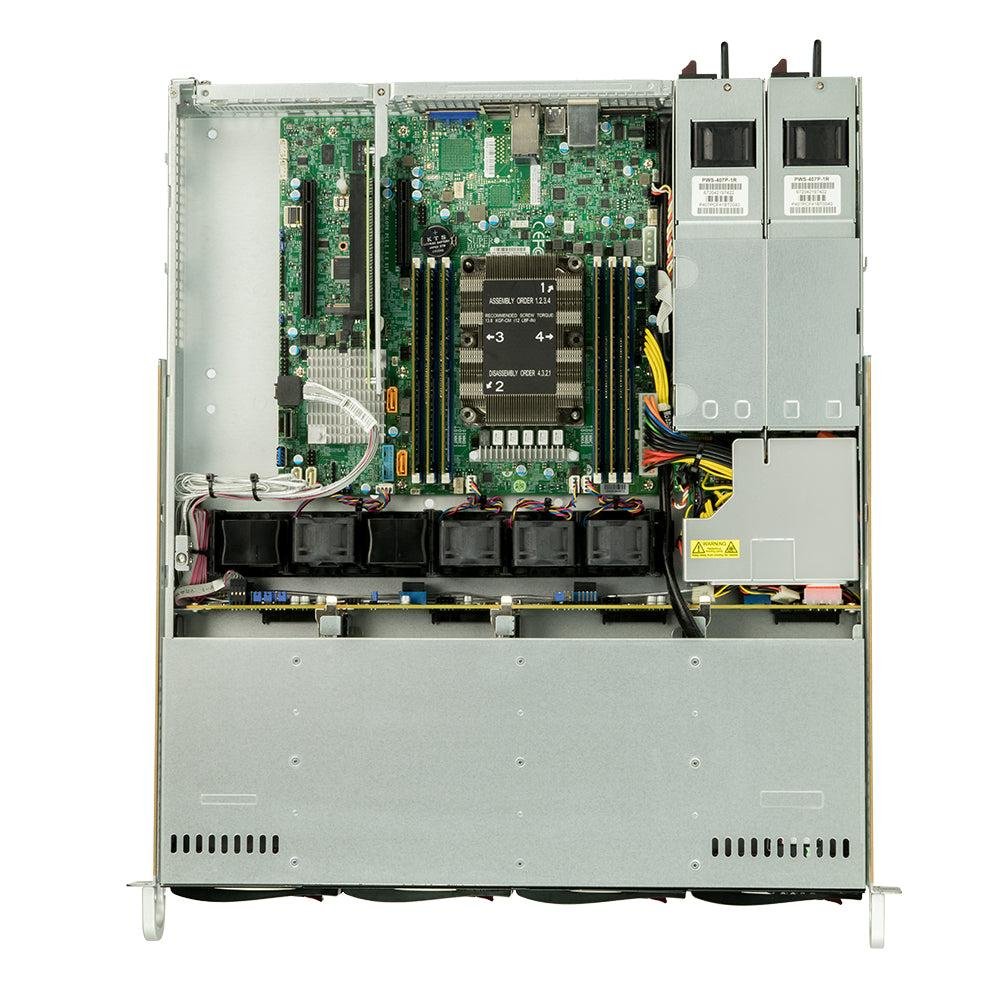

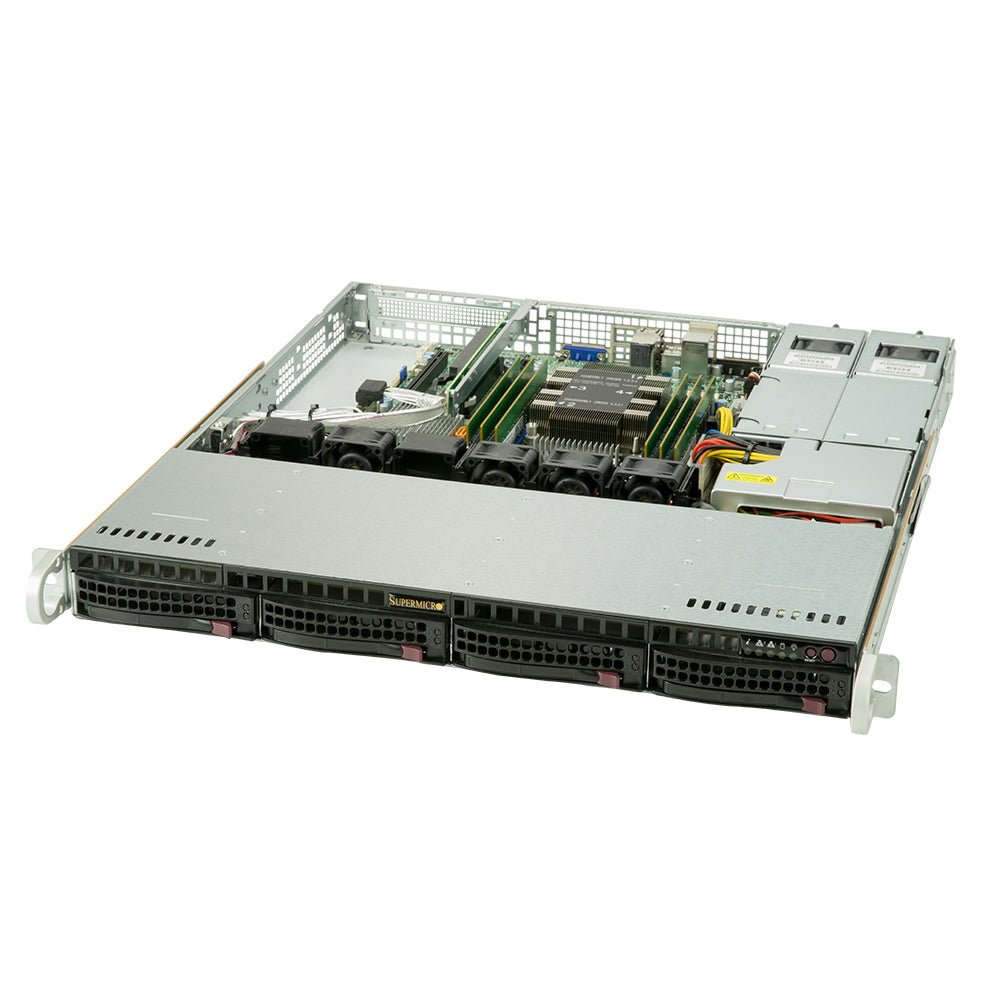

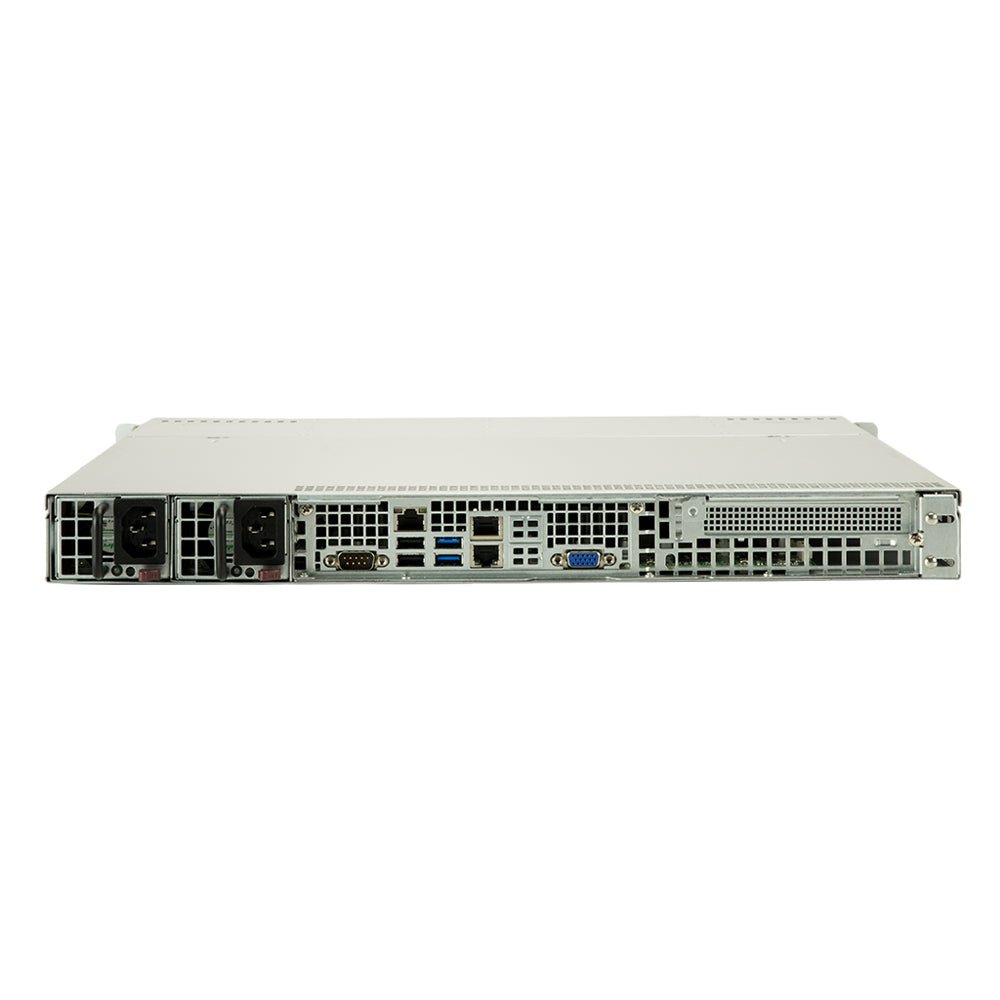

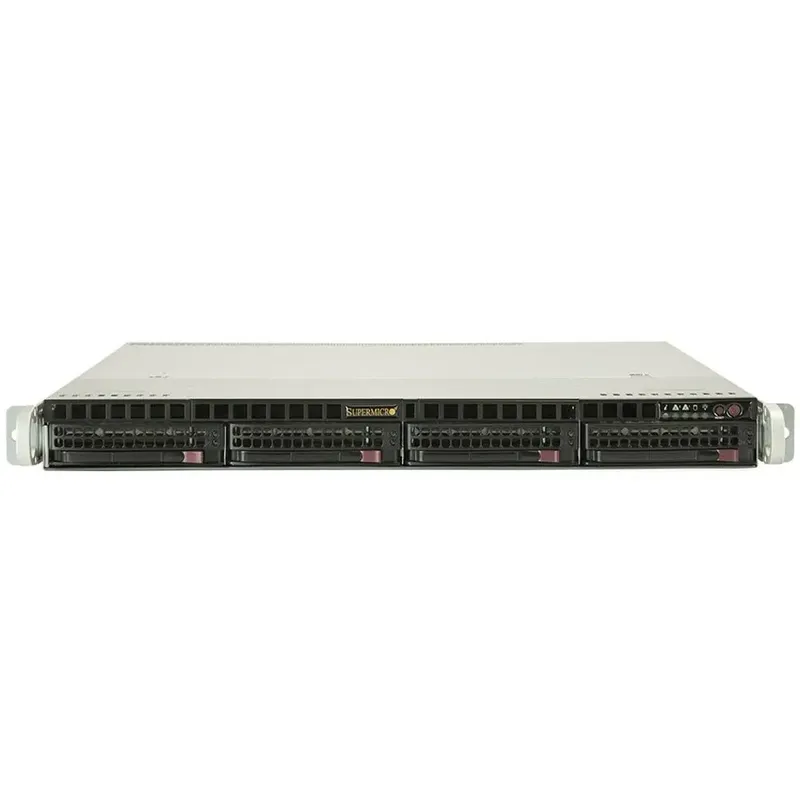

Supermicro SYS-5019P-MR

$Quote1 Pieces ( MOQ )

SKU SYS-5019P-MR Category Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

Submit Inquiry

Buy more, save more. Contact us for exclusive discounts!

Click or drag files to this area to upload. You can upload up to 3 files.
.doc, .xls, .pdf, .png, .jpg, .xlsx, .csv formats only
Product SKUs

SYS-5019P-MR
  • SuperServer 5019P-MR (Black)

Motherboard


Super X11SPM-F

Processor

CPU
  • Single Socket P (LGA 3647)
  • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors
  • Support CPU TDP 70-165W
Cores
  • Up to 28 Cores
Note  BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R).

Extended thermal solutions may be required to support CPUs higher than 165W TDP, please contact Supermicro Technical Support for additional information.

System Memory

Memory Capacity
  • 6 DIMM slots
  • Up to 1.5TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
Memory Type
  • 2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
Note  2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro

On-Board Devices

Chipset
  • Intel® C621 chipset
SATA
  • SATA3 (6Gbps) via C621 controller
  • RAID 0, 1, 5, 10 support
Network Controllers
  • Dual Gigabit Ethernet LAN with Marvell® 88E1512
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Video
  • ASPEED AST2500 BMC

Input / Output

SATA
  • 12 SATA3 (6Gbps) ports
LAN
  • 2 RJ45 1GbE LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 5 USB 3.0 ports (2 rear + 2 headers + 1 Type A)
  • 6 USB 2.0 ports (2 rear + 4 headers)
Video
  • 1 VGA port
Serial Port / Header
  • 2 COM ports (1 rear, 1 header)
SuperDOM
  • 2 SuperDOM (Disk on Module) ports with built-in power

System BIOS

BIOS Type
  • AMI UEFI

Management

Software
  • Intel® Node Manager
  • IPMI 2.0
  • KVM with dedicated LAN
  • NMI
  • SPM, SUM
  • SuperDoctor® 5
  • Watch Dog
Power Configurations
  • ACPI Power Management

PC Health Monitoring

CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
