Supermicro SYS-210P-FRDN6T

$Quote1 Pieces ( MOQ )

SKU SYS-210P-FRDN6T Category Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

Submit Inquiry

Buy more, save more. Contact us for exclusive discounts!

Product SKUs

SYS-210P-FRDN6T

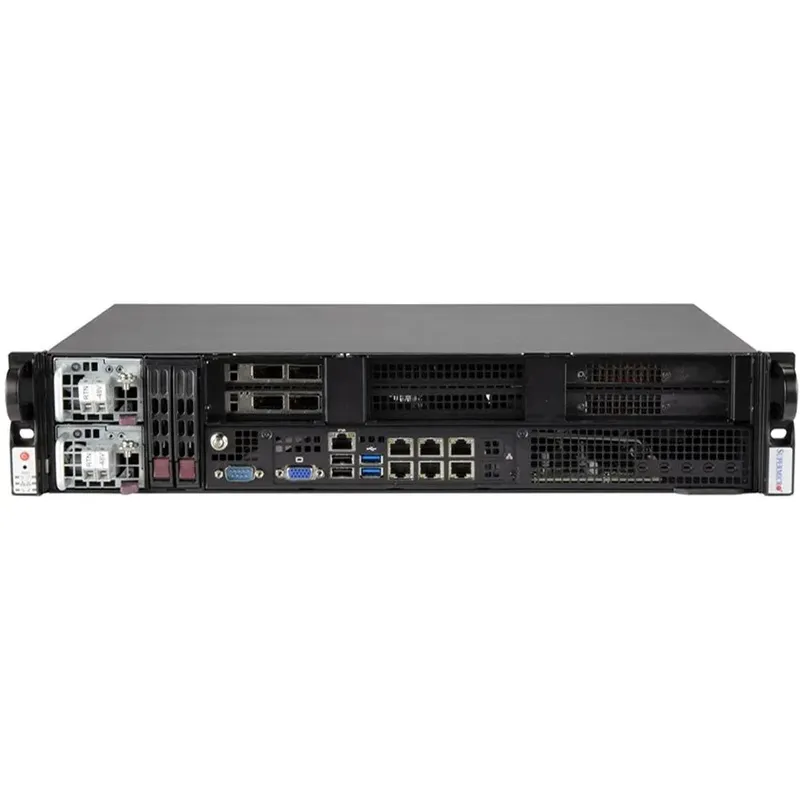

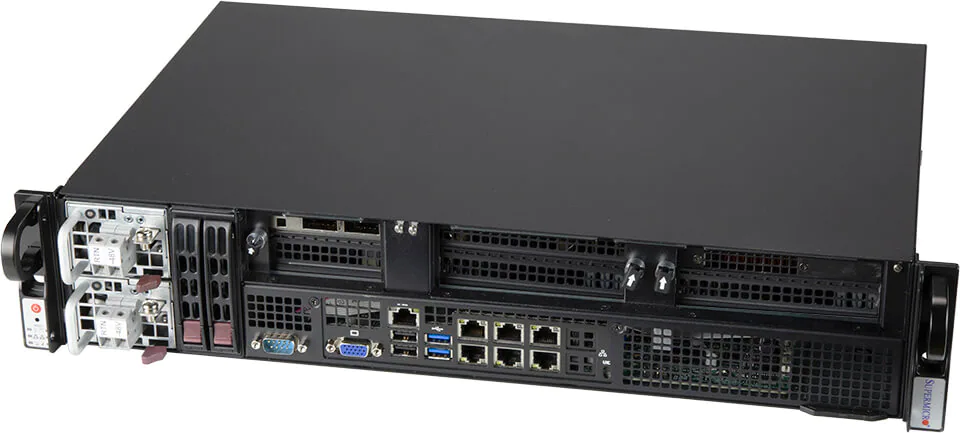

  • SuperServer SYS-210P-FRDN6T (Silver/Black)

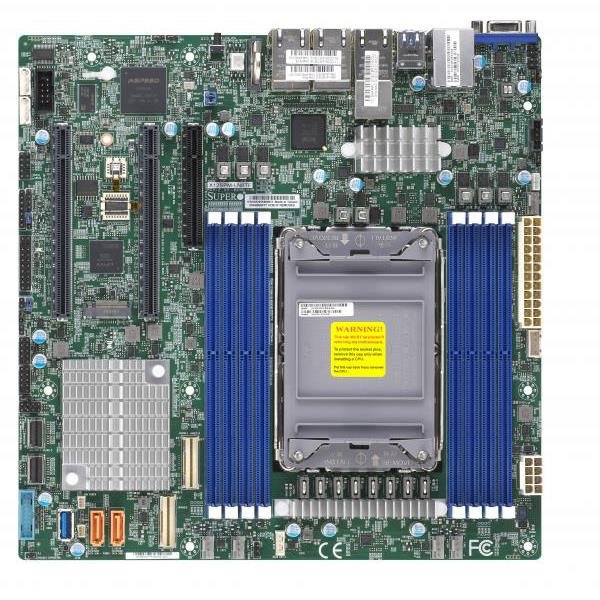

Motherboard



Super X12SPM-LN6TF

Processor

CPU
  • Single Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
  • Support CPU TDP 85-270W
  • Please contact Supermicro Technical Support for supporting conditions of high power (TDP >205W) processors.
Cores
  • Up to 36C/72T; Up to 60MB Cache

System Memory

Memory
  • Memory Capacity: 8 DIMM slots
  • Memory Type: 3200MHz ECC DDR4 RDIMM/LRDIMM
Memory Voltage
  • 1.2 V
Error Detection
  • ECC

On-Board Devices

SATA
  • SATA3 (6Gbps); RAID 0/1 support
Chipset
  • Intel® C621A
Network Connectivity
  • 2x 1/10GbE port(s); 4x 1GbE port(s)
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

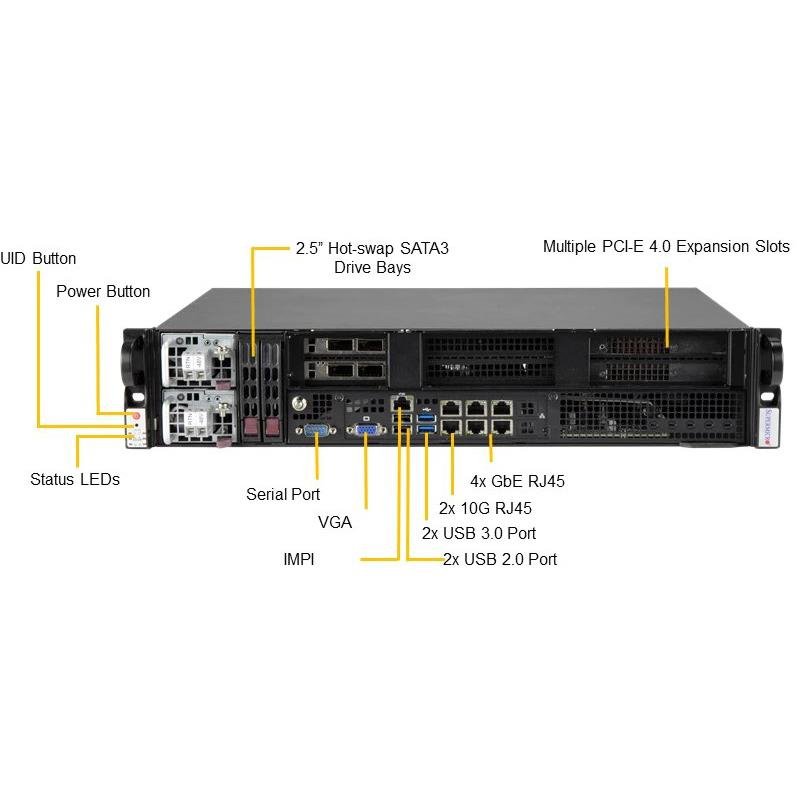

Input / Output

USB
  • 2 USB 2.0 port(s) (2 front)
  • 2 USB 3.0 port(s) (2 front)
Video
  • 1 VGA port(s)
Serial Port
  • 1 COM Port(s) (1 rear)

Management

Software
  • SUM
  • SSM
  • Redfish API
  • IPMI 2.0
  • Intel® Node Manager
  • SPM
  • KVM with dedicated LAN
  • NMI
  • Watch Dog
  • SuperDoctor® 5
Power Configurations
  • ACPI Power Management

PC Health Monitoring

CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory

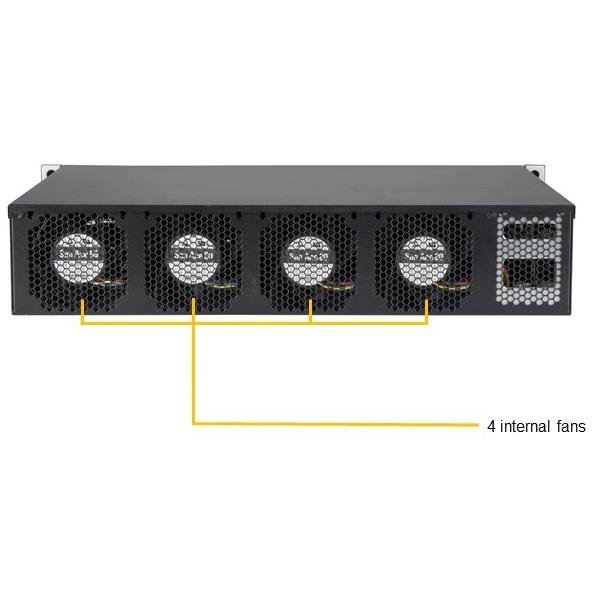

FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • CPU thermal trip support, PEPI
  • Monitoring for CPU and chassis environment
