Supermicro SYS-210P-FRDN6T

**Supermicro SYS-210P-FRDN6T**: A high-performance 2U rackmount server designed for data-intensive workloads. Features dual 3rd Gen Intel Xeon Scalable processors (up to 270W TDP) for exceptional compute power, 16 DDR4-3200 DIMM slots (up to 4TB RAM), and six front-accessible 2.5″ NVMe U.2 hot-swap bays for ultra-fast storage. Includes dual 10G LAN ports, OCP 3.0 slots for flexible networking, and redundant 1600W Platinum PSUs for reliability. Optimized thermal design ensures efficient cooling in dense environments. Ideal for AI, cloud, HPC, and analytics, its USP lies in combining massive NVMe storage density, scalable processing, and enterprise-grade resilience in a compact form.

$Quote1 Piece(MOQ)

SKU SYS-210P-FRDN6T Categories , , , , Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:
Product SKUs

SYS-210P-FRDN6T
  • SuperServer SYS-210P-FRDN6T (Silver/Black)

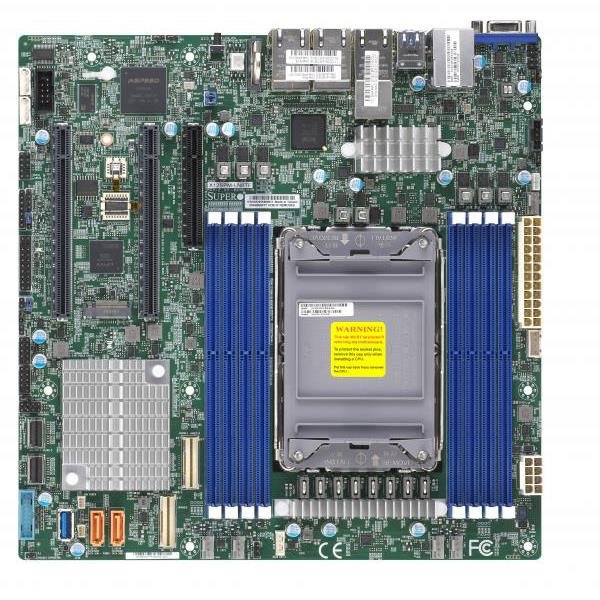

Motherboard



Super X12SPM-LN6TF

Processor

CPU
  • Single Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
  • Support CPU TDP 85-270W
  • Please contact Supermicro Technical Support for supporting conditions of high power (TDP >205W) processors.
Cores
  • Up to 36C/72T; Up to 60MB Cache

System Memory

Memory
  • Memory Capacity: 8 DIMM slots
  • Memory Type: 3200MHz ECC DDR4 RDIMM/LRDIMM
Memory Voltage
  • 1.2 V
Error Detection
  • ECC

On-Board Devices

SATA
  • SATA3 (6Gbps); RAID 0/1 support
Chipset
  • Intel® C621A
Network Connectivity
  • 2x 1/10GbE port(s); 4x 1GbE port(s)
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

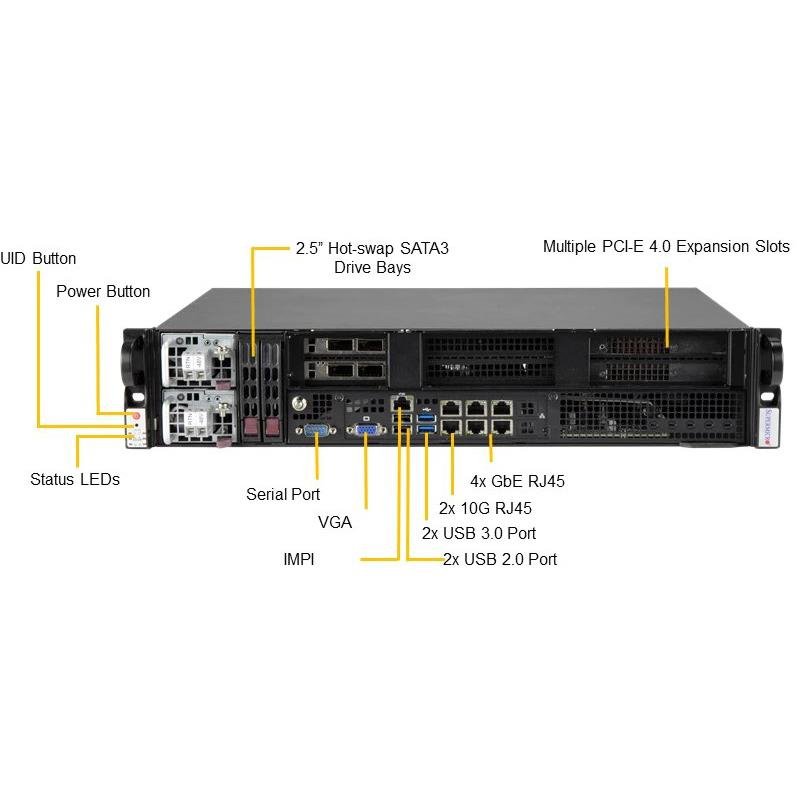

Input / Output

USB
  • 2 USB 2.0 port(s) (2 front)
  • 2 USB 3.0 port(s) (2 front)
Video
  • 1 VGA port(s)
Serial Port
  • 1 COM Port(s) (1 rear)

Management

Software
  • SUM
  • SSM
  • Redfish API
  • IPMI 2.0
  • Intel® Node Manager
  • SPM
  • KVM with dedicated LAN
  • NMI
  • Watch Dog
  • SuperDoctor® 5
Power Configurations
  • ACPI Power Management

PC Health Monitoring

CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory

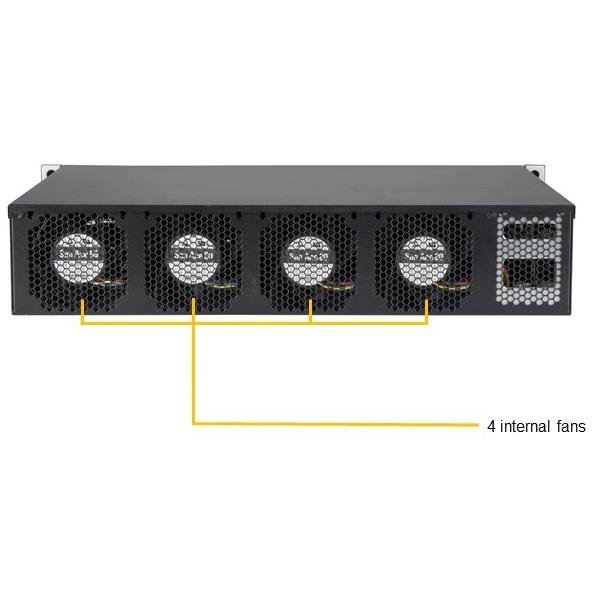

FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • CPU thermal trip support, PEPI
  • Monitoring for CPU and chassis environment
Brand

Supermicro
Products Status

New
Product SKUs

SYS-210P-FRDN6T
Form Factors
