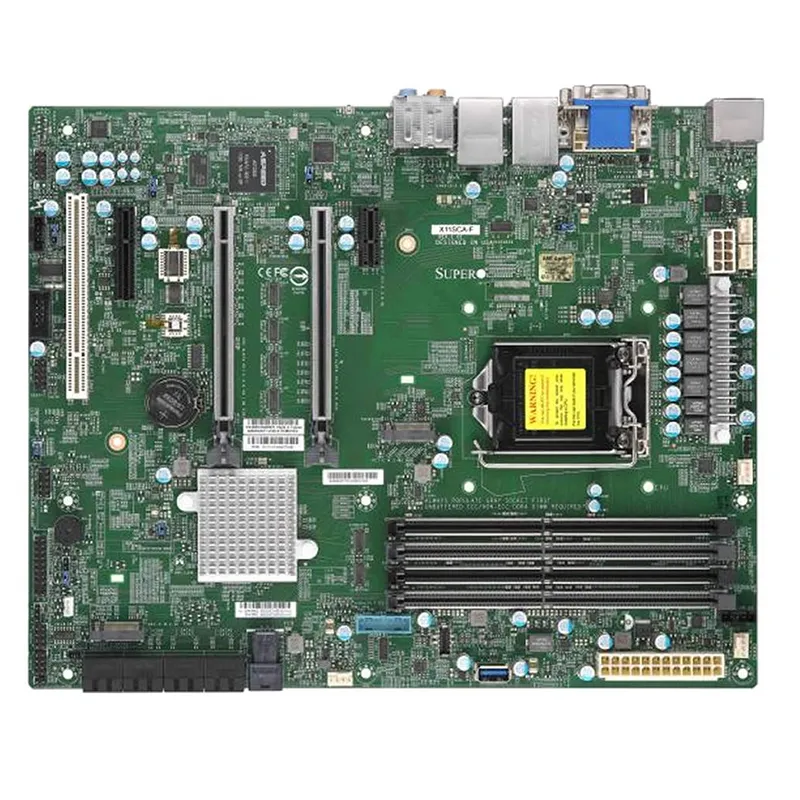

Supermicro Motherboard MBD-X11SCA-FO Core i3 S1151 C246 PCIe SATA ATX Motherboard

**Supermicro MBD-X11SCA-FO ATX Motherboard**
Built for reliability and scalability, this server-grade motherboard features an Intel C246 chipset and supports 8th/9th Gen Intel Core i3 and Xeon E-2100 processors (LGA 1151). Key highlights include ECC memory compatibility for error-free data processing, dual Gigabit LAN with IPMI for remote management, and six SATA3 ports for expansive storage. PCIe 3.0 slots enable GPU or NVMe upgrades, while the ATX design ensures broad chassis compatibility. Ideal for SMBs, NAS, or entry-level workstations, it delivers enterprise-level durability, 24/7 operation readiness, and flexible expansion in a cost-effective package.

$Quote1 Piece(MOQ)

100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

Product SKUs

  • MBD-X11SCA-F

Physical Stats

  • Form Factor
    ATX
  • Dimension
    12″ x 9.6″ (30.48cm x 24.38cm)

Processor

  • CPU
    Intel Xeon E-2100 Processor, Intel Xeon E-2200 Processor, 8th/9th Generation Intel Core i9/Core i7/Core i5/Core i3/Pentium/Celeron Processor
    Single Socket Socket H4 (LGA-1151) supported, CPU TDP supports Up to 95W TDP

System Memory

  • Memory Capacity
    4 DIMM slots
    Up to 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2666MT/s
  • Memory Type
    2666/2400/2133/1866/1600 MT/s SDRAM 72-bit, 288-pin
  • DIMM Sizes
    2GB, 4GB, 8GB, 16GB, 32GB
  • Memory Voltage
    1.2V

On-Board Devices

  • Chipset
    Intel C246
  • SATA
    Intel C246 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  • IPMI
    ASPEED AST2500
  • Audio
    ALC 888S HD Audio
  • Graphics
    1 ASPEED AST2500 BMC port(s)
  • Network Controllers
    Single LAN with Intel PHY I219LM LAN controller
    Single LAN with Intel Ethernet Controller I210-AT, Shared with IPMI

Input / Output

  • LAN
    2 1GbE LAN ports
  • USB
    2 USB 2.0 port(s) (2 via header)
    4 USB 3.1 Gen1 port(s) (2 via header; 2 rear type A)
    4 USB 3.1 Gen2 port(s) (1 via header; 1 rear type C; 1 type A; 1 rear type A)
  • Video Output
    1 VGA port(s), 1 DP (DisplayPort) port(s), 1 HDMI port(s), 1 DVI – D port(s)
  • Serial Port
    1 COM Port(s) (1 header)
  • DOM
    1 SATA DOM (Disk on Module) power connector support
  • TPM
    1 TPM Header

Expansion Slots

  • PCIe
    1 PCIe 3.0 x4,
    1 PCIe 3.0 x1,
    2 PCIex16 slots are running at NA/16, or 8/8
    1 – 5V PCI 32bit
  • M.2
    M.2 Interface: 2 PCIe 3.0 x4
    Form Factor: 2242/2260/2280/22110
    Key: M-Key

System BIOS

  • BIOS Type
    128MB UEFI

Management

  • System Management Software
    SuperDoctor 5, IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
  • Power Configurations
    Power-on mode for AC power recovery, ACPI Power Management, ATX Power connector, Keyboard Wakeup from Soft-Off
Size

30.48cmx24.38cm

USB Ports

4 USB 3.1 Gen1 ports 2 via header; 2 rear type A 4 USB 3.1 Gen2 ports 1 via header; 1 rear type C; 1 type A; 1 rear type A 2 USB 2.0 ports 2 via header

Product Name

Suermicro MBD-X11SCA-F

Application

Server

Brand

Supermicro

Packaging Details

Bulk

Chipset

Intel C246

CPU Socket Type

Intel LGA1151

Memory

Up to 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots

Form Factors

ATX

Warranty

1 Year

Internal I/O Connectors

1 PCI-E 3.0 x4, 1 PCI-E 3.0 x1, 2 PCI-Ex16 slots are running at NA/16, or 8/8 1 – 5V PCI 32bit M.2 Interface: 2 PCI-E 3.0 x4 M.2 Form Factors: 2242/2260/2280/22110 M.2 Key: M-Key M.2#1 is shared with PCI-Ex4 slot, M.2#2 is shared with U.2 U.2 Interface: 1 PCI-E 3.0 x4

Platform

Intel

Products Status

New

Socket

LGA1151(Socket H4)

Back I/O Ports

1 HDMI port, 1 DVI – D port, 1 DDisplayPort port, 1 VGA port, Intel UHD P630 graphicFor Xeon E-21xxG/E-22xxG only

Form Factor

ATX
