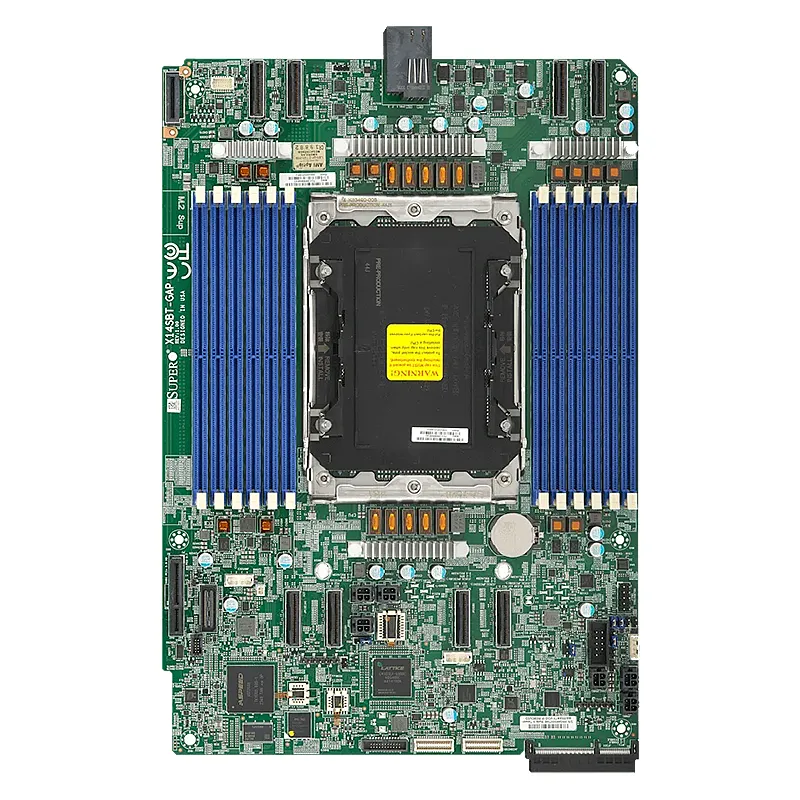

Supermicro MBD-X14SBT-GAP

Product SKUs

MBD-X14SBT-GAP

Physical Stats

Form Factor
Proprietary
Dimension
8.53″ x 12.42″ (21.67cm x 31.55cm)

Processor

CPU
Intel Xeon 6900-series processors with P-cores
Single Socket BR (LGA-7529) supported, CPU TDP supports Up to 500W TDP
Core
Up to 128 (P) cores

System Memory

Memory Capacity
12 DIMM slots
Up to 3TB ECC Registered MRDIMM, DDR5-8800MT/s; Up to 3TB 3DS ECC Registered RDIMM, DDR5-6400MT/s
Memory Type
8800 MT/s ECC DDR5 MRDIMM, RDIMM (3DS) Up to 256GB of memory with speeds of up to 8800 MT/s (MRDIMM 1DPC) or 6400 MT/s (RDIMM 1DPC)
DIMM Sizes
32GB, 64GB, 128GB, 256GB
MRDIMM: 32GB, 48GB, 64GB, 96GB, 128GB, 256GB
RDIMM: 32GB, 48GB, 64GB, 96GB, 128GB, 256GB
Memory Voltage
1.1V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)

On-Board Devices

Chipset
System on Chip
IPMI
ASPEED AST2600 BMC
Network Controllers
AIOM for LAN

Input / Output

Serial Port
1 COM Port(s) (1 header)
TPM
1 TPM Header

Expansion Slots

PCIe
8 PCIe 5.0 x8 MCIO connector,
1 PCIe 5.0 x8 4C customized 124-pin slim cool edge connector, Support GrandTwin Front IO module,
1 PCIe 5.0 x8 GENZ 2C connector, Support 2x M.2 (2280,22110) via proprietary M.2 adapter
M.2
M.2 Interface: 2 PCIe 5.0 x8, RAID 0 & 1
Form Factor: 2280/22110
Key: M-Key
M.2 support requires an optional M.2 adapter card

System BIOS

BIOS Type
AMI 64MB AMI UEFI
BIOS Features
ACPI 6.5
SMBIOS 3.7 or later
UEFI 2.9

BIOS Features	ACPI 6.5SMBIOS 3.7 or laterUEFI 2.9
TPM	1 TPM Header
Network Controllers	AIOM for LAN
M.2	M.2 Interface: 2 PCIe 5.0 x8, RAID 0 & 1Form Factor: 2280/22110Key: M-Key
Chipset	System on Chip
DIMM Sizes	128GB, 256GB, 256GBMRDIMM: 32GB, 256GBRDIMM: 32GB, 32GB, 48GB, 64GB, 96GB
BIOS Type	AMI 64MB AMI UEFI
Dimension	8.53" x 12.42" (21.67cm x 31.55cm)
PCIe	1 PCIe 5.0 x8 4C customized 124-pin slim cool edge connector, 1 PCIe 5.0 x8 GENZ 2C connector, 22110) via proprietary M.2 adapter, 8 PCIe 5.0 x8 MCIO connector, Support 2x M.2 (2280, Support GrandTwin Front IO module
Form Factor	Proprietary
Memory Type	8800 MT/s ECC DDR5 MRDIMM, RDIMM (3DS) Up to 256GB of memory with speeds of up to 8800 MT/s (MRDIMM 1DPC) or 6400 MT/s (RDIMM 1DPC)
Application	Server
IPMI	ASPEED AST2600 BMC
Memory Voltage	1.1V
CPU	CPU TDP supports Up to 500W TDP, Intel Xeon 6900-series processors with P-coresSingle Socket BR (LGA-7529) supported
Serial Port	1 COM Port(s) (1 header)
Memory Capacity	12 DIMM slotsUp to 3TB ECC Registered MRDIMM, DDR5-6400MT/s, DDR5-8800MT/s; Up to 3TB 3DS ECC Registered RDIMM
Error Detection	Corrects single-bit errorsDetects double-bit errors (using ECC memory)
Core	Up to 128 (P) cores
