Product SKUs

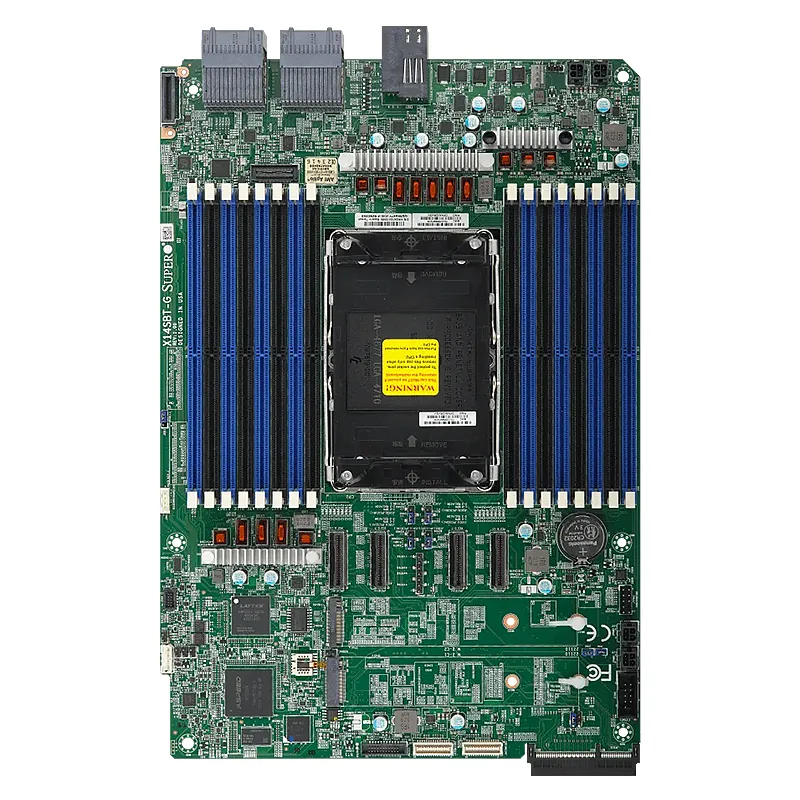

- MBD-X14SBT-G
Physical Stats
- Form Factor
Proprietary
- Dimension
8.53″ x 12.42″ (21.67cm x 31.55cm)
Processor
- CPU
Intel Xeon 6700-series processors with E-cores
Single Socket E2 (LGA-4710) supported, CPU TDP supports Up to 350W TDP - Core
Up to 144 (E) cores
System Memory
- Memory Capacity
16 DIMM slots
Up to 2TB ECC Registered RDIMM, DDR5-6400MT/s - Memory Type
6400 MT/s ECC DDR5 RDIMM Up to 128GB of memory with speeds of up to 6400 MT/s(1DPC) or 5200 MT/s (2DPC)
- DIMM Sizes
32GB, 64GB, 96GB, 128GB
- Memory Voltage
1.1V
- Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
- Chipset
System on Chip
- IPMI
ASPEED AST2600 BMC
- Network Controllers
AIOM for LAN
Input / Output
- Serial Port
1 COM Port(s) (1 header)
- TPM
1 TPM Header
Expansion Slots
- PCIe
4 PCIe 5.0 x8 MCIO connector,
2 PCIe 5.0 x16 PCIe 5.0 via Molex Impleplus connectors, Support up to two X16 PCIe 5.0 AIOM,
1 PCIe 5.0 x8 PCIe5.0 4C customized 124-pin slim cool edge connector, Support GrandTwin Front IO module - M.2
M.2 Interface: 2 PCIe 5.0 x4
Form Factor: 2280/22110
Key: M-Key
System BIOS
- BIOS Type
AMI 64MB AMI UEFI
- BIOS Features
ACPI 6.5
SMBIOS 3.7 or later
UEFI 2.9
