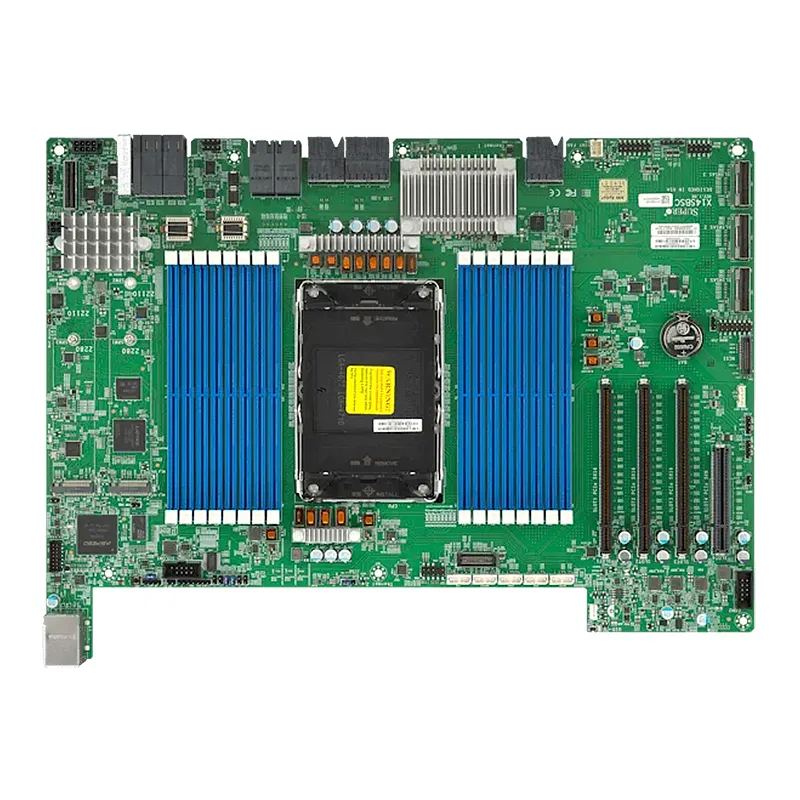

Supermicro MBD-X14SBSC

Designed for next-gen Intel Xeon Scalable processors (5th Gen Emerald Rapids), this motherboard delivers enterprise-grade performance with DDR5 memory support (16 DIMMs), PCIe 5.0 expansion (up to 80 lanes), and dual 10G LAN + OCP 3.0 slots for flexible networking. Optimized for AI, cloud, and storage workloads, it features NVMe/SATA3 storage scalability, IPMI remote management, and redundant power support. Key benefits include energy efficiency, robust security (TPM 2.0), and seamless integration into 1U/2U data center environments, ensuring reliability and reduced TCO for high-demand applications.

Read More

$Quote1 Piece(MOQ)

100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

Product SKUs

  • MBD-X14SBSC

Physical Stats

  • Form Factor
    Proprietary
  • Dimension
    14.83″ x 10.35″ (37.66cm x 26.29cm)

Processor

  • CPU
    Intel Xeon 6700-series processors with E-cores
    Single Socket E2 (LGA-4710) supported, CPU TDP supports Up to 350W TDP
  • Core
    Up to 144 (E) cores

System Memory

  • Memory Capacity
    16 DIMM slots
    Up to 2TB ECC Registered RDIMM, DDR5-6400MT/s
  • Memory Type
    6400 MT/s ECC DDR5 RDIMM Up to 128GB of memory with speeds of up to 6400 MT/s(1DPC) or 5200 MT/s (2DPC)
  • DIMM Sizes
    32GB, 64GB, 96GB, 128GB
  • Memory Voltage
    1.1V
  • Error Detection
    Corrects single-bit errors
    Detects double-bit errors (using ECC memory)

On-Board Devices

  • Chipset
    System on Chip
  • IPMI
    ASPEED AST2600 BMC
  • Network Controllers

Input / Output

  • Video Output
    1 VGA D-Sub Connector port(s)
  • Serial Port
    1 COM Port(s) (1 header)
  • TPM
    1 TPM Header
    1 TPM TPM 2.0 onboard

Expansion Slots

  • PCIe
    1 PCIe 5.0 x8,
    3 PCIe 5.0 x16
  • M.2
    M.2 Interface: 2 PCIe 4.0 x2, RAID 0 & 1
    Form Factor: 2280/22110
    Key: M-Key

System BIOS

  • BIOS Type
    AMI 64MB AMI UEFI
  • BIOS Features
    ACPI 6.5
    SMBIOS 3.7 or later
    UEFI 2.9
BIOS Features ACPI 6.5SMBIOS 3.7 or laterUEFI 2.9
TPM 1 TPM Header1 TPM TPM 2.0 onboard
M.2 M.2 Interface: 2 PCIe 4.0 x2, RAID 0 & 1Form Factor: 2280/22110Key: M-Key
Chipset System on Chip
DIMM Sizes 128GB, 32GB, 64GB, 96GB
BIOS Type AMI 64MB AMI UEFI
Video Output 1 VGA D-Sub Connector port(s)
Dimension 14.83" x 10.35" (37.66cm x 26.29cm)
PCIe 1 PCIe 5.0 x8, 3 PCIe 5.0 x16
Form Factor Proprietary
Memory Type 6400 MT/s ECC DDR5 RDIMM Up to 128GB of memory with speeds of up to 6400 MT/s(1DPC) or 5200 MT/s (2DPC)
Application Server
IPMI ASPEED AST2600 BMC
Memory Voltage 1.1V
CPU CPU TDP supports Up to 350W TDP, Intel Xeon 6700-series processors with E-coresSingle Socket E2 (LGA-4710) supported
Serial Port 1 COM Port(s) (1 header)
Memory Capacity 16 DIMM slotsUp to 2TB ECC Registered RDIMM, DDR5-6400MT/s
Error Detection Corrects single-bit errorsDetects double-bit errors (using ECC memory)
Core Up to 144 (E) cores
