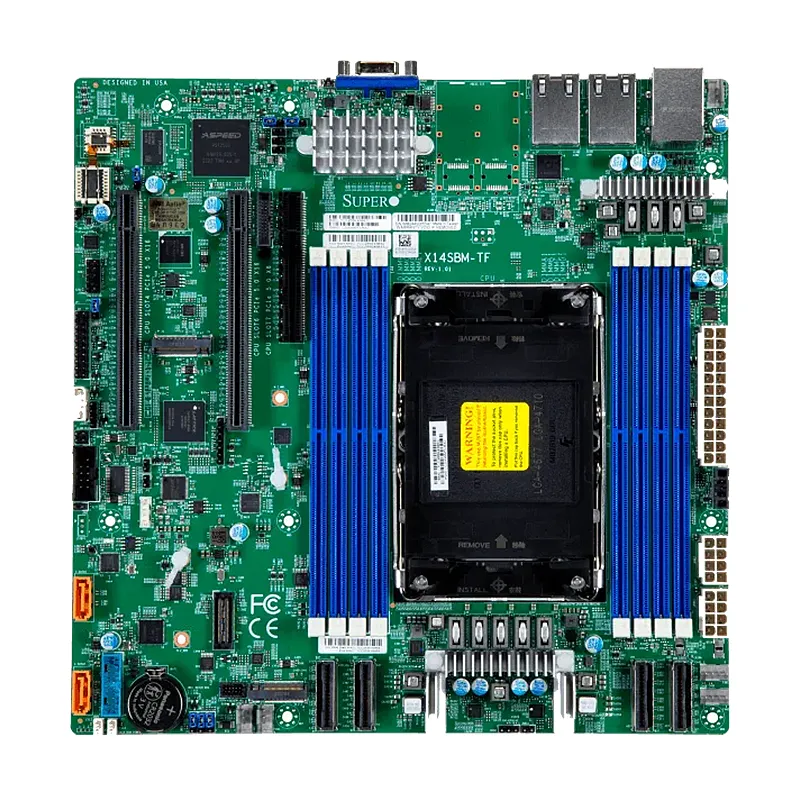

* NOTE: Image may not exactly match the product

Supermicro MBD-X14SBM-TF

**Supermicro MBD-X14SBM-TF: High-Performance Server Motherboard**
Built for 4th Gen Intel® Xeon® Scalable (Sapphire Rapids) processors, this Micro-ATX server motherboard delivers enterprise-grade performance and scalability. Key features include:
– **16x DDR5 DIMMs** (up to 4TB, 4800MHz) for blazing-fast memory throughput.
– **PCIe 5.0** expansion (3x x16 slots) and **OCP 3.0** support for future-proof networking/storage.
– Dual **10G LAN ports** (Intel® X550) and **IPMI 2.0** for remote management.
– **Triple M.2 NVMe** slots, SATA III, and hardware RAID for flexible storage.
– **TPM 2.0** security, redundant power support, and optimized thermal design.

**Ideal for** data centers, AI/ML, HPC, and cloud workloads, it combines cutting-edge I/O, robust reliability, and scalable architecture in a compact form factor.

$Quote5 pcs (MOQ) Minimum Order Quantity

SKU MBD-X14SBM-TF Categories , , Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

Product SKUs

  • MBD-X14SBM-TF

Physical Stats

  • Form Factor
    microATX
  • Dimension
    9.6″ x 9.6″ (24.38cm x 24.38cm)

Processor

  • CPU
    Intel Xeon 6700-series processors with E-cores
    Single Socket E2 (LGA-4710) supported, CPU TDP supports Up to 350W TDP
  • Core
    Up to 144 (E) cores

System Memory

  • Memory Capacity
    8 DIMM slots
    Up to 1TB ECC Registered RDIMM, DDR5-6400MT/s
  • Memory Type
    6400 MT/s ECC DDR5 RDIMM Up to 128GB of memory with speeds of up to 6400 MT/s(1DPC)
  • DIMM Sizes
    32GB, 64GB, 96GB, 128GB
  • Memory Voltage
    1.1V
  • Error Detection
    Corrects single-bit errors
    Detects double-bit errors (using ECC memory)

On-Board Devices

  • Chipset
    System on Chip
  • SATA
    ASMediaASM1061 controller for 2 SATA3 ports
  • IPMI
    ASPEED AST2600 BMC
  • Network Controllers
    Dual LAN with 10GBase-T with Intel X710-AT2

Input / Output

  • SATA
    2 SATA3 port(s)
  • LAN
    2 RJ45 10 Gigabit Ethernet LAN ports
    1 RJ45 Dedicated IPMI LAN port
  • USB
    4 USB 3.2 Gen1 port(s) (2 via header; 2 rear)
  • Video Output
    1 VGA D-Sub Connector port(s)
  • Serial Port
    1 COM Port(s) (1 header)
  • TPM
    1 TPM Header
    1 TPM TPM 2.0 onboard

Expansion Slots

  • PCIe
    2 PCIe 5.0 x16,
    1 PCIe 5.0 x8,
    4 PCIe 5.0 x8 MCIO connector
  • M.2
    M.2 Interface: 2 PCIe 5.0 x2
    Form Factor: 2280/22110
    Key: M-Key

System BIOS

  • BIOS Type
    AMI 64MB AMI UEFI
  • BIOS Features
    ACPI 6.5
    SMBIOS 3.7 or later
    UEFI 2.9
Brand

Supermicro
Application

Server
Form Factor

Micro-ATX
Chipset

System on Chip
Products Status

New
Socket

LGA-1700
USB

4 USB 3.2 Gen1 port(s) (2 via header; 2 rear)
BIOS Type

AMI 64MB AMI UEFI
Memory Capacity

8 DIMM slotsUp to 1TB ECC Registered RDIMM, DDR5-6400MT/s
Memory Type

6400 MT/s ECC DDR5 RDIMM Up to 128GB of memory with speeds of up to 6400 MT/s(1DPC)
Memory Voltage

1.1V
DIMM Sizes

128GB, 32GB, 64GB, 96GB
CPU

CPU TDP supports Up to 350W TDP, Intel Xeon 6700-series processors with E-coresSingle Socket E2 (LGA-4710) supported
Error Detection

Corrects single-bit errorsDetects double-bit errors (using ECC memory)
SATA

2 SATA3 port(s)
Dimension

9.6" x 9.6" (24.38cm x 24.38cm)
Network Controllers

Dual LAN with 10GBase-T with Intel X710-AT2
M.2

M.2 Interface: 2 PCIe 5.0 x2Form Factor: 2280/22110Key: M-Key
IPMI

ASPEED AST2600 BMC
PCIe

1 PCIe 5.0 x8, 2 PCIe 5.0 x16, 4 PCIe 5.0 x8 MCIO connector
TPM

1 TPM Header1 TPM TPM 2.0 onboard
BIOS Features

ACPI 6.5SMBIOS 3.7 or laterUEFI 2.9
Cores

Up to 144 (E) cores
Video Output

1 VGA D-Sub Connector port(s)
LAN

2 RJ45 10 Gigabit Ethernet LAN ports1 RJ45 Dedicated IPMI LAN port
Serial Port

1 COM Port(s) (1 header)
