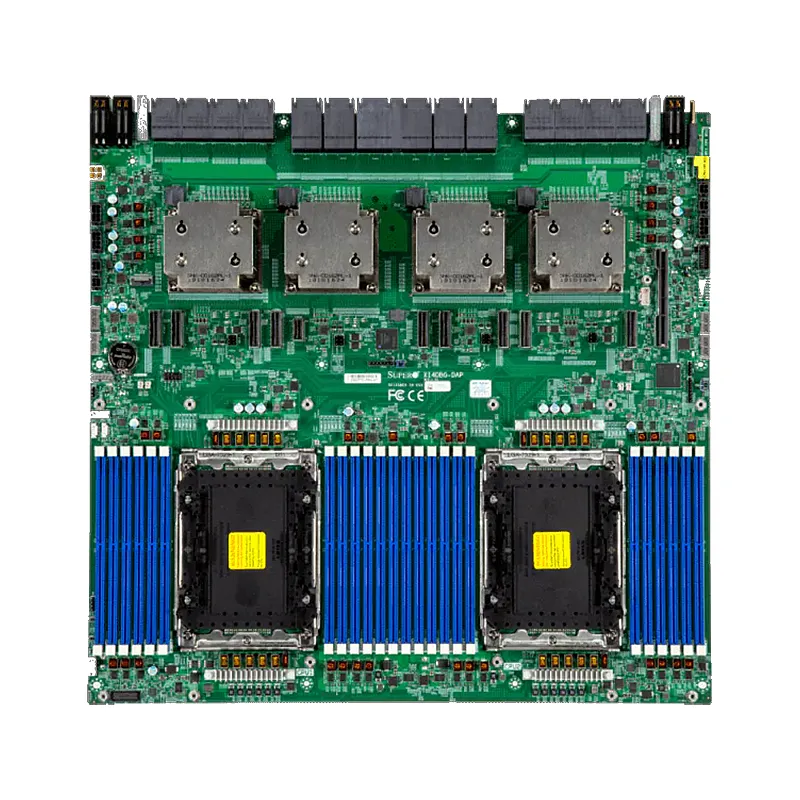

Supermicro MBD-X14DBG-DAP

Product SKUs

MBD-X14DBG-DAP

Physical Stats

Form Factor
Proprietary
Dimension
17″ x 16.165″ (43.18cm x 41.06cm)

Processor

CPU
Intel Xeon 6900 series Processors
Dual Socket BR (LGA-7529) supported, CPU TDP supports Up to 500W TDP
Core
Up to 128 (P) cores

System Memory

Memory Capacity
24 DIMM slots
Up to 6TB ECC Registered RDIMM, DDR5-6400MT/s
Memory Type
ECC DDR5 Up to 256GB of memory with speeds of up to 8800 MT/s (MRDIMM 1DPC) or 6400 MT/s (RDIMM 1DPC)
DIMM Sizes
16GB, 24GB, 32GB, 48GB, 64GB, 96GB, 128GB, 256GB
RDIMM: 16GB, 32GB, 48GB, 64GB, 96GB, 128GB, 256GB
Memory Voltage
1.1V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)

On-Board Devices

Chipset
System on Chip
Network Controllers

Input / Output

LAN
2 10G SFP+ LAN ports
USB
2 USB port(s) (2 via header)
Video Output
VGA port(s) header
TPM
1 TPM TPM 2.0 onboard

Expansion Slots

PCIe
5 PCIe 5.0 x8 PCIe5.0 MCIO connector,
1 PCIe 5.0 x4 PCIe5.0 MCIO connector,
2 PCIe 5.0 x16 MCIO connector
M.2
M.2 Interface: 2 PCIe 5.0 x4
Form Factor: 22110, 2280
Key: M-Key

System BIOS

BIOS Type
AMI 64MB AMI UEFI
BIOS Features
ACPI 6.5
SMBIOS 3.7 or later
UEFI 2.9

Brand	Supermicro
Application	Server
Form Factor	Proprietary
Chipset	System on Chip
Products Status	New
Socket	LGA-4189
USB	2 USB port(s) (2 via header)
BIOS Type	AMI 64MB AMI UEFI
Memory Capacity	24 DIMM slotsUp to 6TB ECC Registered RDIMM, DDR5-6400MT/s
Memory Type	ECC DDR5 Up to 256GB of memory with speeds of up to 8800 MT/s (MRDIMM 1DPC) or 6400 MT/s (RDIMM 1DPC)
Memory Voltage	1.1V
DIMM Sizes	128GB, 16GB, 24GB, 256GB, 256GBRDIMM: 16GB, 32GB, 48GB, 64GB, 96GB
CPU	CPU TDP supports Up to 500W TDP, Intel Xeon 6900 series ProcessorsDual Socket BR (LGA-7529) supported
Error Detection	Corrects single-bit errorsDetects double-bit errors (using ECC memory)
Dimension	17" x 16.165" (43.18cm x 41.06cm)
M.2	2280Key: M-Key, M.2 Interface: 2 PCIe 5.0 x4Form Factor: 22110
PCIe	1 PCIe 5.0 x4 PCIe5.0 MCIO connector, 2 PCIe 5.0 x16 MCIO connector, 5 PCIe 5.0 x8 PCIe5.0 MCIO connector
TPM	1 TPM TPM 2.0 onboard
BIOS Features	ACPI 6.5SMBIOS 3.7 or laterUEFI 2.9
Cores	Up to 128 (P) cores
Video Output	VGA port(s) header
LAN	2 10G SFP+ LAN ports
