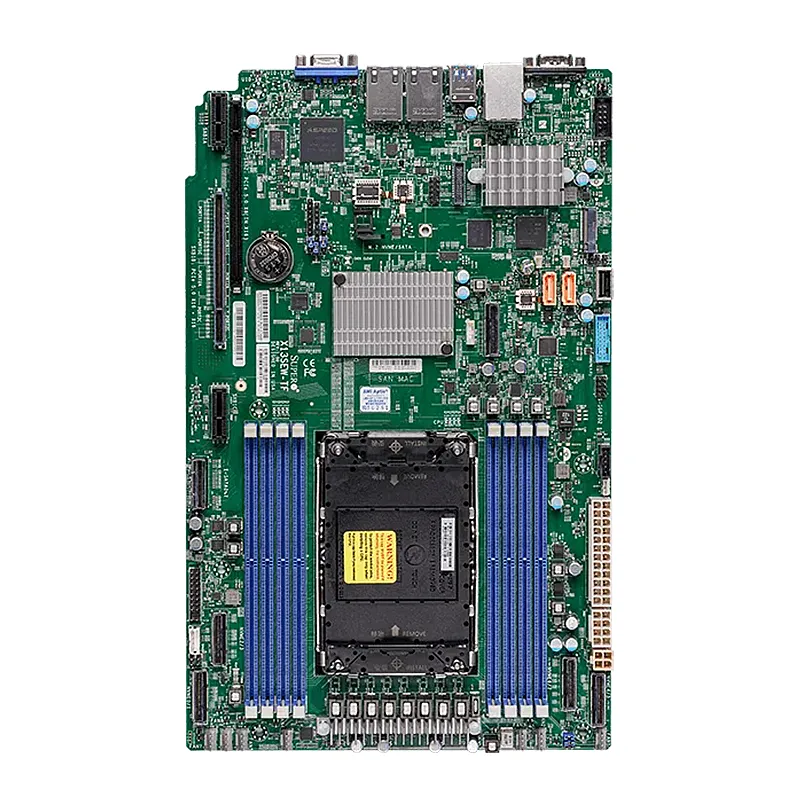

* NOTE: Image may not exactly match the product

Supermicro MBD-X13SEW-TF

**Supermicro MBD-X13SEW-TF**: A high-performance workstation motherboard built for demanding professional workloads. Features Intel W790 chipset supporting Xeon W-3400/W-2400 CPUs, up to 2TB 8-channel DDR5 memory, and seven PCIe 5.0 slots for unparalleled expansion. Includes five M.2 NVMe slots, fourteen SATA ports, and dual 10G LAN for rapid data access and connectivity. Enterprise-grade reliability with IPMI 2.0 remote management and E-ATX form factor. Ideal for AI, engineering, and content creation, offering scalability, cutting-edge tech (PCIe 5.0/DDR5), and robust performance for intensive tasks. Combines future-proofing, extreme bandwidth, and stability in mission-critical environments.

$Quote1 Piece(MOQ)

SKU MBD-X13SEW-TF Categories , , Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

Product SKUs

  • MBD-X13SEW-TF

Physical Stats

  • Form Factor
    Proprietary WIO
  • Dimension
    8″ x 13″ (20.32cm x 33.02cm)

Processor

  • CPU
    5th Gen Intel Xeon / 4th Gen Intel Xeon Scalable processors
    Single Socket E (LGA-4677) supported, CPU TDP supports Up to 350W TDP
    *BIOS 2.1 or above is required to support 5th Gen Intel Xeon Scalable processors
  • Core
    Up to 64 cores

System Memory

  • Memory Capacity
    8 DIMM slots
    Up to 2TB 3DS ECC RDIMM, DDR5-5600MT/s
    **24GB & 48GB DIMM only support 1 DPC.
    *24GB/48GB/96GB DDR5 DIMMs with 24Gb chip are only supported by 5th and 4th XCC Gen Intel Xeon-SP CPU.
  • Memory Type
    5600/5200/4800/4400/4000 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 5600MT/s(1DPC)
  • DIMM Sizes
    16GB, 24GB, 32GB, 48GB, 64GB, 96GB, 128GB, 256GB
  • Memory Voltage
    1.1V
  • Error Detection
    Corrects single-bit errors

On-Board Devices

  • Chipset
    Intel C741
  • SATA
    Intel C741 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  • IPMI
    ASPEED AST2600 BMC
  • Graphics
    1 Aspeed AST2600 BMC port(s)
  • Network Controllers
    Dual LAN with 10GBase-T with Intel X550

Input / Output

  • SATA
    10 SATA3 (6Gbps) port(s)
  • LAN
    2 RJ45 10 Gigabit Ethernet LAN ports
    1 RJ45 Dedicated IPMI LAN port
  • USB
    5 USB 2.0 port(s) (2 via header; 2 rear; 1 Type A)
    4 USB 3.2 Gen1 port(s) (2 via header; 2 rear)
  • Video Output
    1 VGA D-Sub Connector port(s)
  • Serial Port
    2 COM Port(s) (1 header; 1 rear)
  • DOM
    2 SATA DOM (Disk on Module) power connector support
  • TPM
    1 TPM Header

Expansion Slots

  • PCIe
    1 PCIe 5.0 x8 Right Riser (in x16) slot,
    1 PCIe 5.0 x32 Left Riser Slot,
    5 PCIe 5.0 x8 PCIe5.0 MCIO connector
  • M.2
    M.2 Interface: 1 PCIe 3.0 x2
    Form Factor: 2280/22110
    Key: M-Key

System BIOS

  • BIOS Type
    AMI UEFI
  • BIOS Features
    ACPI 6.4
    SMBIOS 3.5
    UEFI 2.8 or above
BIOS Features

ACPI 6.4SMBIOS 3.5UEFI 2.8 or above
Graphics

1 ASPEED AST2600 BMC port(s)
TPM

1 TPM Header
Network Controllers

Dual LAN with 10GBase-T with Intel X550
M.2

M.2 Interface: 1 PCIe 3.0 x2Form Factor: 2280/22110Key: M-Key
Chipset

Intel C741
DIMM Sizes

128GB, 16GB, 24GB, 256GB, 32GB, 48GB, 64GB, 96GB
BIOS Type

AMI UEFI
LAN

2 RJ45 10 Gigabit Ethernet LAN ports1 RJ45 Dedicated IPMI LAN port
Video Output

1 VGA D-Sub Connector port(s)
DOM

DOM
Dimension

8" x 13" (20.32cm x 33.02cm)
PCIe

1 PCIe 5.0 x32 Left Riser Slot, 1 PCIe 5.0 x8 Right Riser (in x16) slot, 5 PCIe 5.0 x8 PCIe5.0 MCIO connector
USB

5 USB 2.0 port(s) (2 via header; 2 rear; 1 Type A)4 USB 3.2 Gen1 port(s) (2 via header; 2 rear)
Form Factor

Proprietary WIO
Memory Type

5600/5200/4800/4400/4000 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 5600MT/s(1DPC)
Application

Server
IPMI

ASPEED AST2600 BMC
Memory Voltage

1.1V
CPU

5th Gen Intel XeonSingle Socket E (LGA-1700) supported, CPU TDP supports Up to 350W TDP
Serial Port

2 COM Port(s) (1 header; 1 rear)
SATA

10 SATA3 (6Gbps) port(s)
Memory Capacity

8 DIMM slotsUp to 2TB 3DS ECC RDIMM, DDR5-5600MT/s**24GB & 48GB DIMM only support 1 DPC.*24GB/48GB/96GB DDR5 DIMMs with 24Gb chip are only supported by 5th and 4th XCC Gen Intel Xeon-SP CPU.
Error Detection

Corrects single-bit errors
Core

Up to 64 cores
