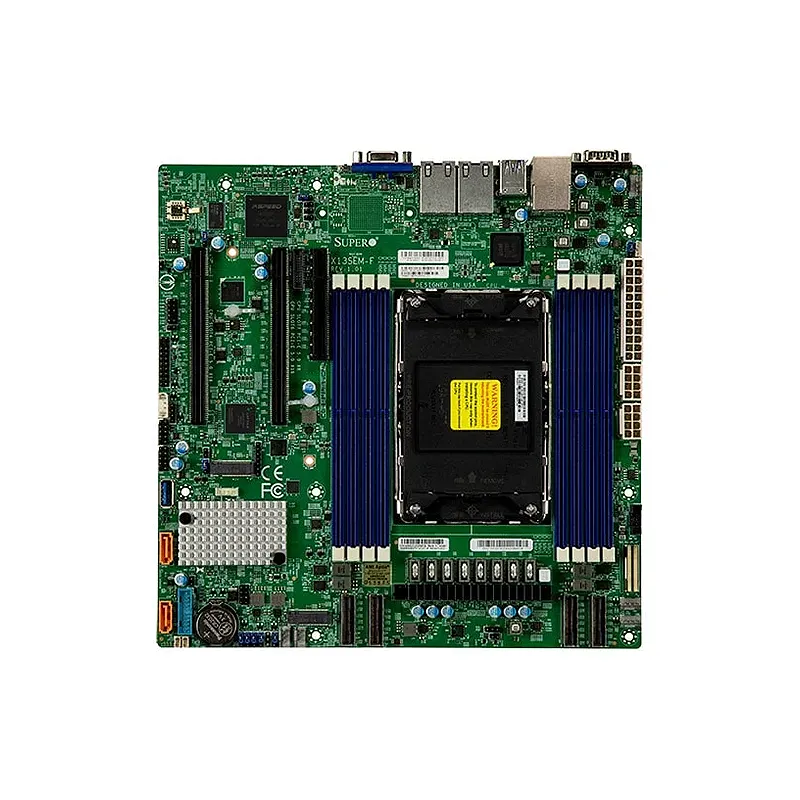

Supermicro MBD-X13SEM-F

Product SKUs

MBD-X13SEM-F

Physical Stats

Form Factor
microATX
Dimension
9.6″ x 9.6″ (24.38cm x 24.38cm)

Processor

CPU
5th Gen Intel Xeon / 4th Gen Intel Xeon Scalable processors
Single Socket Socket E (LGA-4677) supported, CPU TDP supports Up to 350W TDP
*BIOS 2.1 or above is required to support 5th Gen Intel Xeon Scalable processors
Core
Up to 64 cores

System Memory

Memory Capacity
8 DIMM slots
Up to 2TB 3DS ECC RDIMM, DDR5-5600MT/s
**24GB & 48GB DIMM only support 1 DPC.
*24GB/48GB/96GB DDR5 DIMMs with 24Gb chip are only supported by 5th and 4th XCC Gen Intel Xeon-SP CPU.
Memory Type
5600/5200/4800/4400/4000 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 5600MT/s(1DPC)
DIMM Sizes
16GB, 24GB, 32GB, 48GB, 64GB, 96GB, 128GB, 256GB
Memory Voltage
1.1V
Error Detection
Corrects single-bit errors

On-Board Devices

Chipset
Intel C741
SATA
Intel C741 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI
ASPEED AST2600 BMC
Graphics
1 Aspeed AST2600 BMC port(s)
Network Controllers
Dual LAN with 1GbE with Intel I350

Input / Output

SATA
10 SATA3 (6Gbps) port(s)
LAN
2 RJ45 Gigabit Ethernet LAN ports
1 RJ45 Dedicated IPMI LAN port
USB
6 USB 2.0 port(s) (4 via header; 2 rear)
5 USB 3.2 Gen1 port(s) (2 via header; 2 rear; 1 type A)
Video Output
1 VGA D-Sub Connector port(s)
Serial Port
1 COM Port(s) (1 rear)
DOM
2 SATA DOM (Disk on Module) power connector support
TPM
1 TPM Header

Expansion Slots

PCIe
2 PCIe 5.0 x16,
1 PCIe 5.0 x8,
4 PCIe 5.0 x8 MCIO connector
M.2
M.2 Interface: 2 PCIe 4.0 x2
Form Factor: 2280/22110
Key: M-Key

System BIOS

BIOS Type
AMI UEFI
BIOS Features
ACPI 6.4
SMBIOS 3.5
UEFI 2.8 or above

BIOS Features	ACPI 6.4SMBIOS 3.5UEFI 2.8 or above
Graphics	1 ASPEED AST2600 BMC port(s)
TPM	1 TPM Header
Network Controllers	Dual LAN with 1GbE with Intel I350
M.2	M.2 Interface: 2 PCIe 4.0 x2Form Factor: 2280/22110Key: M-Key
Chipset	Intel C741
DIMM Sizes	128GB, 16GB, 24GB, 256GB, 32GB, 48GB, 64GB, 96GB
BIOS Type	AMI UEFI
LAN	2 RJ45 Gigabit Ethernet LAN ports1 RJ45 Dedicated IPMI LAN port
Video Output	1 VGA D-Sub Connector port(s)
DOM	DOM
Dimension	9.6" x 9.6" (24.38cm x 24.38cm)
PCIe	1 PCIe 5.0 x8, 2 PCIe 5.0 x16, 4 PCIe 5.0 x8 MCIO connector
USB	6 USB 2.0 port(s) (4 via header; 2 rear)5 USB 3.2 Gen1 port(s) (2 via header; 2 rear; 1 type A)
Form Factor	Micro-ATX
Memory Type	5600/5200/4800/4400/4000 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 5600MT/s(1DPC)
Application	Server
IPMI	ASPEED AST2600 BMC
Memory Voltage	1.1V
CPU	5th Gen Intel XeonSingle Socket Socket E (LGA-4677) supported, CPU TDP supports Up to 350W TDP
Hardware	Trusted Platform Module (TPM) 2.0
Serial Port	1 COM Port(s) (1 rear)
SATA	10 SATA3 (6Gbps) port(s)
Memory Capacity	8 DIMM slotsUp to 2TB 3DS ECC RDIMM, DDR5-5600MT/s*24GB & 48GB DIMM only support 1 DPC.24GB/48GB/96GB DDR5 DIMMs with 24Gb chip are only supported by 5th and 4th XCC Gen Intel Xeon-SP CPU.
Error Detection	Corrects single-bit errors
Core	Up to 64 cores
