| BIOS Features | ACPI 6.4SMBIOS 3.5UEFI 2.8Plug and Play (PnP)PCI FW 3.3 |
|---|---|
| Graphics | 1 ASPEED AST2600 BMC port(s) |
| TPM | 1 TPM Header |
| Network Controllers | Dual LAN with 1GbE with Intel I210 |
| M.2 | M.2 Interface: 1 PCIe 4.0 x4Form Factor: 2280/22110Key: M-Key |
| Chipset | Intel C262 |
| DIMM Sizes | 16GB, 32GB, 8GB |
| BIOS Type | AMI 32MB AMI UEFI |
| LAN | 1 RJ45 Dedicated IPMI LAN port |
| Video Output | 1 VGA D-Sub Connector port(s) |
| Dimension | 9.6" x 9.6" (24.38cm x 24.38cm) |
| PCIe | 1 PCIe 5.0 x8, 1 PCIe 5.0 x8 (in x16 slot), 2 PCIe 4.0 x4 (in x8 slot) |
| USB | 6 USB 2.0 port(s) (4 via header; 2 rear)5 USB 3.2 Gen1 port(s) (2 via header; 2 rear; 1 type A) |
| Form Factor | Micro-ATX |
| Memory Type | 4400/4000/3600 MT/s Up to 128GB of memory with speeds of up to 4400MT/s (2DPC) |
| Application | Server |
| IPMI | ASPEED AST2600 BMC |
| Memory Voltage | 1.1V |
| CPU | CPU TDP supports Up to 95W TDP, Intel Xeon E-2400/Pentium* ProcessorSingle Socket Socket V0 (LGA-1700) supported |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| Serial Port | 2 COM Port(s) (1 header; 1 rear) |
| SATA | 8 SATA3 (6Gbps) port(s) |
| Memory Capacity | 4 DIMM slotsUp to 128GB Unbuffered ECC UDIMM, DDR5-4400MT/s |
| Error Detection | Corrects single-bit errorsDetects double-bit errors (using ECC memory) |
| Core | Up to 8 cores |

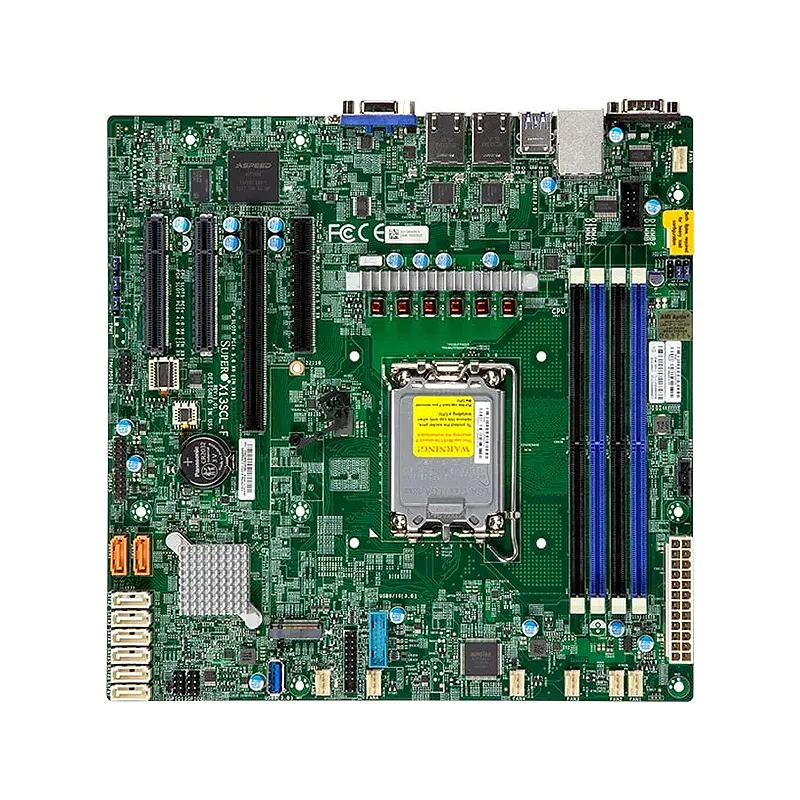

Supermicro MBD-X13SCL-F-B
is an enterprise-grade ATX motherboard designed for Intel Xeon E-2300 and 12th Gen Core processors, optimized for cloud, HPC, and storage applications. Key features include DDR4-3200 ECC memory (up to 128GB), PCIe 4.0 slots for high-speed expansion, dual 10G LAN ports for rapid networking, and versatile storage via SATA3/M.2. Integrated ASPEED AST2600 BMC enables remote management, while industrial-grade components ensure 24/7 reliability. Combines cutting-edge performance, scalability, and enterprise-level resilience in a standard form factor, ideal for demanding workloads requiring uptime, security, and future-proof connectivity.
Read More
$Quote1 Piece(MOQ)
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:
Q1: ls the product original ?
A1 : Yes, all of our products are orginal. We have our own QC team who will strictly check product quality before shipment.
Q2. Payment methods?
We accept T/T, PayPal, Alibaba ect.
Q3. Shipping methods?
We have long term business-ship with FedEx, UPS and DHL with favorble price. You can choose any shipping method mentioned above based on your ease. You can also use your own shipping account or shipping forwarder.
Q4. How long is the lead time?
Usually 1-3 working days after payment. Feel free to send me exact models for checking.
Q5. How long is the warranty period?
Different products have different warranty periods. Usually 1~3 years warranty.
Submit Inquiry
Buy more, save more. Contact us for exclusive discounts!
