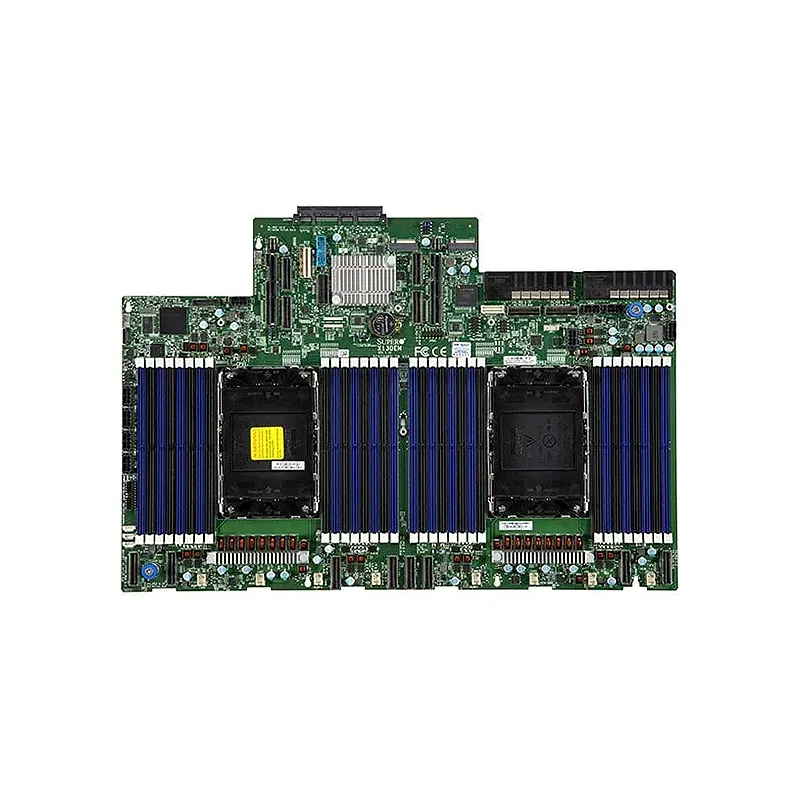

Supermicro MBD-X13DEM

The Supermicro MBD-X13DEM is a high-performance dual-socket server motherboard designed for data centers and enterprise workloads. It supports 4th/5th Gen Intel Xeon Scalable processors, 16 DDR5 DIMMs per CPU (up to 4800MHz), and PCIe 5.0 expansion slots for GPUs, accelerators, and high-speed storage. Features include 10G/25G LAN, OCP 3.0 networking flexibility, multiple M.2/U.2 NVMe slots, and IPMI remote management. Optimized for AI/ML, HPC, and cloud workloads, it delivers scalability, energy efficiency, and robust thermal design. Unique selling points include CXL 1.1 support for memory expansion, seamless integration with Supermicro’s ecosystem, and enterprise-grade reliability for demanding environments.

$Quote1 Piece(MOQ)

SKU MBD-X13DEM Categories , , Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

Product SKUs

  • MBD-X13DEM

Physical Stats

  • Form Factor
    Proprietary
  • Dimension
    11.5″ x 17″ (29.21cm x 43.18cm)

Processor

  • CPU
    5th Gen Intel Xeon / 4th Gen Intel Xeon Scalable processors and Intel Xeon Max Series processors
    Dual Socket V0 (LGA-4677) supported, CPU TDP supports Up to 350W TDP
    SP XCC, SP MCC, and MAX Series (HBM) SKUs are supported
  • Core
    Up to 64 cores

System Memory

  • Memory Capacity
    32 DIMM slots
    Up to 8TB 3DS ECC RDIMM, DDR5-5600MT/s
  • Memory Type
    5600/5200/4800/4400/4000 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 5600MT/s(1DPC) or 4400 MT/s (2DPC)
  • DIMM Sizes
    16GB, 32GB, 64GB, 96(XCC Only)GB, 128GB, 256GB
    RDIMM: Up to 256GB
  • Memory Voltage
    1.1V
  • Error Detection
    Corrects single-bit errors
    Detects double-bit errors (using ECC memory)

On-Board Devices

  • Chipset
    Intel C741
  • SATA
    Intel C741 controller for 8 SATA3 ports
  • Network Controllers

Input / Output

  • SATA
    8 SATA3 (6Gbps) port(s)
  • USB
    1 USB 3.2 Gen1x1 port(s) (1 via header)
  • Video Output
    1 VGA port(s)
  • TPM
    1 TPM Header
  • Others
    8 MCIO PCIe 5.0 x8

Expansion Slots

  • PCIe
    4 PCIe 5.0 x16 (in x16 slot),
    2 PCIe 5.0 x16 AIOM Slot, AIOM slots Superset of OCP 3.0 Expansion
  • M.2
    M.2 Interface: 2 PCIe 3.0 x2
    Form Factor: 2280, 22110
    Key: M-Key

System BIOS

  • BIOS Type
    AMI 64MB AMI UEFI
  • BIOS Features
    ACPI 6.4
    SMBIOS 2.8/3.5
    UEFI 2.8A
    Plug and Play (PnP)
    PCI FW 3.2
BIOS Features

ACPI 6.4SMBIOS 2.8/3.5UEFI 2.8APlug and Play (PnP)PCI FW 3.2
TPM

1 TPM Header
M.2

22110Key: M-Key, M.2 Interface: 2 PCIe 3.0 x2Form Factor: 2280
Chipset

Intel C741
DIMM Sizes

128GB, 16GB, 256GBRDIMM: Up to 256GB, 32GB, 64GB, 96(XCC Only)GB
BIOS Type

AMI 64MB AMI UEFI
Video Output

1 VGA port(s)
Dimension

11.5" x 17" (29.21cm x 43.18cm)
PCIe

2 PCIe 5.0 x16 AIOM Slot, 4 PCIe 5.0 x16 (in x16 slot), AIOM slots Superset of OCP 3.0 Expansion
USB

1 USB 3 port(s) (1 via header)
Form Factor

Proprietary
Memory Type

5600/5200/4800/4400/4000 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 5600MT/s(1DPC) or 4400 MT/s (2DPC)
Application

Server
Others

8 MCIO PCIe 5.0 x8
Memory Voltage

1.1V
CPU

5th Gen Intel XeonDual Socket Socket E (LGA-4677) supported, CPU TDP supports Up to 350W TDP
SATA

8 SATA3 (6Gbps) port(s)
Memory Capacity

32 DIMM slotsUp to 8TB 3DS ECC RDIMM, DDR5-5600MT/s
Error Detection

Corrects single-bit errorsDetects double-bit errors (using ECC memory)
Core

Up to 64 cores
