| BIOS Features | ACPI 6.4SMBIOS 2.8/3.5UEFI 2.8APlug and Play (PnP)PCI FW 3.2 |
|---|---|
| TPM | 1 TPM Header |
| Network Controllers | Dual LANDual LAN with Broadcom BCM57416 10GBase-T |
| M.2 | M.2 Interface: 2 PCIe 4.0 x2Form Factor: 2280/22110Key: M-Key |
| Chipset | Intel C741 |
| DIMM Sizes | 128GB, 16GB, 256GBRDIMM: Up to 256GB, 32GB, 64GB, 96(XCC Only)GB |
| BIOS Type | AMI 32MB AMI UEFI |
| LAN | 1 RJ45 Dedicated IPMI LAN port |
| Video Output | 1 VGA D-Sub Connector port(s) |
| Dimension | 12.1" x 13.05" (30.74cm x 33.15cm) |
| PCIe | 2 PCIe 5.0 x8, 4 PCIe 5.0 x16 |
| USB | 3 USB 2 port(s) (2 via header; 1 Type A)6 USB 3 port(s) (2 via header; 4 rear) |
| Form Factor | E-ATX |
| Memory Type | 5600/5200/4800/4400/4000 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 5600MT/s(1DPC) |
| Application | Server |
| IPMI | ASPEED AST2600 BMC |
| Others | 3 MCIO PCIe 5.0 x8 |
| Memory Voltage | 1.1V |
| CPU | 5th Gen Intel XeonDual Socket V0 (LGA-4677) supported, CPU TDP supports Up to 350W TDP |
| Serial Port | 2 COM Port(s) (1 header; 1 rear) |
| SATA | 8 SATA3 (6Gbps) port(s)2 SATA3 (6Gbps) port(s) |
| Memory Capacity | 16 DIMM slotsUp to 4TB 3DS ECC RDIMM, DDR5-5600MT/s |
| Error Detection | Corrects single-bit errorsDetects double-bit errors (using ECC memory) |
| Core | Up to 64 cores |

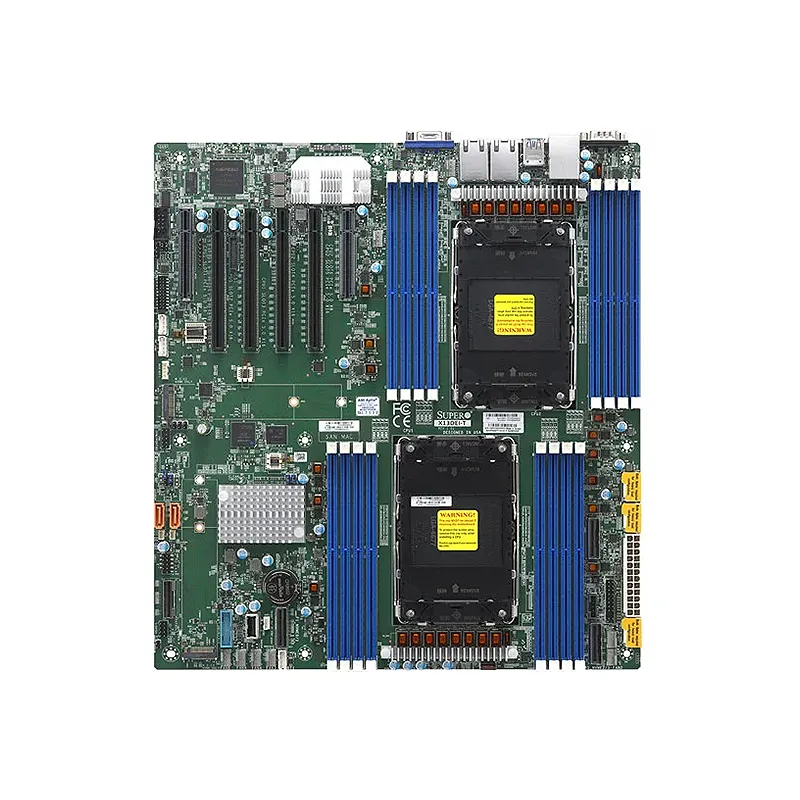

Supermicro MBD-X13DEI-B
**Supermicro MBD-X13DEI-B**: A high-performance dual-socket motherboard designed for enterprise servers and data centers. Supports 4th Gen Intel Xeon Scalable Processors (Sapphire Rapids) for exceptional compute power. Features 32 DDR5 DIMM slots (up to 8TB memory) and PCIe 5.0 expansion slots for ultra-fast storage, GPUs, or accelerators. Includes dual 10G LAN, IPMI remote management, and M.2 NVMe support. Built for scalability, reliability, and energy efficiency, it excels in AI, virtualization, and cloud workloads. Unique selling points: Future-proof PCIe 5.0/CXL 1.1 compatibility, advanced thermal design, and Supermicro’s proven enterprise-grade durability.
$Quote1 Piece(MOQ)
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Q1: ls the product original ?
A1 : Yes, all of our products are orginal. We have our own QC team who will strictly check product quality before shipment.
Q2. Payment methods?
We accept T/T, PayPal, Alibaba ect.
Q3. Shipping methods?
We have long term business-ship with FedEx, UPS and DHL with favorble price. You can choose any shipping method mentioned above based on your ease. You can also use your own shipping account or shipping forwarder.
Q4. How long is the lead time?
Usually 1-3 working days after payment. Feel free to send me exact models for checking.
Q5. How long is the warranty period?
Different products have different warranty periods. Usually 1~3 years warranty.
Submit Inquiry
Buy more, save more. Contact us for exclusive discounts!
