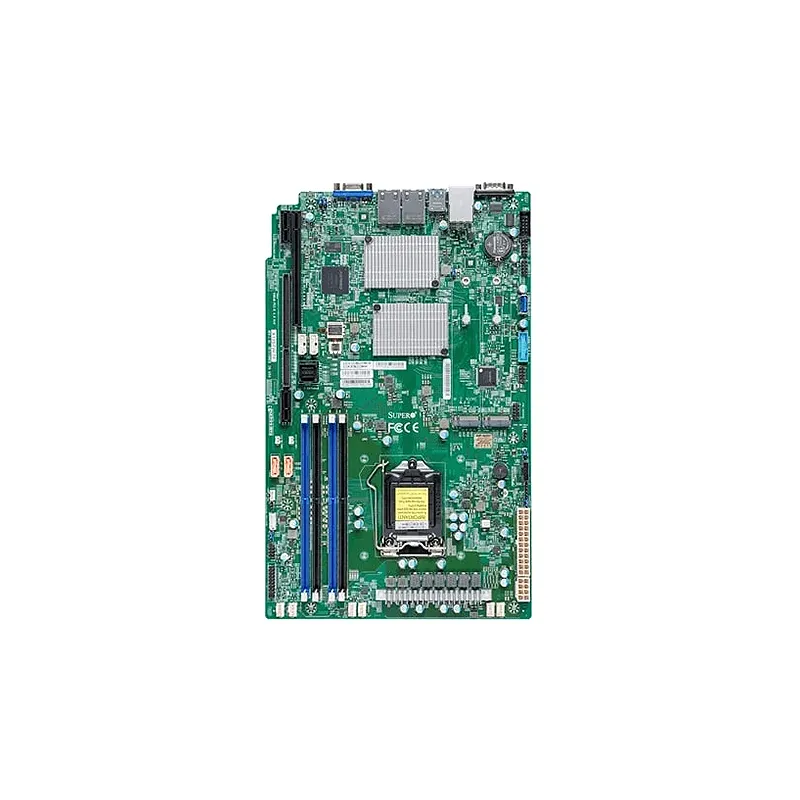

* NOTE: Image may not exactly match the product

Supermicro MBD-X12STW-TF

: A high-performance workstation motherboard built for Intel Xeon W-1300 processors, featuring support for up to 128GB DDR4 ECC memory, PCIe 4.0 slots, and dual 10G LAN for ultra-fast data transfer. Compact Micro-ATX design integrates 8x SATA, 3x M.2 slots, and USB 3.2 Gen2 ports, ideal for content creation, engineering, and virtualization. Enhanced reliability with ECC memory, IPMI remote management, and Supermicro’s optimized thermal design. Unique for its enterprise-grade networking, scalability, and robust storage in a space-efficient form, catering to professionals demanding stability, speed, and future-proof expansion.

Read More

$Quote1 Piece(MOQ)

SKU MBD-X12STW-TF Categories , , Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

Product SKUs

  • MBD-X12STW-TF

Physical Stats

  • Form Factor
    Proprietary WIO
  • Dimension
    8″ x 13″ (20.32cm x 33.02cm)

Processor

  • CPU
    10th Generation Intel Pentium Processor, Intel Xeon E-2300 Processor
    Single Socket Socket H5 (LGA-1200) supported, CPU TDP supports Up to 95W TDP
  • Core
    Up to 8 cores, 16 threads

System Memory

  • Memory Capacity
    4 DIMM slots
    Up to 128GB Unbuffered ECC UDIMM, DDR4-3200MT/s
  • Memory Type
    3200/2933/2666 MT/s SDRAM
  • DIMM Sizes
    4GB, 8GB, 16GB, 32GB
  • Memory Voltage
    1.2V
  • Error Detection
    Corrects single-bit errors

On-Board Devices

  • Chipset
    Intel C256
  • SATA
    Intel C256 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  • IPMI
    ASPEED AST2600 BMC
  • Graphics
    1 ASPEED AST2600 BMC port(s)
  • Network Controllers
    Dual LAN with Intel X550 10GBase-T Ethernet Controller

Input / Output

  • SATA
    8 SATA3 (6Gbps) port(s)
  • LAN
    2 RJ45 10 Gigabit Ethernet LAN ports
  • USB
    6 USB 2.0 port(s) (4 via header; 2 rear)
    4 USB 3.2 Gen1 port(s) (2 via header; 2 rear)
    1 USB 3.2 Gen2 port(s) (1 type A)
  • Video Output
    1 VGA port(s)
  • Serial Port
    2 COM Port(s) (1 header; 1 rear)
  • DOM
    2 SATA DOM (Disk on Module) power connector support
  • TPM
    1 TPM Header

Expansion Slots

  • PCIe
    1 PCIe 4.0 x16 Left Riser Slot,
    1 PCIe 3.0 x4 (in x8 slot)
  • M.2
    M.2 Interface: 1 PCIe 4.0 x4; 1 PCIe 3.0 x4
    Form Factor: 2280/22110
    Key: M-Key
    Double Height Connector

System BIOS

  • BIOS Type
    256MB UEFI
  • BIOS Features
    ACPI 6.0
    SMBIOS 3.3
    Plug and Play (PnP)
    RTC (Real Time Clock) Wakeup
    UEFI 2.7
    USB Keyboard support
    PCI 3.0

Management

  • System Management Software
    IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
  • Power Configurations
    ACPI Power Management
BIOS Features ACPI 6.0SMBIOS 3.3Plug and Play (PnP)RTC (Real Time Clock) WakeupUEFI 2.7USB Keyboard supportPCI 3.0
Graphics 1 ASPEED AST2600 BMC port(s)
TPM 1 TPM Header
Network Controllers Dual LAN with Intel X550 10GBase-T Ethernet Controller
M.2 M.2 Interface: 1 PCIe 4.0 x4; 1 PCIe 3.0 x4Form Factor: 2280/22110Key: M-Key
Chipset Intel C256
DIMM Sizes 16GB, 32GB, 4GB, 8GB
BIOS Type 256MB UEFI
LAN 2 RJ45 10 Gigabit Ethernet LAN ports
Video Output 1 VGA port(s)
DOM DOM
Dimension 8" x 13" (20.32cm x 33.02cm)
PCIe 1 PCIe 3.0 x4 (in x8 slot), 1 PCIe 4.0 x16 Left Riser Slot
USB 6 USB 2.0 port(s) (4 via header; 2 rear)4 USB 3.2 Gen1 port(s) (2 via header; 2 rear)1 USB 3.2 Gen2 port(s) (1 type A)
Form Factor Proprietary WIO
Memory Type 3200/2933/2666 MT/s SDRAM
Application Server
IPMI ASPEED AST2600 BMC
Memory Voltage 1.2V
CPU 10th Generation Intel Pentium Processor, CPU TDP supports Up to 95W TDP, Intel Xeon E-2300 ProcessorSingle Socket Socket H5 (LGA-1200) supported
Serial Port 2 COM Port(s) (1 header; 1 rear)
SATA 8 SATA3 (6Gbps) port(s)
Memory Capacity 4 DIMM slotsUp to 128GB Unbuffered ECC UDIMM, DDR4-3200MT/s
Error Detection Corrects single-bit errors
Core 16 threads, Up to 8 cores
