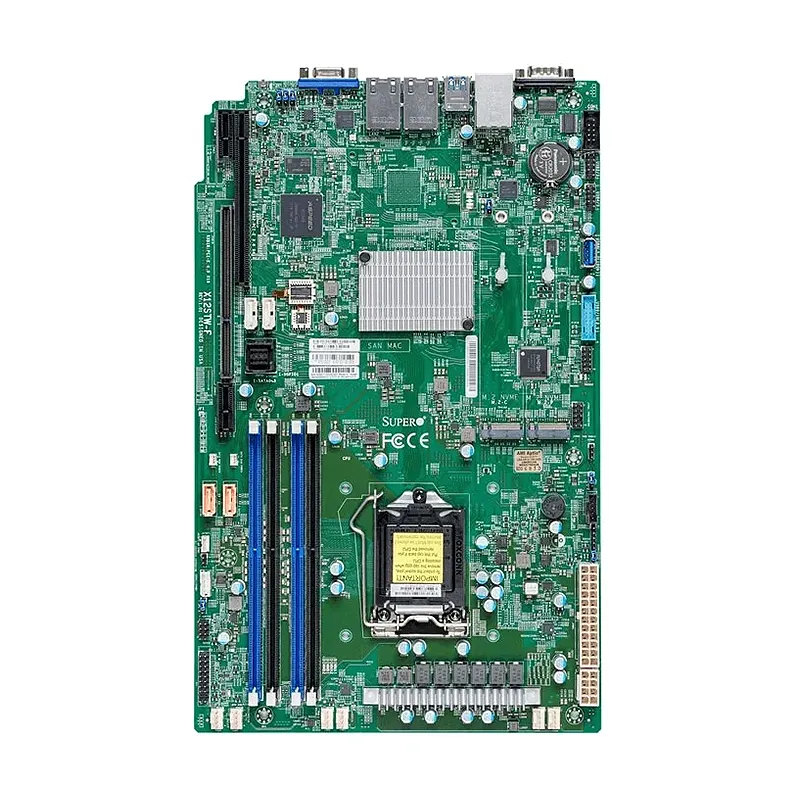

* NOTE: Image may not exactly match the product

Supermicro MBD-X12STW-F

**Supermicro MBD-X12STW-F**: A high-performance workstation/server motherboard built for professionals demanding reliability and power. Supports 10th Gen Intel Xeon W-1200 and Core™ processors, offering robust computing for AI, CAD, and virtualization. Features ECC memory support (up to 128GB DDR4) for error-free data integrity, dual 2.5GbE LAN with Intel® i225 controllers, and PCIe 3.0 x16/x8 slots for expandability. Includes dual M.2 NVMe slots (PCIe 3.0 x4) for ultra-fast storage, IPMI remote management for seamless monitoring, and USB 3.2 Gen2 ports. Compact Micro-ATX design optimizes space without sacrificing enterprise-grade features. **USP**: Combines server-level reliability (ECC, IPMI) with workstation versatility, ideal for cost-sensitive environments needing stability and scalability.

$Quote1 Piece(MOQ)

SKU MBD-X12STW-F Categories , , Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

Product SKUs

  • MBD-X12STW-F

Physical Stats

  • Form Factor
    Proprietary WIO
  • Dimension
    8″ x 13″ (20.32cm x 33.02cm)

Processor

  • CPU
    10th Generation Intel Pentium Processor, Intel Xeon E-2300 Processor
    Single Socket Socket H5 (LGA-1200) supported, CPU TDP supports Up to 95W TDP
  • Core
    Up to 8 cores, 16 threads

System Memory

  • Memory Capacity
    4 DIMM slots
    Up to 128GB Unbuffered ECC UDIMM, DDR4-3200MT/s
  • Memory Type
    3200/2933/2666 MT/s SDRAM
  • DIMM Sizes
    4GB, 8GB, 16GB, 32GB
  • Memory Voltage
    1.2V
  • Error Detection
    Corrects single-bit errors

On-Board Devices

  • Chipset
    Intel C256
  • SATA
    Intel C256 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  • IPMI
    ASPEED AST2600 BMC
  • Graphics
    1 ASPEED AST2600 BMC port(s)
  • Network Controllers
    Dual LAN with Intel Ethernet Controller I210-AT

Input / Output

  • SATA
    8 SATA3 (6Gbps) port(s)
  • LAN
    2 RJ45 Gigabit Ethernet LAN ports
  • USB
    6 USB 2.0 port(s) (4 via header; 2 rear)
    4 USB 3.2 Gen1 port(s) (2 via header; 2 rear)
    1 USB 3.2 Gen2 port(s) (1 rear type A)
  • Video Output
    1 VGA port(s)
  • Serial Port
    2 COM Port(s) (1 header; 1 rear)
  • DOM
    2 SATA DOM (Disk on Module) power connector support
  • TPM
    1 TPM Header

Expansion Slots

  • PCIe
    1 PCIe 4.0 x16 Left Riser Slot,
    1 PCIe 3.0 x4 (in x8 slot)
  • M.2
    M.2 Interface: 1 PCIe 4.0 x4; 1 PCIe 3.0 x4
    Form Factor: 2280/22110
    Key: M-Key
    Double Height Connector

System BIOS

  • BIOS Type
    256MB UEFI
  • BIOS Features
    ACPI 6.0
    SMBIOS 3.3
    Plug and Play (PnP)
    RTC (Real Time Clock) Wakeup
    UEFI 2.7
    USB Keyboard support
    PCI 3.0

Management

  • System Management Software
    IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
  • Power Configurations
    ACPI Power Management
BIOS Features

ACPI 6.0SMBIOS 3.3Plug and Play (PnP)RTC (Real Time Clock) WakeupUEFI 2.7USB Keyboard supportPCI 3.0
Graphics

1 ASPEED AST2600 BMC port(s)
TPM

1 TPM Header
Network Controllers

Dual LAN with Intel Ethernet Controller I210-AT
M.2

M.2 Interface: 1 PCIe 4.0 x4; 1 PCIe 3.0 x4Form Factor: 2280/22110Key: M-Key
Chipset

Intel C256
DIMM Sizes

16GB, 32GB, 4GB, 8GB
BIOS Type

256MB UEFI
LAN

2 RJ45 Gigabit Ethernet LAN ports
Video Output

1 VGA port(s)
DOM

DOM
Dimension

8" x 13" (20.32cm x 33.02cm)
PCIe

1 PCIe 3.0 x4 (in x8 slot), 1 PCIe 4.0 x16 Left Riser Slot
USB

6 USB 2.0 port(s) (4 via header; 2 rear)4 USB 3.2 Gen1 port(s) (2 via header; 2 rear)1 USB 3.2 Gen2 port(s) (1 rear type A)
Form Factor

Proprietary WIO
Memory Type

3200/2933/2666 MT/s SDRAM
Application

Server
IPMI

ASPEED AST2600 BMC
Memory Voltage

1.2V
CPU

10th Generation Intel Pentium Processor, CPU TDP supports Up to 95W TDP, Intel Xeon E-2300 ProcessorSingle Socket Socket H5 (LGA-1200) supported
Hardware

Trusted Platform Module (TPM) 2.0
Serial Port

2 COM Port(s) (1 header; 1 rear)
SATA

8 SATA3 (6Gbps) port(s)
Memory Capacity

4 DIMM slotsUp to 128GB Unbuffered ECC UDIMM, DDR4-3200MT/s
Error Detection

Corrects single-bit errors
Core

16 threads, Up to 8 cores
