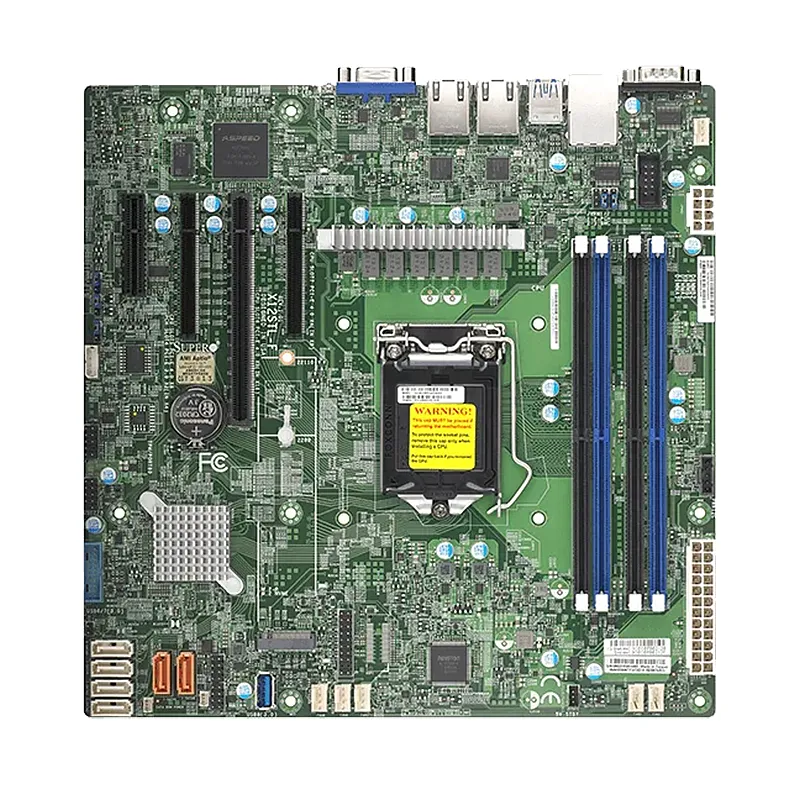

* NOTE: Image may not exactly match the product

Supermicro MBD-X12STL-F

**Supermicro MBD-X12STL-F**: A compact Micro-ATX server/workstation motherboard built for entry-level performance and reliability. Features Intel Xeon E-2300 (LGA 1200) support, up to 128GB DDR4 ECC memory for error-free operation, six SATA3 ports, dual M.2 slots (PCIe/SATA), and PCIe 4.0/3.0 expansion for high-speed storage and GPUs. Dual Gigabit LAN with Intel controllers ensures stable connectivity, while IPMI 2.0 via dedicated LAN enables secure remote management. Ideal for SMBs, data centers, or workstations requiring scalability, robust storage options, and enterprise-grade remote administration in a space-efficient design. Combines affordability with Supermicro’s trusted server-grade durability.

$Quote1 Piece(MOQ)

SKU MBD-X12STL-F Categories , , Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

Product SKUs

  • MBD-X12STL-F

Physical Stats

  • Form Factor
    microATX
  • Dimension
    9.6″ x 9.6″ (24.38cm x 24.38cm)

Processor

  • CPU
    10th Generation Intel Pentium Processor, Intel Xeon E-2300 Processor
    Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 95W TDP
  • Core
    Up to 8 cores

System Memory

  • Memory Capacity
    4 DIMM slots
    Up to 128GB Unbuffered ECC UDIMM, DDR4-3200MT/s
  • Memory Type
    3200/2933/2666 MT/s SDRAM
  • DIMM Sizes
    4GB, 8GB, 16GB, 32GB
  • Memory Voltage
    1.2V
  • Error Detection
    Corrects single-bit errors

On-Board Devices

  • Chipset
    Intel C252
  • SATA
    Intel C252 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  • IPMI
    ASPEED AST2600 BMC
  • Graphics
    1 ASPEED AST2600 BMC port(s)
  • Network Controllers
    Dual LAN with 1GbE with Intel I210

Input / Output

  • SATA
    6 SATA3 (6Gbps) port(s)
  • LAN
    2 1GbE LAN ports
  • USB
    4 USB 2.0 port(s) (2 via header; 2 rear)
    5 USB 3.2 Gen1 port(s) (2 via header; 2 rear; 1 type A)
  • Video Output
    1 VGA D-Sub Connector port(s)
  • Serial Port
    2 COM Port(s) (1 header; 1 rear)
  • DOM
    2 Super DOM (Disk on Module) power connector
  • TPM
    1 TPM Header

Expansion Slots

  • PCIe
    1 PCIe 4.0 x8 (in x16 slot),
    1 PCIe 4.0 x8,
    1 PCIe 4.0 x4 (in x8 slot),
    1 PCIe 3.0 x2 (in x4 slot)
  • M.2
    M.2 Interface: 1 PCIe 3.0 x4
    Form Factor: 2280/22110
    Key: M-Key

System BIOS

  • BIOS Type
    256MB UEFI
  • BIOS Features
    ACPI 6.0
    SMBIOS 3.3
    Plug and Play (PnP)
    RTC (Real Time Clock) Wakeup
    UEFI 2.7
    USB Keyboard support
    PCI 3.0

Management

  • System Management Software
    IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
  • Power Configurations
    Power-on mode for AC power recovery, ACPI Power Management
BIOS Features

ACPI 6.0SMBIOS 3.3Plug and Play (PnP)RTC (Real Time Clock) WakeupUEFI 2.7USB Keyboard supportPCI 3.0
Graphics

1 ASPEED AST2600 BMC port(s)
TPM

1 TPM Header
Network Controllers

Dual LAN with 1GbE with Intel I210
M.2

M.2 Interface: 1 PCIe 3.0 x4Form Factor: 2280/22110Key: M-Key
Chipset

Intel C252
DIMM Sizes

16GB, 32GB, 4GB, 8GB
BIOS Type

256MB UEFI
LAN

2 1GbE LAN ports
Video Output

1 VGA D-Sub Connector port(s)
DOM

DOM
Dimension

9.6" x 9.6" (24.38cm x 24.38cm)
PCIe

1 PCIe 3.0 x2 (in x4 slot), 1 PCIe 4.0 x4 (in x8 slot), 1 PCIe 4.0 x8, 1 PCIe 4.0 x8 (in x16 slot)
USB

4 USB 2.0 port(s) (2 via header; 2 rear)5 USB 3.2 Gen1 port(s) (2 via header; 2 rear; 1 type A)
Form Factor

Micro-ATX
Memory Type

3200/2933/2666 MT/s SDRAM
Application

Server
IPMI

ASPEED AST2600 BMC
Memory Voltage

1.2V
CPU

10th Generation Intel Pentium Processor, CPU TDP supports Up to 95W TDP, Intel Xeon E-2300 ProcessorSingle Socket Socket H5 (LGA-1200) supported
Hardware

Trusted Platform Module (TPM) 2.0
Serial Port

2 COM Port(s) (1 header; 1 rear)
SATA

6 SATA3 (6Gbps) port(s)
Memory Capacity

4 DIMM slotsUp to 128GB Unbuffered ECC UDIMM, DDR4-3200MT/s
Error Detection

Corrects single-bit errors
Core

Up to 8 cores
