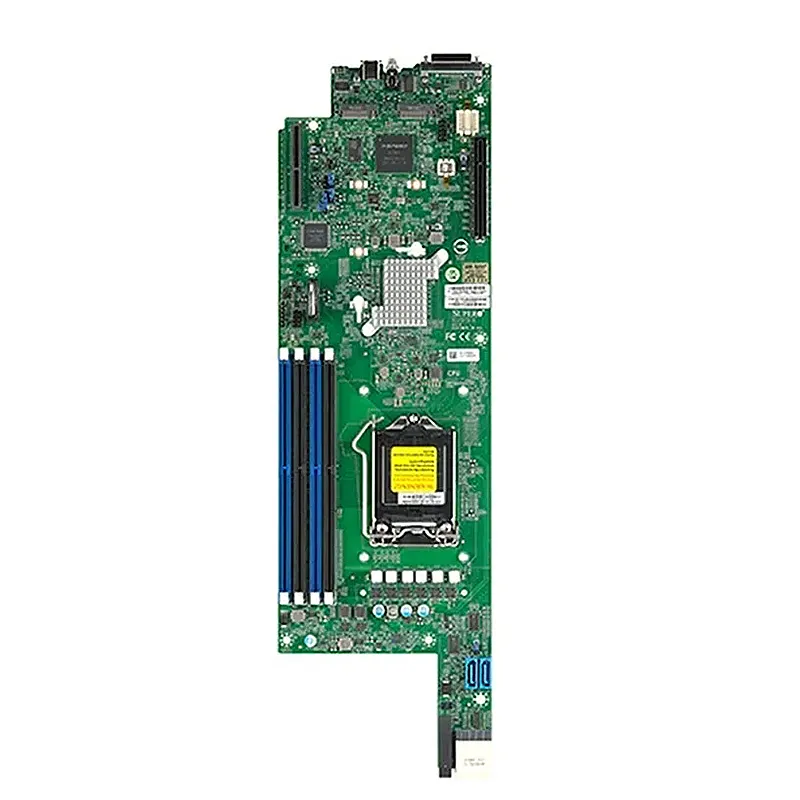

* NOTE: Image may not exactly match the product

Supermicro MBD-X12STD-F

Supermicro MBD-X12STD-F: A Micro-ATX motherboard built for performance and scalability, supporting Intel Xeon E-2300 processors and Intel C252 chipset. Features include four DDR4-3200MHz UDIMM slots (128GB max), six SATA3 ports, dual M.2 slots (PCIe 4.0/3.0), and PCIe 4.0/3.0 expansion slots. Equipped with dual Gigabit LAN (Intel controllers), IPMI 2.0 via Aspeed AST2600 BMC for remote management, and TPM 2.0 security. Ideal for SMBs, edge computing, and data centers, it delivers enterprise-grade reliability, high-speed storage flexibility, and efficient remote monitoring in a compact form factor. USP: Combines PCIe 4.0 bandwidth, robust expandability, and server-grade management tools for cost-effective, future-ready infrastructure.

$Quote1 Piece(MOQ)

SKU MBD-X12STD-F Categories , , Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

Product SKUs

  • MBD-X12STD-F

Physical Stats

  • Form Factor
    Proprietary
  • Dimension
    4.75″ x 15.69″ (12.07cm x 39.85cm)

Processor

  • CPU
    Intel Pentium, Intel Xeon E-2300 Processor
    Single Socket Socket H5 (LGA-1200) supported, CPU TDP supports Up to 95W TDP

System Memory

  • Memory Capacity
    4 DIMM slots
    Up to 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-3200MT/s
  • Memory Type
    3200/2933/2666 MT/s
  • DIMM Sizes
    4GB, 8GB, 16GB, 32GB
  • Memory Voltage
    1.2V
  • Error Detection
    Detects double-bit errors (using ECC memory)

On-Board Devices

  • Chipset
    Intel C256
  • SATA
    Intel C256 controller for 2 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  • IPMI
    ASPEED AST2600 BMC
  • Network Controllers
    Single LAN with ASPEED AST2600 BMC

Input / Output

  • SATA
    2 SATA3 port(s)
  • USB
    3 USB port(s) (2 type A Via KVM connector; 1 type C)
  • Video Output
    1 VGA port(s) Via KVM connector
  • Serial Port
    1 COM Port(s) (1 Serial Port Via KVM connector)
  • TPM
    1 TPM Header & Chip both

Expansion Slots

  • PCIe
    1 PCIe 4.0 x8 (Low Profile),
    1 PCIe 4.0 x8 (Micro Low Profile)
  • M.2
    M.2 Interface: 2 SATA/PCIe 3.0 x4
    Form Factor: 2280/22110
    Key: M-Key

System BIOS

  • BIOS Type
    256MB SPI Flash with AMI BIOS
  • BIOS Features
    ACPI 6.0 or later
    Plug and Play (PnP)
    BIOS rescue hot keys
    SMBIOS 3.0 or later

Management

  • Power Configurations
    Power-on mode for AC power recovery, ACPI Power Management, Power button override mechanism, Wake-on-LAN
BIOS Features

ACPI 6.0 or laterPlug and Play (PnP)BIOS rescue hot keysSMBIOS 3.0 or later
TPM

1 TPM Header & Chip both
Network Controllers

Single LAN with ASPEED AST2600 BMC
M.2

M.2 Interface: 2 SATA/PCIe 3.0 x4Form Factor: 2280/22110Key: M-Key
Chipset

Intel C256
DIMM Sizes

16GB, 32GB, 4GB, 8GB
BIOS Type

256MB SPI Flash with AMI BIOS
Video Output

1 VGA port(s) Via KVM connector
Dimension

4.75" x 15.69" (12.07cm x 39.85cm)
PCIe

1 PCIe 4.0 x8 (Low Profile), 1 PCIe 4.0 x8 (Micro Low Profile)
USB

3 USB port(s) (2 type A Via KVM connector; 1 type C)
Form Factor

Proprietary
Memory Type

3200/2933/2666 MT/s
Application

Server
IPMI

ASPEED AST2600 BMC
Memory Voltage

1.2V
CPU

CPU TDP supports Up to 95W TDP, Intel Pentium, Intel Xeon E-2300 ProcessorSingle Socket Socket H5 (LGA-1200) supported
Serial Port

1 COM Port(s) (1 Serial Port Via KVM connector)
SATA

2 SATA3 port(s)
Memory Capacity

4 DIMM slotsUp to 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-3200MT/s
Error Detection

Detects double-bit errors (using ECC memory)
