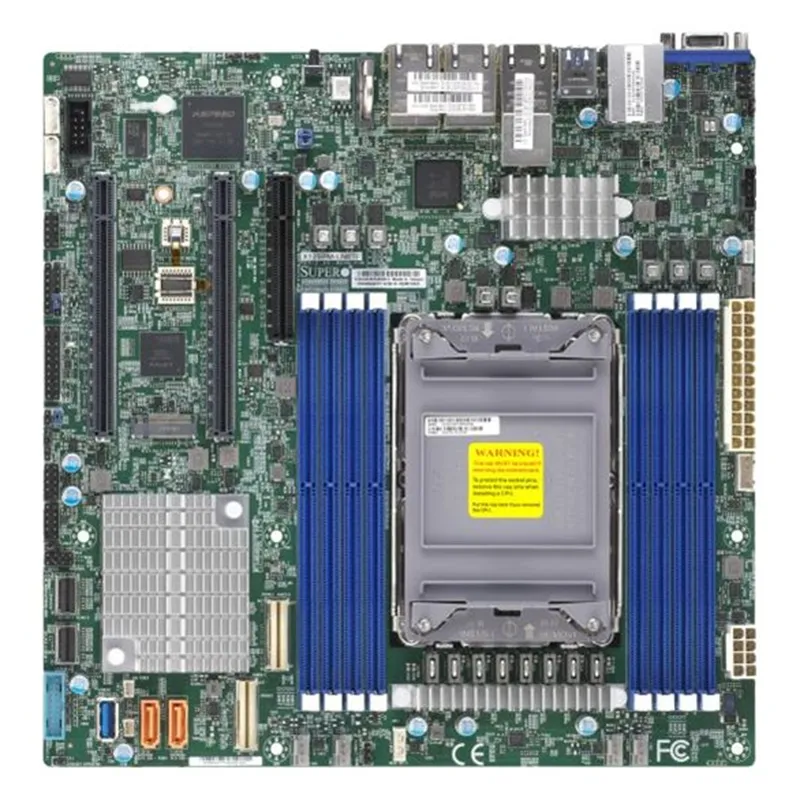

* NOTE: Image may not exactly match the product

Supermicro MBD-X12SPM-LN6TF

**Supermicro MBD-X12SPM-LN6TF**: A high-performance server motherboard designed for enterprise and data center workloads. Supports 3rd Gen Intel Xeon Scalable (Ice Lake-SP) processors, delivering exceptional compute power for AI, HPC, and cloud applications. Features 6-channel DDR4-3200 memory (up to 6TB), four PCIe 4.0 x16 and one PCIe 3.0 x8 slots for scalable GPU/NVMe expansion, eight SATA3 ports, dual M.2 slots, and dual 10G LAN ports. Integrated IPMI 2.0 enables remote management, while E-ATX form factor ensures broad compatibility. **USP**: Combines cutting-edge PCIe 4.0 bandwidth, massive memory capacity, and Supermicro’s reliability for scalable, future-ready infrastructure. Ideal for data-intensive tasks with optimized throughput and flexibility.

$Quote5 pcs (MOQ) Minimum Order Quantity

SKU MBD-X12SPM-LN6TF Categories , , Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

Product SKUs

  • MBD-X12SPM-LN6TF

Physical Stats

  • Form Factor
    microATX
  • Dimension
    9.6″ x 9.6″ (24.38cm x 24.38cm)

Processor

  • CPU
    3rd Gen Intel Xeon Scalable processors
    Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP
  • Core
    Up to 40 cores

System Memory

  • Memory Capacity
    8 DIMM slots
    Up to 2TB Intel Optane Persistent Memory 200 Series
    Up to 2TB 3DS ECC LRDIMM, DDR4-3200MT/s; Up to 2TB 3DS ECC RDIMM, DDR4-3200MT/s
  • Memory Type
    ECC , DDR4 LRDIMM (3DS), RDIMM (3DS)
  • DIMM Sizes
    LRDIMM 3DS: 128GB, 256GB
    LRDIMM: 64GB, 128GB
    RDIMM: 8GB, 16GB, 32GB, 64GB
  • Memory Voltage
    1.2V
  • Error Detection
    Corrects single-bit errors

On-Board Devices

  • Chipset
    Intel C621A
  • SATA
    Intel C621A controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  • IPMI
    ASPEED AST2600 BMC
  • Graphics
    1 ASPEED AST2600 BMC port(s)
  • Network Controllers
    Quad LAN with 1GbE with Intel I350-AM4
    Dual LAN with 10GBase-T with Intel X550

Input / Output

  • SATA
    10 SATA3 (6Gbps) port(s)
  • LAN
    2 RJ45 10 Gigabit Ethernet LAN ports
    4 RJ45 Gigabit Ethernet LAN ports
  • USB
    6 USB 2.0 port(s) (4 via header; 2 rear)
    5 USB 3.2 Gen1 port(s) (2 via header; 2 rear; 1 type A)
  • Video Output
    1 VGA port(s)
  • Serial Port
    1 COM Port(s) (1 header)
  • DOM
    2 SATA DOM (Disk on Module) power connector support
  • TPM
    1 TPM Header

Expansion Slots

  • PCIe
    2 PCIe 4.0 x16,
    1 PCIe 4.0 x8,
    2 PCIe 4.0 x8 SlimSAS connector
  • M.2
    M.2 Interface: 1 SATA/PCIe 3.0 x4
    Form Factor: 2280, 22110
    Key: M-Key

System BIOS

  • BIOS Type
    AMI UEFI
  • BIOS Features
    ACPI 6.0
    RTC (Real Time Clock) Wakeup
    SMBIOS 3.0 or later

Management

  • Power Configurations
    Power-on mode for AC power recovery, ACPI Power Management
Brand

Supermicro
Application

Server
Form Factor

Micro-ATX
Chipset

Intel C621A
Products Status

New
Socket

LGA-4189
USB

6 USB 2.0 port(s) (4 via header; 2 rear)5 USB 3.2 Gen1 port(s) (2 via header; 2 rear; 1 type A)
BIOS Type

AMI UEFI
Memory Capacity

8 DIMM slotsUp to 2TB Intel Optane Persistent Memory 200 SeriesUp to 2TB 3DS ECC LRDIMM, DDR4-3200MT/s, DDR4-3200MT/s; Up to 2TB 3DS ECC RDIMM
Memory Type

DDR4 LRDIMM (3DS), ECC, RDIMM (3DS)
Memory Voltage

1.2V
DIMM Sizes

128GBRDIMM: 8GB, 16GB, 256GBLRDIMM: 64GB, 32GB, 64GB, LRDIMM 3DS: 128GB
CPU

3rd Gen Intel Xeon Scalable processors
Error Detection

Corrects single-bit errors
SATA

10 SATA3 (6Gbps) port(s)
Dimension

9.6" x 9.6" (24.38cm x 24.38cm)
Network Controllers

Quad LAN with 1GbE with Intel I350-AM4Dual LAN with 10GBase-T with Intel X550
M.2

22110Key: M-Key, M.2 Interface: 1 SATA/PCIe 3.0 x4Form Factor: 2280
IPMI

ASPEED AST2600 BMC
PCIe

1 PCIe 4.0 x8, 2 PCIe 4.0 x16, 2 PCIe 4.0 x8 SlimSAS connector
TPM

1 TPM Header
BIOS Features

ACPI 6.0RTC (Real Time Clock) WakeupSMBIOS 3.0 or later
Cores

Up to 40 cores
Video Output

1 VGA port(s)
LAN

2 RJ45 10 Gigabit Ethernet LAN ports4 RJ45 Gigabit Ethernet LAN ports
Serial Port

1 COM Port(s) (1 header)
Graphics

1 ASPEED AST2600 BMC port(s)
