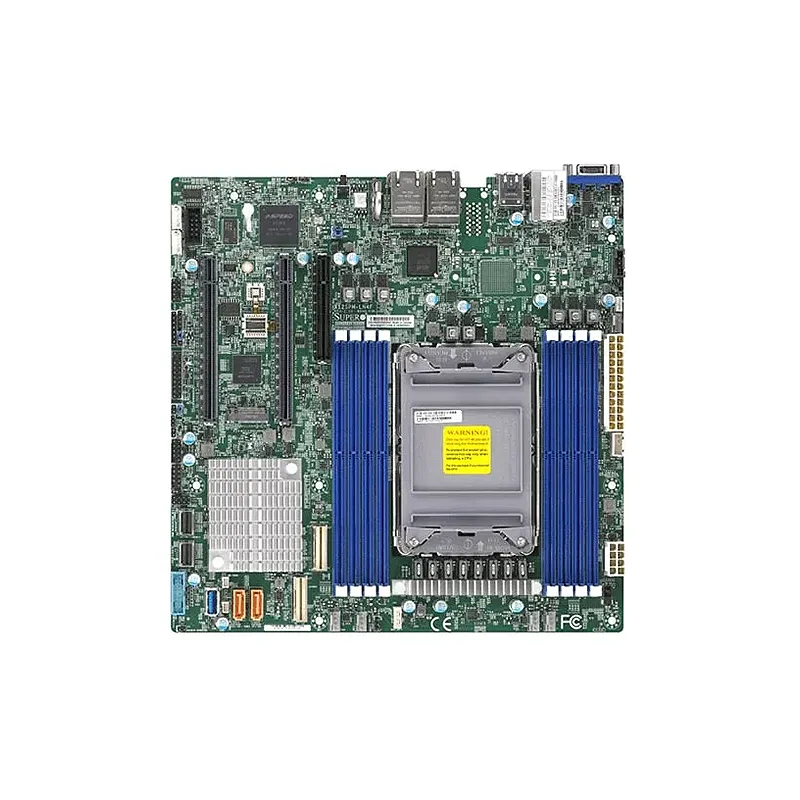

Supermicro MBD-X12SPM-LN4F

**Supermicro MBD-X12SPM-LN4F**: A high-performance single-socket server motherboard designed for 3rd Gen Intel Xeon Scalable (Ice Lake) processors, featuring 16 DDR4 DIMM slots supporting up to 6TB (with Optane PMem 200) for memory-intensive tasks. Offers expansive connectivity with PCIe 4.0 slots (3x x16, 1x x8), dual M.2, and 8x SATA3 ports. Quad 10GBase-T Ethernet via Intel X550-AT2 ensures ultra-fast networking, while an integrated ASPEED AST2600 BMC enables advanced remote management (IPMI 2.0). Security features include TPM 2.0 and Secure Boot. Ideal for AI, cloud, HPC, and enterprise workloads, its USP lies in blending massive memory capacity, PCIe 4.0 bandwidth, and enterprise-grade manageability in a scalable, energy-efficient platform.

$Quote5 pcs (MOQ) Minimum Order Quantity

SKU MBD-X12SPM-LN4F Categories , , Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

Product SKUs

  • MBD-X12SPM-LN4F

Physical Stats

  • Form Factor
    microATX
  • Dimension
    9.6″ x 9.6″ (24.38cm x 24.38cm)

Processor

  • CPU
    3rd Gen Intel Xeon Scalable processors
    Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP
  • Core
    Up to 40 cores

System Memory

  • Memory Capacity
    8 DIMM slots
    Up to 2TB Intel Optane Persistent Memory 200 Series
    Up to 2TB 3DS ECC LRDIMM, DDR4-3200MT/s; Up to 2TB 3DS ECC RDIMM, DDR4-3200MT/s
  • Memory Type
    ECC , DDR4 LRDIMM (3DS), RDIMM (3DS)
  • DIMM Sizes
    LRDIMM 3DS: 128GB, 256GB
    LRDIMM: 64GB, 128GB
    RDIMM: 8GB, 16GB, 32GB, 64GB
  • Memory Voltage
    1.2V
  • Error Detection
    Corrects single-bit errors

On-Board Devices

  • Chipset
    Intel C621A
  • SATA
    Intel C621A controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  • IPMI
    ASPEED AST2600 BMC
  • Graphics
    1 ASPEED AST2600 BMC port(s)
  • Network Controllers
    Quad LAN with 1GbE with Intel I350-AM4

Input / Output

  • SATA
    10 SATA3 (6Gbps) port(s)
  • LAN
    4 RJ45 Gigabit Ethernet LAN ports
  • USB
    6 USB 2.0 port(s) (4 via header; 2 rear)
    5 USB 3.2 Gen1 port(s) (2 via header; 2 rear; 1 type A)
  • Video Output
    1 VGA port(s)
  • Serial Port
    1 COM Port(s) (1 header)
  • DOM
    2 SATA DOM (Disk on Module) power connector support
  • TPM
    1 TPM Header

Expansion Slots

  • PCIe
    2 PCIe 4.0 x16,
    1 PCIe 4.0 x8,
    2 PCIe 4.0 x8 SlimSAS connector
  • M.2
    M.2 Interface: 1 SATA/PCIe 3.0 x4
    Form Factor: 2280, 22110
    Key: M-Key

System BIOS

  • BIOS Type
    AMI UEFI
  • BIOS Features
    ACPI 6.0
    RTC (Real Time Clock) Wakeup
    SMBIOS 3.0 or later

Management

  • Power Configurations
    Power-on mode for AC power recovery, ACPI Power Management
BIOS Features

ACPI 6.0RTC (Real Time Clock) WakeupSMBIOS 3.0 or later
Graphics

1 ASPEED AST2600 BMC port(s)
TPM

1 TPM Header
Network Controllers

Quad LAN with 1GbE with Intel I350-AM4
M.2

22110Key: M-Key, M.2 Interface: 1 SATA/PCIe 3.0 x4Form Factor: 2280
Chipset

Intel C621A
DIMM Sizes

128GBRDIMM: 8GB, 16GB, 256GBLRDIMM: 64GB, 32GB, 64GB, LRDIMM 3DS: 128GB
BIOS Type

AMI UEFI
LAN

4 RJ45 Gigabit Ethernet LAN ports
Video Output

1 VGA port(s)
DOM

DOM
Dimension

9.6" x 9.6" (24.38cm x 24.38cm)
PCIe

1 PCIe 4.0 x8, 2 PCIe 4.0 x16, 2 PCIe 4.0 x8 SlimSAS connector
USB

6 USB 2.0 port(s) (4 via header; 2 rear)5 USB 3.2 Gen1 port(s) (2 via header; 2 rear; 1 type A)
Form Factor

Micro-ATX
Memory Type

DDR4 LRDIMM (3DS), ECC, RDIMM (3DS)
Application

Server
IPMI

ASPEED AST2600 BMC
Memory Voltage

1.2V
CPU

3rd Gen Intel Xeon Scalable processorsSingle Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP
Serial Port

1 COM Port(s) (1 header)
SATA

10 SATA3 (6Gbps) port(s)
Memory Capacity

8 DIMM slotsUp to 2TB Intel Optane Persistent Memory 200 SeriesUp to 2TB 3DS ECC LRDIMM, DDR4-3200MT/s, DDR4-3200MT/s; Up to 2TB 3DS ECC RDIMM
Error Detection

Corrects single-bit errors
Core

Up to 40 cores
