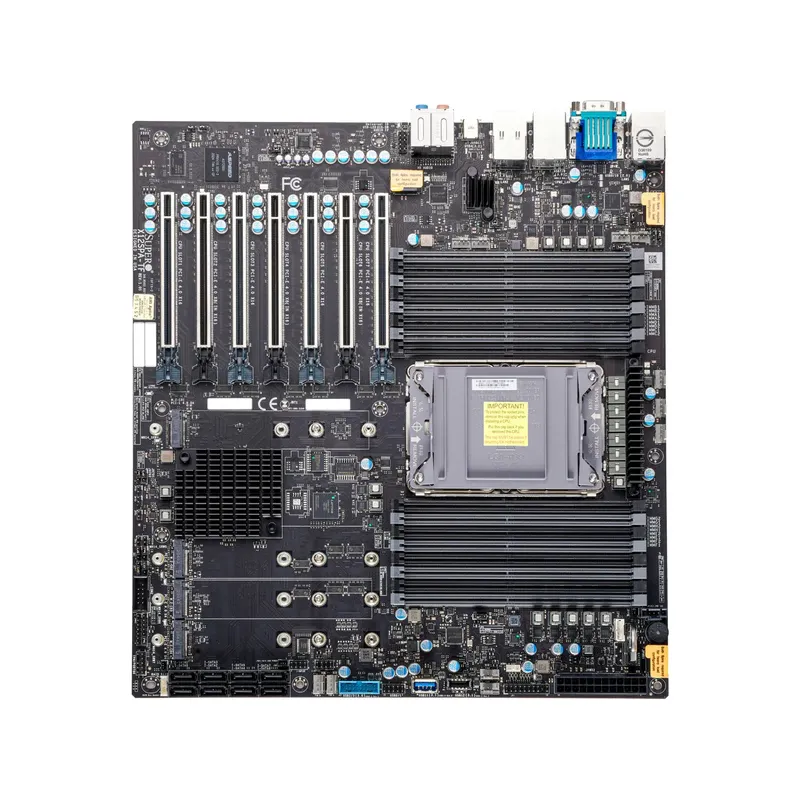

* NOTE: Image may not exactly match the product

Supermicro MBD-X12SPA-TF

**Supermicro MBD-X12SPA-TF**: A high-performance ATX motherboard built for Intel Xeon Scalable (Ice Lake) processors, delivering enterprise-grade power and scalability. Features 16 DDR4-3200 DIMMs (up to 4TB RAM), 8x SATA3, 3x M.2 slots, and 7 PCIe 4.0 slots for expansive storage and GPU/accelerator support. Dual 10G LAN ensures ultra-fast networking, while integrated ASpeed AST2600 BMC enables secure remote management. Optimized for AI, data analytics, and cloud workloads, it combines reliability, thermal efficiency, and future-proof connectivity in a compact form factor. Ideal for data centers and HPC environments demanding peak performance and scalability.

$Quote1 Piece(MOQ)

SKU MBD-X12SPA-TF Categories , Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

Product SKUs

  • MBD-X12SPA-TF

Physical Stats

  • Form Factor
    E-ATX
  • Dimension
    13″ x 12″ (33.02cm x 30.48cm)

Processor

  • CPU
    3rd Gen Intel Xeon Scalable processors, Intel Xeon W-3300 Processor
    Single Socket Socket P+ (LGA-4189) supported, CPU TDP supports Up to 270W TDP
  • Core
    Up to 40 cores

System Memory

  • Memory Capacity
    16 DIMM slots
    Up to 4TB Intel Optane Persistent Memory 200 Series, DDR4-3200MT/s
    Up to 4TB 3DS ECC LRDIMM, DDR4-3200MT/s; Up to 4TB 3DS ECC RDIMM, DDR4-3200MT/s
  • Memory Type
    ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
  • DIMM Sizes
    4GB, 8GB, 16GB, 32GB, 64GB, 128GB
  • Memory Voltage
    1.2V

On-Board Devices

  • Chipset
    Intel C621A
  • SATA
    Intel C621A controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  • IPMI
    ASPEED AST2500
  • Audio
    ALC 888S HD Audio
  • Graphics
    1 ASPEED AST2500 BMC port(s)
    VGA connector is dedicated for IPMI.
  • Network Controllers
    Single LAN with Intel Ethernet Controller I210-AT
    Single LAN with Realtek RTL8211F PHY (dedicated IPMI)
    Single LAN with Marvell AQC113

Input / Output

  • LAN
    1 RJ45 Dedicated IPMI LAN port
    1 RJ45 Gigabit Ethernet LAN ports
    1 RJ45 10GBase-T ports
  • USB
    4 USB 2.0 port(s) (2 via header; 2 rear)
    6 USB 3.2 Gen1 port(s) (2 via header; 4 rear)
    1 USB 3.2 Gen2x2 port(s) (1 rear type C)
    2 USB 3.2 Gen2 port(s) (1 type A; 1 type C)
  • Video Output
    1 VGA port(s)
  • Serial Port
    2 COM Port(s) (1 header; 1 rear)
  • DOM
    1 SATA DOM power connector (Disk on Module) port
  • TPM
    1 TPM Header

Expansion Slots

  • PCIe
    4 PCIe 4.0 x16,
    3 PCIe 4.0 x8 (in x16 slot), PCIe x16 Slot#1 shares with M.2, Slot#2 shares with Slot#3 (NA/16,8/8), Slot#4 shares with Slot#5 (NA/16,8/8), Slot#6 shares with Slot#7 (NA/16,8/8)
  • M.2
    M.2 Interface: 4 PCIe 4.0 x4
    Form Factor: 2260/2280/22110
    Key: M-Key

System BIOS

  • BIOS Type
    256MB SPI Flash with AMI BIOS
  • BIOS Features
    ACPI 3.0 / 4.0
    SMBIOS 2.7
    PCI FW 3.0
    RTC (Real Time Clock) Wakeup

Management

  • System Management Software
    SuperDoctor 5, IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
  • Power Configurations
    Power-on mode for AC power recovery, ACPI Power Management, CPU thermal trip support for processor protection, Main Switch Override Mechanism
Size

33.02cmx30.48cm
USB Ports

4 USB 2.0 port(s) (2 rear; 2 via header) 6 USB 3.2 Gen1 port(s) (2 via header; 4 rear) 1 USB 3.2 Gen2x2 port(s) (1 rear type C) 2 USB 3.2 Gen2 port(s) (1 type A; 1 type C)
Product Name

Supermicro MBD-X12SPA-TF
Application

Server
Brand

Supermicro
Packaging Details

Bulk
Chipset

Intel C621A Series
Max Memory Size

4 TB
CPU Socket Type

Intel LGA4189
CPU Brand

Intel
Memory

Up to 4TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz Up to 4TB Intel Optane Persistent Memory, DDR4-3200MHz, in 16 DIMM slots
Warranty

1 Year
Internal I/O Connectors

4 PCI-E 4.0 x16, 3 PCI-E 4.0 x8 (in x16 slot) M.2 Interface: 4 PCI-E 4.0 x4 M.2 Form Factor: 2260/2280/22110 M.2 Key: M-Key M.2 support to RAID 0,1, 5, 10, VROC key is required for RAID.
Products Status

New
Socket

LGA4189(Socket P+)
Back I/O Ports

1 VGA port, VGA connector is dedicated for IPMI.
Form Factor

E-ATX
