Product SKUs

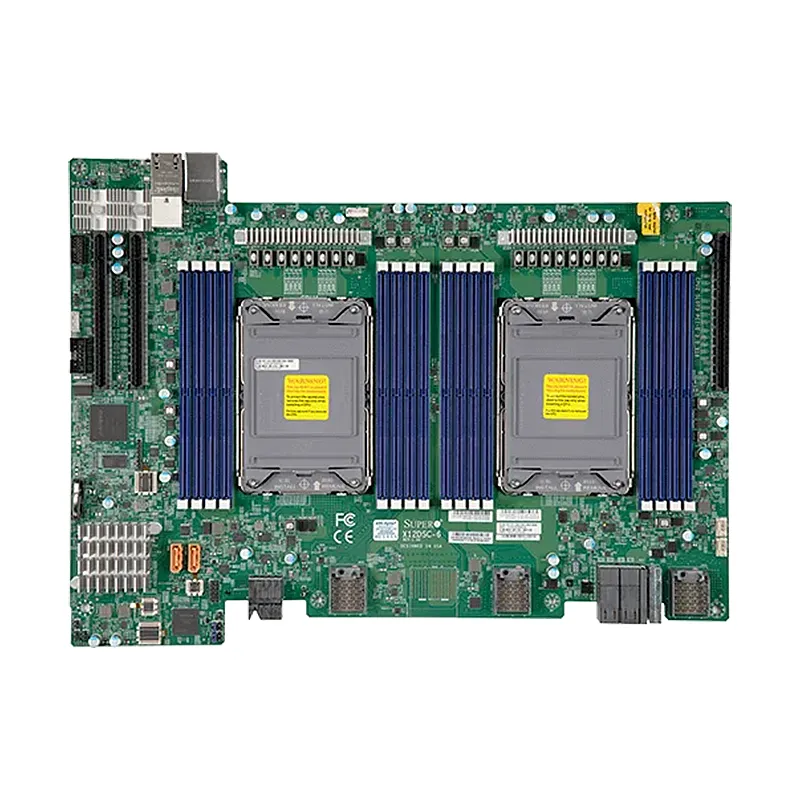

- MBD-X12DSC-6
Physical Stats
- Form Factor
Proprietary
- Dimension
14.8″ x 10.9″ (37.59cm x 27.69cm)
Processor
- CPU
3rd Gen Intel Xeon Scalable processors
Dual Socket Socket P+ (LGA-4189) supported, CPU TDP supports Up to 270W TDP, 3 UPI up to 11.2 GT/s - Core
Up to 40 cores
System Memory
- Memory Capacity
16 DIMM slots
Up to 2TB Intel Optane Persistent Memory 200 Series, DDR4-3200MT/s
Up to 4TB ECC LRDIMM, DDR4-3200MT/s; Up to 4TB ECC RDIMM, DDR4-3200MT/s - Memory Type
3200/2933/2666 MT/s ECC DDR4 LRDIMM, RDIMM
- DIMM Sizes
16GB, 32GB, 64GB, 128GB, 256GB
- Memory Voltage
1.2V
- Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
- Chipset
Intel C621A
- IPMI
ASPEED AST2600 BMC
- Network Controllers
Dual LAN with 10GBase-T with Intel X550
Input / Output
- SATA
2 SATA3 (6Gbps) port(s)
- LAN
2 RJ45 10GBase-T ports
- USB
2 USB 3.1 Gen1 port(s) (2 rear)
- Video Output
1 VGA (Rear/Internal) port(s)
- Serial Port
1 COM Port(s) (1 header)
- DOM
2 SATA DOM power connector (Disk on Module) port
- TPM
1 TPM Header
Expansion Slots
- PCIe
3 PCIe 4.0 x16
- M.2
Form Factor: 22110
System BIOS
- BIOS Type
AMI UEFI
Management
- System Management Software
SuperDoctor 5, IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support, IPMICFG, IPMIView for Linux/Windows, SMCIPMITool, SSM, SUM, SPM
- Power Configurations
ACPI / ACPM Power Management
