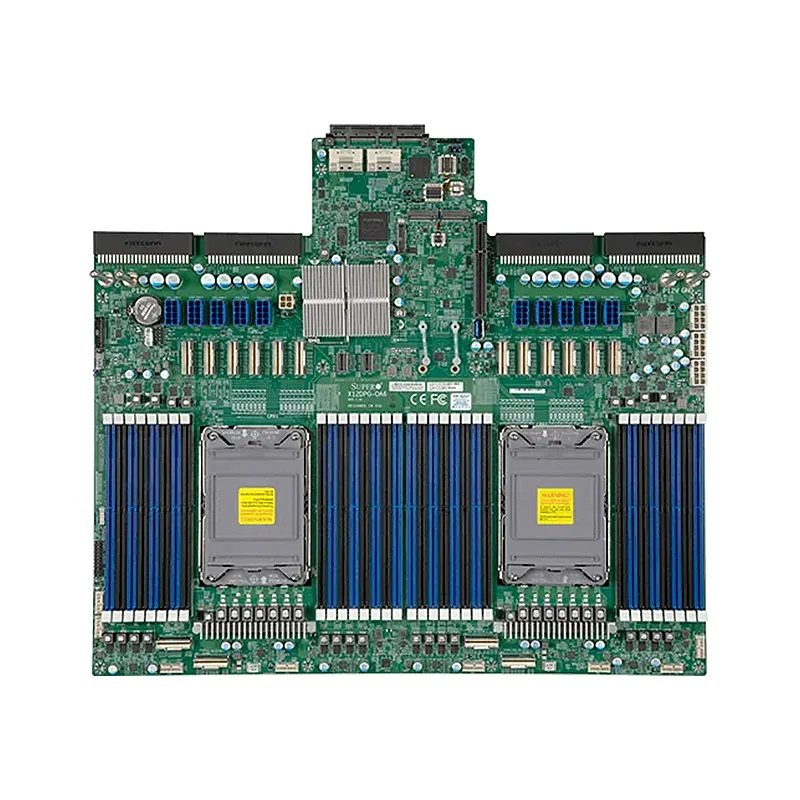

Supermicro MBD-X12DPG-OA6

**Supermicro MBD-X12DPG-OA6: High-Performance Dual-Processor Server Motherboard**
Designed for enterprise and data center workloads, this E-ATX motherboard supports dual 3rd Gen Intel Xeon Scalable processors (Ice Lake) and the Intel C621A chipset, delivering exceptional compute density. Features include 16 DDR4-3200 DIMM slots (up to 8TB RAM), seven PCIe 4.0 x16 slots for high-speed storage/GPUs, dual 10GBase-T LAN ports, and multiple SATA/NVMe options. Integrated IPMI 2.0 enables remote management, while optimized power efficiency and robust thermal design ensure reliability. Ideal for AI, HPC, and cloud environments, it offers unmatched scalability, performance, and enterprise-grade security. **USP:** Combines cutting-edge PCIe 4.0 bandwidth, dual 10G networking, and flexible expansion in a single platform.

$Quote1 Piece(MOQ)

SKU MBD-X12DPG-OA6 Categories , , Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

Product SKUs

  • MBD-X12DPG-OA6

Physical Stats

  • Form Factor
    Proprietary
  • Dimension
    15″ x 17″ (38.1cm x 43.18cm)

Processor

  • CPU
    3rd Gen Intel Xeon Scalable processors
    Dual Socket Socket P+ (LGA-4189) supported, CPU TDP supports Up to 270W TDP, 3 UPI up to 11.2 GT/s
  • Core
    Up to 40 cores

System Memory

  • Memory Capacity
    32 DIMM slots
    Up to 8GB Unbuffered Intel Optane Persistent Memory 200 Series, DDR4-3200MT/s
    Up to 8TB 3DS ECC LRDIMM, DDR4-3200MT/s; Up to 8TB 3DS ECC RDIMM, DDR4-3200MT/s
  • Memory Type
    ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
  • DIMM Sizes
  • Memory Voltage
    1.2V

On-Board Devices

  • Chipset
    Intel C621A
  • IPMI
    ASPEED AST2600 BMC
  • Network Controllers
    Dual LAN with 1GbE LAN via Intel i350-AM2

Input / Output

  • SATA
    8 SATA3 (6Gbps) port(s)
  • USB
    5 USB 3.2 Gen2 port(s) (2 via header; 2 rear; 1 type A)
  • Video Output
    1 VGA port(s)
  • Serial Port
    1 COM Port(s) (1 header)

Expansion Slots

  • PCIe
    1 PCIe 4.0 x16 AIOM,
    16 PCIe 4.0 x8
  • M.2
    M.2 Interface: 2 PCIe 3.0 x4
    Form Factor: 2280/22110

System BIOS

  • BIOS Type
    AMI UEFI

Management

  • System Management Software
    IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
  • Power Configurations
    ACPI Power Management, Power supply monitoring
Network Controllers

Dual LAN with 1GbE LAN via Intel i350-AM2
M.2

M.2 Interface: 2 PCIe 3.0 x4Form Factor: 2280/22110
Chipset

Intel C621A
BIOS Type

AMI UEFI
Video Output

1 VGA port(s)
Dimension

15" x 17" (38.1cm x 43.18cm)
PCIe

1 PCIe 4.0 x16 AIOM, 16 PCIe 4.0 x8
USB

5 USB 3.2 Gen2 port(s) (2 via header; 2 rear; 1 type A)
Form Factor

Proprietary
Memory Type

ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
Application

Server
IPMI

ASPEED AST2600 BMC
Memory Voltage

1.2V
CPU

3 UPI up to 11.2 GT/s, 3rd Gen Intel Xeon Scalable processorsDual Socket Socket P+ (LGA-4189) supported, CPU TDP supports Up to 270W TDP
Hardware

Trusted Platform Module (TPM) 2.0
Serial Port

1 COM Port(s) (1 header)
SATA

8 SATA3 (6Gbps) port(s)
Memory Capacity

32 DIMM slotsUp to 8GB Unbuffered Intel Optane Persistent Memory 200 Series, DDR4-3200MT/s, DDR4-3200MT/s; Up to 8TB 3DS ECC RDIMM, DDR4-3200MT/sUp to 8TB 3DS ECC LRDIMM
Core

Up to 40 cores
