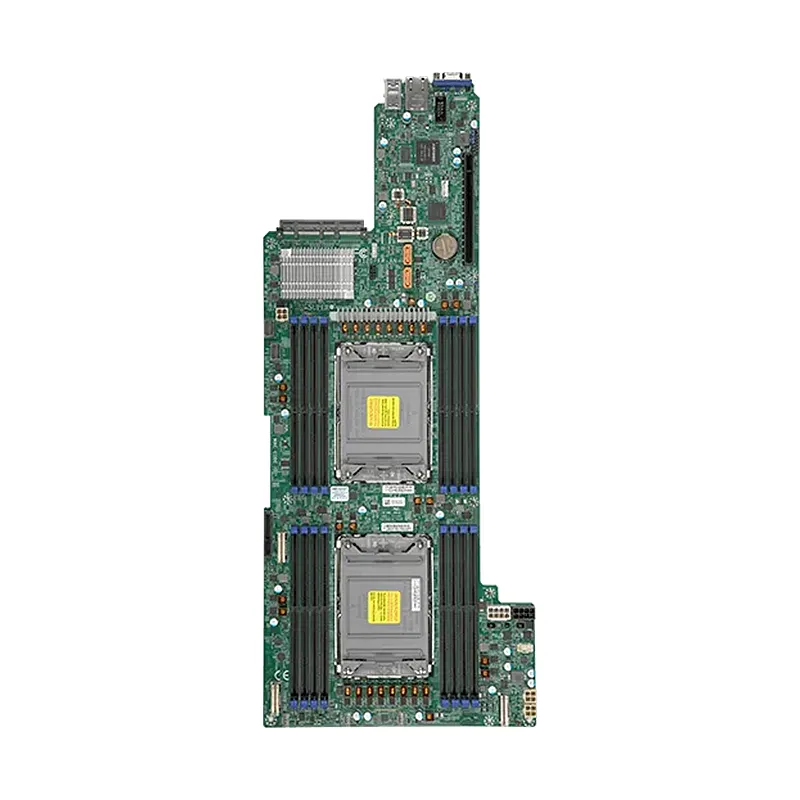

* NOTE: Image may not exactly match the product

Supermicro MBD-X12DPFR-AN6

: A high-performance dual-socket server motherboard designed for 3rd Gen Intel Xeon Scalable processors, delivering exceptional compute power for data centers, AI, and enterprise workloads. Features 32 DDR4-3200 DIMM slots (up to 4TB RAM), seven PCIe 4.0 x16 slots for scalable expansion, dual 10G LAN, and eight SATA3 ports plus dual M.2 for versatile storage. Integrated ASPEED AST2600 BMC enables advanced remote management via IPMI, ensuring reliability and ease of maintenance. Ideal for HPC, cloud, and virtualization, it combines cutting-edge connectivity, massive memory support, and robust scalability in an E-ATX form factor, optimizing performance for demanding environments.

Read More

$Quote1 Piece(MOQ)

SKU MBD-X12DPFR-AN6 Categories , , Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

Product SKUs

  • MBD-X12DPFR-AN6

Physical Stats

  • Form Factor
    Proprietary FatTwin
  • Dimension
    8.53″ x 19.66″ (21.59cm x 48.26cm)

Processor

  • CPU
    3rd Gen Intel Xeon Scalable processors
    Dual Socket Socket P+ (LGA-4189) supported, CPU TDP supports Up to 165W TDP, 3 UPI up to 10.4 GT/s

System Memory

  • Memory Capacity
    16 DIMM slots
    Up to 4TB Intel Optane Persistent Memory 200 Series, DDR4-3200MT/s
    Up to 2TB 3DS ECC LRDIMM, DDR4-3200MT/s; Up to 2TB 3DS ECC RDIMM, DDR4-3200MT/s
  • Memory Type
    ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
  • DIMM Sizes
    32GB, 64GB, 128GB
    LRDIMM: 32GB, 64GB, 128GB
    RDIMM: 32GB, 64GB, 128GB
  • Memory Voltage
    1.2V
  • Error Detection
    Corrects single-bit errors
    Detects double-bit errors (using ECC memory)

On-Board Devices

  • Chipset
    Intel C621A
  • SATA
    Intel C621A controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  • IPMI
    ASPEED AST2600 BMC
  • Graphics
    1 ASPEED AST2600 BMC port(s)
  • Network Controllers
    Single LAN, Networking options provided via AIOM module

Input / Output

  • SATA
    10 SATA3 (6Gbps) port(s)
  • LAN
    1 RJ45 Dedicated IPMI LAN port
  • USB
    2 USB 3.2 Gen1 port(s) (2 rear)
  • Video Output
    1 VGA port(s)
  • Serial Port
    1 COM Port(s) (1 header)
  • DOM
    2 SATA DOM (Disk on Module) power connector support
  • TPM
    1 TPM Header

Expansion Slots

  • PCIe
    1 PCIe 4.0 x16 Right Riser Slot,
    1 PCIe 4.0 x8 connector for SMC add-on cards,
    1 PCIe 4.0 x16 AIOM, OCP 3.0 compliant

System BIOS

  • BIOS Type
    AMI UEFI

Management

  • Power Configurations
    ACPI Power Management
Graphics 1 ASPEED AST2600 BMC port(s)
TPM 1 TPM Header
Network Controllers Networking options provided via AIOM module, Single LAN
Chipset Intel C621A
DIMM Sizes 128GB, 128GBLRDIMM: 32GB, 128GBRDIMM: 32GB, 32GB, 64GB
BIOS Type AMI UEFI
LAN 1 RJ45 Dedicated IPMI LAN port
Video Output 1 VGA port(s)
DOM DOM
Dimension 8.53" x 19.66" (21.59cm x 48.26cm)
PCIe 1 PCIe 4.0 x16 AIOM, 1 PCIe 4.0 x16 Right Riser Slot, 1 PCIe 4.0 x8 connector for SMC add-on cards, OCP 3.0 compliant
USB 2 USB 3.2 Gen1 port(s) (2 rear)
Form Factor Proprietary FatTwin
Memory Type ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
Application Server
IPMI ASPEED AST2600 BMC
Memory Voltage 1.2V
CPU 3 UPI up to 10.4 GT/s, 3rd Gen Intel Xeon Scalable processorsDual Socket Socket P+ (LGA-4189) supported, CPU TDP supports Up to 165W TDP
Hardware Trusted Platform Module (TPM) 2.0
Serial Port 1 COM Port(s) (1 header)
SATA 10 SATA3 (6Gbps) port(s)
Memory Capacity 16 DIMM slotsUp to 4TB Intel Optane Persistent Memory 200 Series, DDR4-3200MT/s, DDR4-3200MT/s; Up to 2TB 3DS ECC RDIMM, DDR4-3200MT/sUp to 2TB 3DS ECC LRDIMM
Error Detection Corrects single-bit errorsDetects double-bit errors (using ECC memory)
