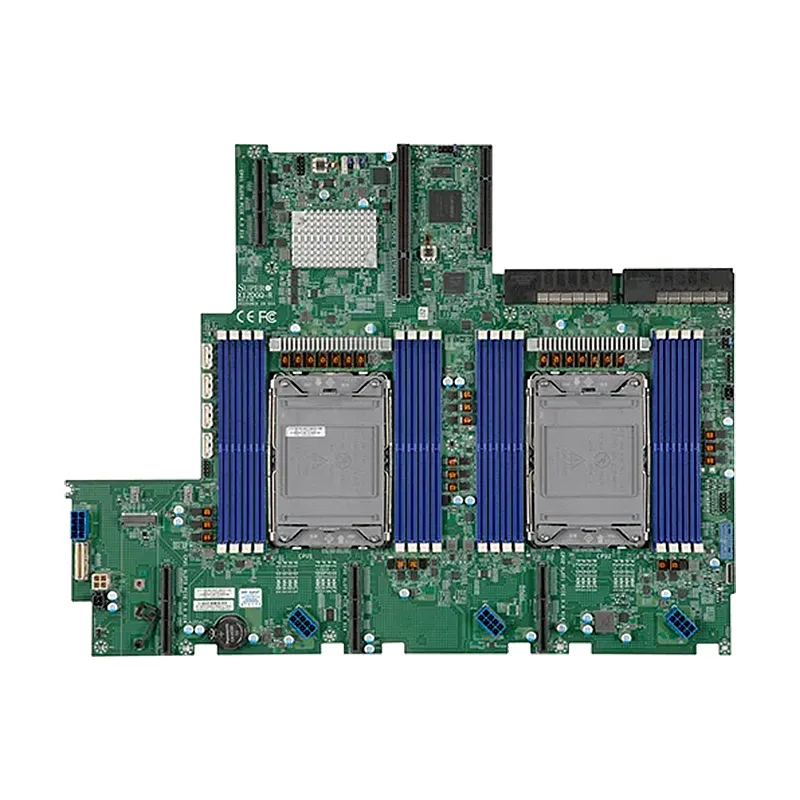

Supermicro MBD-X12DGQ-R

Product SKUs

MBD-X12DGQ-R

Physical Stats

Form Factor
Proprietary
Dimension
16.9″ x 12.9″ (42.93cm x 32.77cm)

Processor

CPU
3rd Gen Intel Xeon Scalable processors
Dual Socket Socket P+ (LGA-4189) supported, CPU TDP supports Up to 270W TDP, 3 UPI up to 11.2 GT/s
Core
Up to 40 cores

System Memory

Memory Capacity
16 DIMM slots
Up to 4TB Intel Optane Persistent Memory 200 Series, DDR4-3200MT/s
Up to 4TB ECC LRDIMM, DDR4-3200MT/s; Up to 4TB ECC RDIMM, DDR4-3200MT/s
Memory Type
3200/2933/2666 MT/s ECC DDR4 LRDIMM, RDIMM
DIMM Sizes
16GB, 32GB, 64GB, 128GB, 256GB
Memory Voltage
1.2V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)

On-Board Devices

Chipset
Intel C621A
SATA
Intel C621A controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI
ASPEED AST2600 BMC
Graphics
1 ASPEED AST2600 BMC port(s)
Network Controllers
Dual LAN with 10Gbase-T, via the AOM-PIO-I2XT installed on JSLOT6

Input / Output

USB
4 USB 3.2 Gen2 port(s) (2 Others front panel; 2 rear type A)
Video Output
1 VGA D-Sub Connector port(s)
Serial Port
1 COM Port(s) (1 header)

Expansion Slots

PCIe
1 PCIe 4.0 x32 Right Riser Slot,
4 PCIe 4.0 x16 (in x16 slot),
1 PCIe 4.0 x8 SlimSAS
M.2
M.2 Interface: 1 PCIe 4.0 x4
Form Factor: 2242/2260/2280/22110
Key: M-Key

System BIOS

BIOS Type
AMI UEFI

Graphics	1 ASPEED AST2600 BMC port(s)
Network Controllers	Dual LAN with 10Gbase-T, via the AOM-PIO-I2XT installed on JSLOT6
M.2	M.2 Interface: 1 PCIe 4.0 x4Form Factor: 2242/2260/2280/22110Key: M-Key
Chipset	Intel C621A
DIMM Sizes	128GB, 16GB, 256GB, 32GB, 64GB
BIOS Type	AMI UEFI
Video Output	1 VGA D-Sub Connector port(s)
Dimension	16.9" x 12.9" (42.93cm x 32.77cm)
PCIe	1 PCIe 4.0 x32 Right Riser Slot, 1 PCIe 4.0 x8 SlimSAS, 4 PCIe 4.0 x16 (in x16 slot)
USB	4 USB 3.2 Gen2 port(s) (2 Others front panel; 2 rear type A)
Form Factor	Proprietary
Memory Type	3200/2933/2666 MT/s ECC DDR4 LRDIMM, RDIMM
Application	Server
IPMI	ASPEED AST2600 BMC
Memory Voltage	1.2V
CPU	3 UPI up to 11.2 GT/s, 3rd Gen Intel Xeon Scalable processorsDual Socket Socket P+ (LGA-4189) supported, CPU TDP supports Up to 270W TDP
Hardware	Trusted Platform Module (TPM) 2.0
Serial Port	1 COM Port(s) (1 header)
SATA	1, 10, 5, Intel C621A controller for 4 SATA3 (6 Gbps) ports; RAID 0
Memory Capacity	16 DIMM slotsUp to 4TB Intel Optane Persistent Memory 200 Series, DDR4-3200MT/s, DDR4-3200MT/s; Up to 4TB ECC RDIMM, DDR4-3200MT/sUp to 4TB ECC LRDIMM
Error Detection	Corrects single-bit errorsDetects double-bit errors (using ECC memory)
Core	Up to 40 cores

Q1: ls the product original ?

A1 : Yes, all of our products are orginal. We have our own QC team who will strictly check product quality before shipment.

Q2. Payment methods?

We accept T/T, PayPal, Alibaba ect.

Q3. Shipping methods?

We have long term business-ship with FedEx, UPS and DHL with favorble price. You can choose any shipping method mentioned above based on your ease. You can also use your own shipping account or shipping forwarder.

Q4. How long is the lead time?

Usually 1-3 working days after payment. Feel free to send me exact models for checking.

Q5. How long is the warranty period?

Different products have different warranty periods. Usually 1~3 years warranty.
