| BIOS Features | Plug and Play (PnP)APM 1.2DMI 2.3PCI 2.3ACPI 1.0 / 2.0 / 3.0 / 4.0USB Keyboard supportHardware BIOS Virus protectionSMBIOS 2.7.1UEFI 2.3.1 |
|---|---|
| Graphics | 1 ASPEED AST2400 BMC port(s) |
| TPM | 1 TPM Header |
| Network Controllers | Dual LAN with Intel Ethernet Controller I210-AT |
| Chipset | Intel C236 |
| DIMM Sizes | 16GB, 4GB, 8GB |
| BIOS Type | 128MB SPI Flash EEPROM with AMI BIOS |
| Video Output | 1 VGA port(s) |
| Dimension | 9.6" x 9.6" (24.38cm x 24.38cm) |
| PCIe | 1 PCIe 3.0 x8, 1 PCIe 3.0 x8 (in x16 slot), 2 PCIe 3.0 x4 (in x8 slot) |
| USB | 6 USB 2.0 port(s) (4 via header; 2 rear)2 USB 3.0 port(s) (2 rear)3 USB 3 port(s) (2 via header; 1 type A) |
| Form Factor | Micro-ATX |
| Memory Type | 2400/2133/1866/1600 MT/s SDRAM 72-bit, 288-pin gold-plated DIMMs |
| Application | Server |
| IPMI | ASPEED AST2400 BMC |
| Memory Voltage | 1.2V |
| CPU | CPU TDP supports Up to 80W TDP, Intel 7th/6th Generation Core i3 series, Intel Celeron, Intel Pentium, Intel Xeon processor E3-1200 v6/v5Single Socket LGA-1151 (Socket H4) supported |
| Serial Port | 2 COM Port(s) (1 header; 1 rear) |
| SATA | 1, 10, 5, Intel C236 controller for 8 SATA3 (6 Gbps) ports; RAID 0 |
| Memory Capacity | 4 DIMM slots64GB Unbuffered ECC UDIMM, DDR4-2400MT/s |
| Error Detection | Corrects single-bit errors |

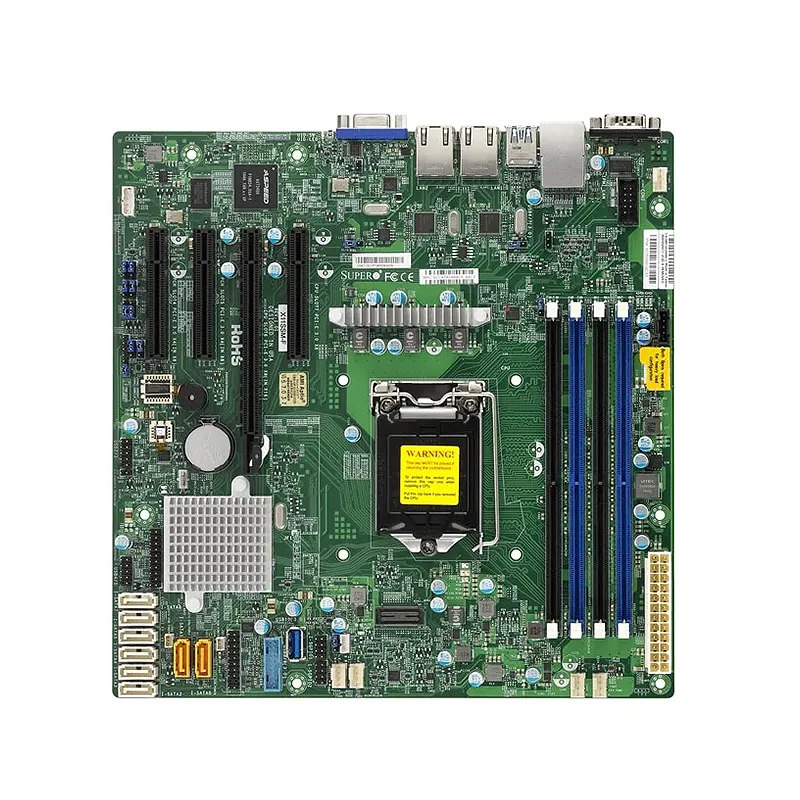

Supermicro MBD-X11SSM-F-B
**Supermicro MBD-X11SSM-F-B: High-Efficiency Server Motherboard**
Built for reliability and scalability, this Micro-ATX motherboard supports Intel Xeon E3-1200 v5/v6 and 6th/7th Gen Core™ processors, ideal for SMBs and data centers. Features include four DDR4 ECC UDIMM slots (64GB max) for data integrity, six SATA3 ports with RAID 0/1/5/10, and PCIe 3.0 expansion for GPUs or storage. Dual Intel Gigabit LAN ensures network redundancy, while IPMI 2.0 with KVM enables remote management. Compact design, 24/7 operation readiness, and enterprise-grade components make it a cost-effective, future-proof solution for cloud, storage, and virtualization workloads.
