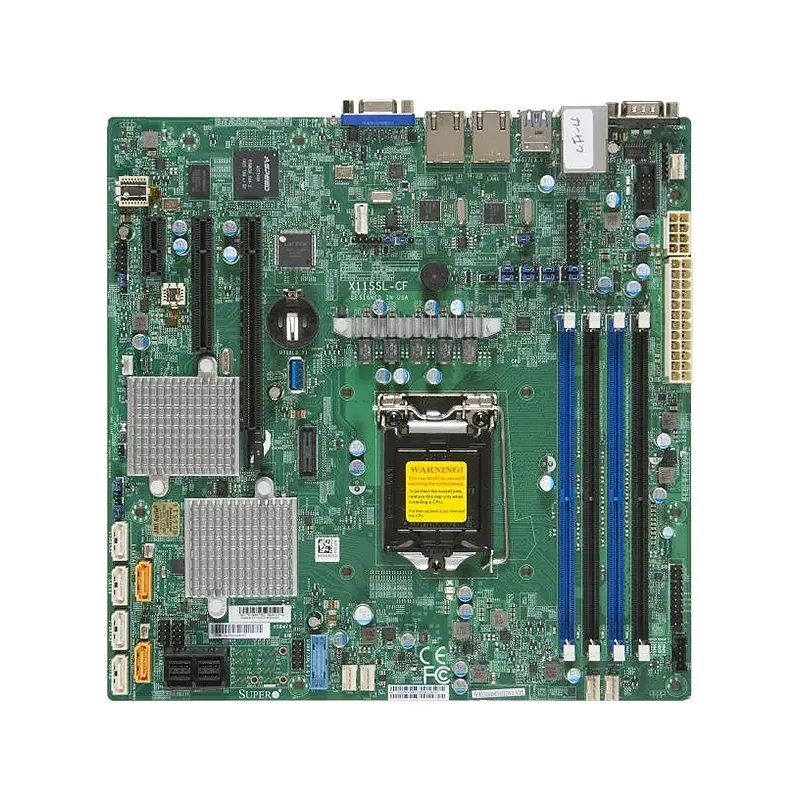

* NOTE: Image may not exactly match the product

Supermicro MBD-X11SSL-CF

Supermicro MBD-X11SSL-CF is a high-performance Micro-ATX server motherboard designed for reliability and scalability in enterprise environments. Built with an Intel C232 chipset, it supports Intel Xeon E3-1200 v5/v6 and 6th/7th Gen Core™ processors, delivering robust computing power for data-intensive tasks. Key features include dual Gigabit Ethernet ports (Intel I210-AT), IPMI 2.0 with dedicated LAN for remote management, and support for up to 64GB DDR4 ECC UDIMM memory, ensuring data integrity. Six SATA3 ports, an M.2 slot (PCIe NVMe), and PCIe 3.0 expansion slots offer flexible storage and connectivity. Ideal for NAS, cloud, and virtualization, its compact design, 24/7 durability, and enterprise-grade security make it a cost-effective, space-efficient solution for scalable server deployments.

$Quote5 pcs (MOQ) Minimum Order Quantity

SKU MBD-X11SSL-CF Categories , , Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

Product SKUs

  • MBD-X11SSL-CF

Physical Stats

  • Form Factor
    Micro-ATX
  • Dimension
    9.6″ x 9.6″ (24.38cm x 24.38cm)

Processor

  • CPU
    Intel Celeron, Intel Pentium, Intel 7th/6th Generation Core i3 series, Intel Xeon processor E3-1200 v6/v5
    Single Socket Socket H4 (LGA-1151) supported, CPU TDP supports Up to 80W TDP

System Memory

  • Memory Capacity
    4 DIMM slots
    64GB Unbuffered ECC UDIMM, DDR4-2400MT/s
  • Memory Type
    2400/2133/1866/1600 MT/s SDRAM 72-bit, 288-pin gold-plated DIMMs
  • DIMM Sizes
    4GB, 8GB, 16GB
  • Memory Voltage
    1.2V
  • Error Detection
    Corrects single-bit errors

On-Board Devices

  • Chipset
    Intel C232
  • SAS
    LSI3008 controller for 8 SAS3 (12 Gbps) ports; RAID 0,1,10
  • SATA
    Intel C232 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  • IPMI
    ASPEED AST2400 BMC
  • Graphics
    1 ASPEED AST2400 BMC port(s)
  • Network Controllers
    Dual LAN with Intel Ethernet Controller I210-AT

Input / Output

  • USB
    6 USB 2.0 port(s) (4 via header; 2 rear)
    2 USB 3.0 port(s) (2 rear)
    3 USB 3 port(s) (2 via header; 1 type A)
  • Video Output
    1 VGA port(s)
  • Serial Port
    2 COM Port(s) (1 header; 1 rear)
  • TPM
    1 TPM Header

Expansion Slots

  • PCIe
    1 PCIe 3.0 x8 (in x16 slot),
    1 PCIe 3.0 x4 (in x8 slot),
    1 PCIe 3.0 x1

System BIOS

  • BIOS Type
    128MB SPI Flash EEPROM with AMI BIOS
  • BIOS Features
    ACPI 1.0 / 2.0 / 3.0 / 4.0
    APM 1.2
    DMI 2.3
    Hardware BIOS Virus protection
    PCI 2.3
    Plug and Play (PnP)
    SMBIOS 2.7.1
    UEFI 2.3.1
    USB Keyboard support

Management

  • Power Configurations
    Power-on mode for AC power recovery, ACPI Power Management
Brand

Supermicro
Application

Server
Form Factor

Micro-ATX
Chipset

Intel C232
Products Status

New
USB

6 USB 2.0 port(s) (4 via header; 2 rear)2 USB 3.0 port(s) (2 rear)3 USB 3 port(s) (2 via header; 1 type A)
BIOS Type

128MB SPI Flash EEPROM with AMI BIOS
Memory Capacity

4 DIMM slots64GB Unbuffered ECC UDIMM, DDR4-2400MT/s
Memory Type

2400/2133/1866/1600 MT/s SDRAM 72-bit, 288-pin gold-plated DIMMs
Memory Voltage

1.2V
DIMM Sizes

16GB, 4GB, 8GB
CPU

CPU TDP supports Up to 80W TDP, Intel 7th/6th Generation Core i3 series, Intel Celeron, Intel Pentium, Intel Xeon processor E3-1200 v6/v5Single Socket Socket H4 (LGA-1151) supported
Error Detection

Corrects single-bit errors
SATA

1, 10, 5, Intel C232 controller for 6 SATA3 (6 Gbps) ports; RAID 0
Dimension

9.6" x 9.6" (24.38cm x 24.38cm)
Network Controllers

Dual LAN with Intel Ethernet Controller I210-AT
IPMI

ASPEED AST2400 BMC
PCIe

1 PCIe 3.0 x1, 1 PCIe 3.0 x4 (in x8 slot), 1 PCIe 3.0 x8 (in x16 slot)
TPM

1 TPM Header
BIOS Features

ACPI 1.0 / 2.0 / 3.0 / 4.0APM 1.2DMI 2.3Hardware BIOS Virus protectionPCI 2.3Plug and Play (PnP)SMBIOS 2.7.1UEFI 2.3.1USB Keyboard support
Video Output

1 VGA port(s)
Serial Port

2 COM Port(s) (1 header; 1 rear)
Graphics

1 ASPEED AST2400 BMC port(s)
