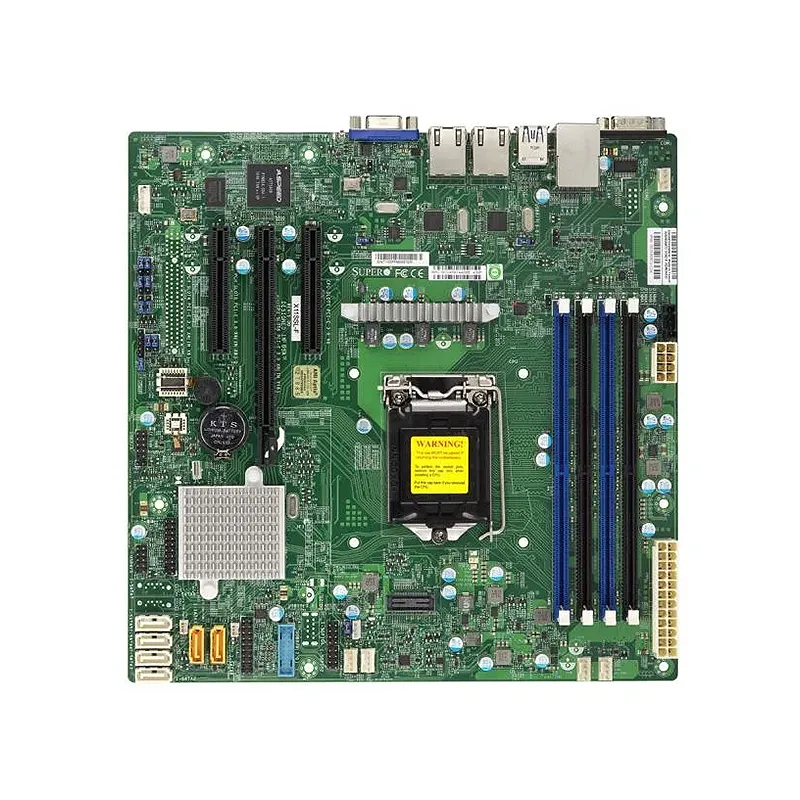

* NOTE: Image may not exactly match the product

Supermicro MBD-X11SSL

**Supermicro MBD-X11SSL: High-Performance Server Motherboard**
Built for reliability and scalability, the Supermicro MBD-X11SSL supports Intel Xeon E3-1200 v5 processors and Intel C236 chipset, delivering robust performance for enterprise and data center applications. Features include four DDR4 ECC UDIMM slots (up to 64GB), six SATA3 ports with RAID 0/1/5/10 support, PCIe 3.0 expansion slots, and dual Intel Gigabit LAN ports. Enhanced remote management via IPMI 2.0 with KVM ensures seamless administration, while a TPM header bolsters security. Compact ATX form factor, energy efficiency, and broad OS compatibility make it ideal for storage, networking, and virtualization. USP: Enterprise-grade durability, advanced remote control, and ECC memory for error-free operations.

$Quote1 Piece(MOQ)

SKU MBD-X11SSL Categories , , Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

Product SKUs

  • MBD-X11SSL

Physical Stats

  • Form Factor
    Micro-ATX
  • Dimension
    9.6″ x 9.6″ (24.38cm x 24.38cm)

Processor

  • CPU
    Intel Celeron, Intel Pentium, Intel 7th/6th Generation Core i3 series, Intel Xeon processor E3-1200 v6/v5
    Single Socket Socket H4 (LGA-1151) supported, CPU TDP supports Up to 80W TDP

System Memory

  • Memory Capacity
    4 DIMM slots
    64GB Unbuffered ECC UDIMM, DDR4-2400MT/s
  • Memory Type
    2400/2133/1866/1600 MT/s SDRAM 72-bit, 288-pin gold-plated DIMMs
  • DIMM Sizes
    4GB, 8GB, 16GB
  • Memory Voltage
    1.2V
  • Error Detection
    Corrects single-bit errors

On-Board Devices

  • Chipset
    Intel C232
  • SATA
    Intel C232 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  • Graphics
    1 ASPEED AST1400 port(s)
  • Network Controllers
    Dual LAN with Intel Ethernet Controller I210-AT

Input / Output

  • USB
    6 USB 2.0 port(s) (4 via header; 2 rear)
    2 USB 3.0 port(s) (2 rear)
    3 USB 3 port(s) (2 via header; 1 type A)
  • Video Output
    1 VGA port(s)
  • Serial Port
    1 COM Port(s) (1 rear)
  • TPM
    1 TPM Header

Expansion Slots

  • PCIe
    1 PCIe 3.0 x8 (in x16 slot),
    1 PCIe 3.0 x8,
    1 PCIe 3.0 x4 (in x8 slot)

System BIOS

  • BIOS Type
    128MB SPI Flash EEPROM with AMI BIOS
  • BIOS Features
    ACPI 1.0 / 2.0 / 3.0 / 4.0
    APM 1.2
    DMI 2.3
    Hardware BIOS Virus protection
    PCI 2.3
    Plug and Play (PnP)
    SMBIOS 2.7.1
    UEFI 2.3.1
    USB Keyboard support

Management

  • Power Configurations
    Power-on mode for AC power recovery, ACPI Power Management
BIOS Features

ACPI 1.0 / 2.0 / 3.0 / 4.0APM 1.2DMI 2.3Hardware BIOS Virus protectionPCI 2.3Plug and Play (PnP)SMBIOS 2.7.1UEFI 2.3.1USB Keyboard support
Graphics

1 ASPEED AST1400 port(s)
TPM

1 TPM Header
Network Controllers

Dual LAN with Intel Ethernet Controller I210-AT
Chipset

Intel C232
DIMM Sizes

16GB, 4GB, 8GB
BIOS Type

128MB SPI Flash EEPROM with AMI BIOS
Video Output

1 VGA port(s)
Dimension

9.6" x 9.6" (24.38cm x 24.38cm)
PCIe

1 PCIe 3.0 x4 (in x8 slot), 1 PCIe 3.0 x8, 1 PCIe 3.0 x8 (in x16 slot)
USB

6 USB 2.0 port(s) (4 via header; 2 rear)2 USB 3.0 port(s) (2 rear)3 USB 3 port(s) (2 via header; 1 type A)
Form Factor

Micro-ATX
Memory Type

2400/2133/1866/1600 MT/s SDRAM 72-bit, 288-pin gold-plated DIMMs
Application

Server
Memory Voltage

1.2V
CPU

CPU TDP supports Up to 80W TDP, Intel 7th/6th Generation Core i3 series, Intel Celeron, Intel Pentium, Intel Xeon processor E3-1200 v6/v5Single Socket Socket H4 (LGA-1151) supported
Serial Port

1 COM Port(s) (1 rear)
SATA

1, 10, 5, Intel C232 controller for 6 SATA3 (6 Gbps) ports; RAID 0
Memory Capacity

4 DIMM slots64GB Unbuffered ECC UDIMM, DDR4-2400MT/s
Error Detection

Corrects single-bit errors
