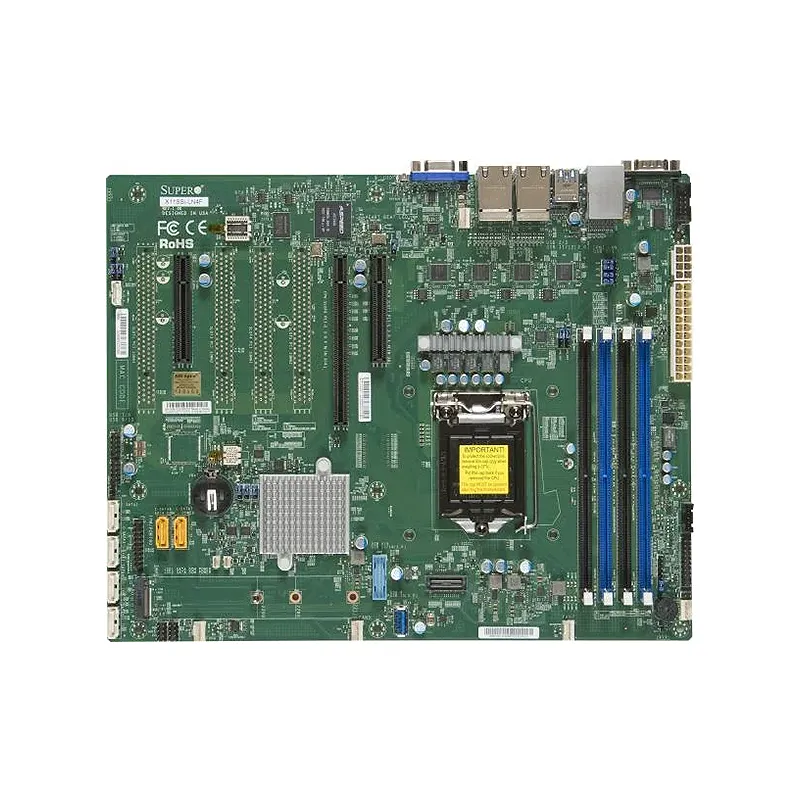

Supermicro MBD-X11SSi-LN4F

**Supermicro MBD-X11SSi-LN4F**: A compact, high-performance server motherboard built for reliability and scalability. Supports Intel Xeon E3-1200 v5/v6 and Core i3 processors, paired with Intel C236 chipset for ECC UDIMM memory (up to 64GB DDR4-2133) to ensure data integrity. Features 6x SATA3, 1x M.2 slot, and RAID 0/1/5/10 for versatile storage. Quad Gigabit LAN (Intel i210-AT) optimizes network throughput, while IPMI 2.0 with dedicated LAN enables remote management. PCIe 3.0 expansion slots and Micro-ATX form factor suit cloud, storage, or enterprise environments. Combines 24/7 durability, server-grade components, and flexible configuration for mission-critical applications. **USP**: Robust ECC support, quad LAN, and remote management in a space-efficient design.

$Quote1 Piece(MOQ)

SKU MBD-X11SSi-LN4F Categories , , Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

Product SKUs

  • MBD-X11SSi-LN4F

Physical Stats

  • Form Factor
    ATX
  • Dimension
    12″ x 9.6″ (30.48cm x 24.38cm)

Processor

  • CPU
    Intel Celeron, Intel Pentium, Intel 7th/6th Generation Core i3 series, Intel Xeon processor E3-1200 v6/v5
    Single Socket Socket H4 (LGA-1151) supported, CPU TDP supports Up to 80W TDP

System Memory

  • Memory Capacity
    4 DIMM slots
    64GB Unbuffered ECC UDIMM, DDR4-2400MT/s
  • Memory Type
    2400/2133/1866/1600 MT/s SDRAM 72-bit, 288-pin gold-plated DIMMs
  • DIMM Sizes
    4GB, 8GB, 16GB
  • Memory Voltage
    1.2V
  • Error Detection
    Corrects single-bit errors

On-Board Devices

  • Chipset
    Intel C236
  • SATA
    Intel C236 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  • IPMI
    ASPEED AST2400 BMC
  • Graphics
    1 ASPEED AST2400 BMC port(s)
  • Network Controllers
    Quad LAN with Intel Ethernet Controller I210-AT

Input / Output

  • USB
    6 USB 2.0 port(s) (4 via header; 2 rear)
    2 USB 3.0 port(s) (2 rear)
    3 USB 3 port(s) (2 via header; 1 type A)
  • Video Output
    1 VGA port(s)
  • Serial Port
    2 COM Port(s) (1 header; 1 rear)
  • TPM
    1 TPM Header

Expansion Slots

  • PCIe
    1 PCIe 3.0 x8,
    1 PCIe 3.0 x8 (in x16 slot),
    1 PCIe 3.0 x4 (in x8 slot)
  • M.2
    M.2 Interface: PCIe 3.0 x4; SATA
    Form Factor: 22110, 2280, 2242, 2260
    Key: M-Key

System BIOS

  • BIOS Type
    128MB SPI Flash EEPROM with AMI BIOS
  • BIOS Features
    ACPI 1.0 / 2.0 / 3.0 / 4.0
    APM 1.2
    DMI 2.3
    PCI 2.3
    Plug and Play (PnP)
    Hardware BIOS Virus protection
    SMBIOS 2.7.1
    UEFI 2.3.1
    USB Keyboard support

Management

  • Power Configurations
    Power-on mode for AC power recovery, ACPI Power Management
BIOS Features

ACPI 1.0 / 2.0 / 3.0 / 4.0APM 1.2DMI 2.3PCI 2.3Plug and Play (PnP)Hardware BIOS Virus protectionSMBIOS 2.7.1UEFI 2.3.1USB Keyboard support
Graphics

1 ASPEED AST2400 BMC port(s)
TPM

1 TPM Header
Network Controllers

Quad LAN with Intel Ethernet Controller I210-AT
M.2

2242, 2260Key: M-Key, 2280, M.2 Interface: PCIe 3.0 x4; SATAForm Factor: 22110
Chipset

Intel C236
DIMM Sizes

16GB, 4GB, 8GB
BIOS Type

128MB SPI Flash EEPROM with AMI BIOS
Video Output

1 VGA port(s)
Dimension

12" x 9.6" (30.48cm x 24.38cm)
PCIe

1 PCIe 3.0 x4 (in x8 slot), 1 PCIe 3.0 x8, 1 PCIe 3.0 x8 (in x16 slot)
USB

6 USB 2.0 port(s) (4 via header; 2 rear)2 USB 3.0 port(s) (2 rear)3 USB 3 port(s) (2 via header; 1 type A)
Form Factor

ATX
Memory Type

2400/2133/1866/1600 MT/s SDRAM 72-bit, 288-pin gold-plated DIMMs
Application

Server
IPMI

ASPEED AST2400 BMC
Memory Voltage

1.2V
CPU

CPU TDP supports Up to 80W TDP, Intel 7th/6th Generation Core i3 series, Intel Celeron, Intel Pentium, Intel Xeon processor E3-1200 v6/v5Single Socket Socket H4 (LGA-1151) supported
Serial Port

2 COM Port(s) (1 header; 1 rear)
SATA

1, 10, 5, Intel C236 controller for 6 SATA3 (6 Gbps) ports; RAID 0
Memory Capacity

4 DIMM slots64GB Unbuffered ECC UDIMM, DDR4-2400MT/s
Error Detection

Corrects single-bit errors
