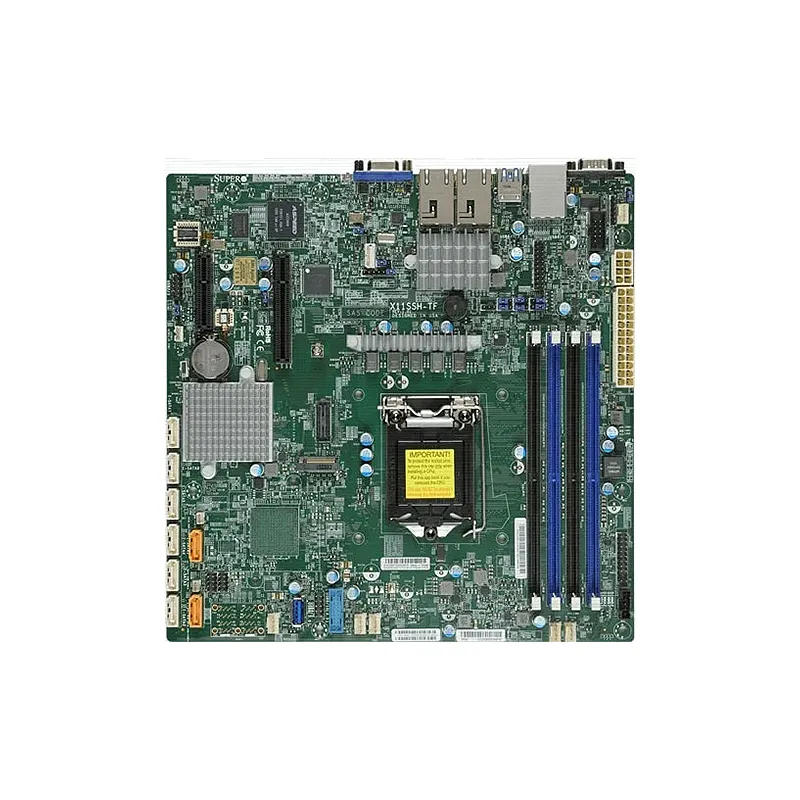

* NOTE: Image may not exactly match the product

Supermicro MBD-X11SSH-TF

**Supermicro MBD-X11SSH-TF: High-Performance Server Motherboard**
Supports Intel Xeon E3-1200 v5/v6 and 6th/7th Gen Core i3 processors for robust computing power. Features DDR4 ECC UDIMM (up to 64GB) for error-free data integrity and dual Gigabit Ethernet with Intel controllers for reliable, high-speed networking. Offers versatile storage via SATA3 (6 ports) and M.2 NVMe, plus PCI-E 3.0 expansion slots for GPUs or add-ons. Integrated IPMI 2.0 with KVM enables secure, remote server management. Built with server-grade components in a compact Micro-ATX form, ensuring durability and scalability for data centers, SMEs, and edge computing. Combines enterprise reliability, flexible expansion, and advanced remote management in a space-efficient design.

$Quote1 Piece(MOQ)

SKU MBD-X11SSH-TF Categories , , Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

Product SKUs

  • MBD-X11SSH-TF

Physical Stats

  • Form Factor
    Micro-ATX
  • Dimension
    9.6″ x 9.6″ (24.38cm x 24.38cm)

Processor

  • CPU
    Intel Celeron, Intel Pentium, Intel 7th/6th Generation Core i3 series, Intel Xeon processor E3-1200 v6/v5
    Single Socket Socket H4 (LGA-1151) supported, CPU TDP supports Up to 80W TDP

System Memory

  • Memory Capacity
    4 DIMM slots
    64GB Unbuffered ECC UDIMM, DDR4-2400MT/s
  • Memory Type
    2400/2133/1866/1600 MT/s SDRAM 72-bit, 288-pin gold-plated DIMMs
  • DIMM Sizes
    4GB, 8GB, 16GB
  • Memory Voltage
    1.2V
  • Error Detection
    Corrects single-bit errors

On-Board Devices

  • Chipset
    Intel C236
  • SATA
    Intel C236 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  • IPMI
    ASPEED AST2400 BMC
  • Graphics
    1 ASPEED AST2400 BMC port(s)
  • Network Controllers
    Dual LAN with Intel X550 10GBase-T Ethernet Controller

Input / Output

  • USB
    6 USB 2.0 port(s) (4 via header; 2 rear)
    2 USB 3.0 port(s) (2 rear)
    3 USB 3 port(s) (2 via header; 1 type A)
  • Video Output
    1 VGA port(s)
  • Serial Port
    2 COM Port(s) (1 header; 1 rear)
  • TPM
    1 TPM Header

Expansion Slots

  • PCIe
    1 PCIe 3.0 x8,
    1 PCIe 3.0 x2 (in x4 slot)
  • M.2
    M.2 Interface: SATA; PCIe 3.0 x4
    Form Factor: 2260
    Key: M-Key

System BIOS

  • BIOS Type
    128MB SPI Flash EEPROM with AMI BIOS
  • BIOS Features
    APM 1.2
    DMI 2.3
    PCI 2.3
    Plug and Play (PnP)
    ACPI 1.0 / 2.0 / 3.0 / 4.0
    USB Keyboard support
    Hardware BIOS Virus protection
    UEFI 2.3.1
    SMBIOS 2.7.1

Management

  • Power Configurations
    Power-on mode for AC power recovery, ACPI Power Management
BIOS Features

APM 1.2DMI 2.3PCI 2.3Plug and Play (PnP)ACPI 1.0 / 2.0 / 3.0 / 4.0USB Keyboard supportHardware BIOS Virus protectionUEFI 2.3.1SMBIOS 2.7.1
Graphics

1 ASPEED AST2400 BMC port(s)
TPM

1 TPM Header
Network Controllers

Dual LAN with Intel X550 10GBase-T Ethernet Controller
M.2

M.2 Interface: SATA; PCIe 3.0 x4Form Factor: 2260Key: M-Key
Chipset

Intel C236
DIMM Sizes

16GB, 4GB, 8GB
BIOS Type

128MB SPI Flash EEPROM with AMI BIOS
Video Output

1 VGA port(s)
Dimension

9.6" x 9.6" (24.38cm x 24.38cm)
PCIe

1 PCIe 3.0 x2 (in x4 slot), 1 PCIe 3.0 x8
USB

6 USB 2.0 port(s) (4 via header; 2 rear)2 USB 3.0 port(s) (2 rear)3 USB 3 port(s) (2 via header; 1 type A)
Form Factor

Micro-ATX
Memory Type

2400/2133/1866/1600 MT/s SDRAM 72-bit, 288-pin gold-plated DIMMs
Application

Server
IPMI

ASPEED AST2400 BMC
Memory Voltage

1.2V
CPU

CPU TDP supports Up to 80W TDP, Intel 7th/6th Generation Core i3 series, Intel Celeron, Intel Pentium, Intel Xeon processor E3-1200 v6/v5Single Socket Socket H4 (LGA-1151) supported
Serial Port

2 COM Port(s) (1 header; 1 rear)
SATA

1, 10, 5, Intel C236 controller for 8 SATA3 (6 Gbps) ports; RAID 0
Memory Capacity

4 DIMM slots64GB Unbuffered ECC UDIMM, DDR4-2400MT/s
Error Detection

Corrects single-bit errors
