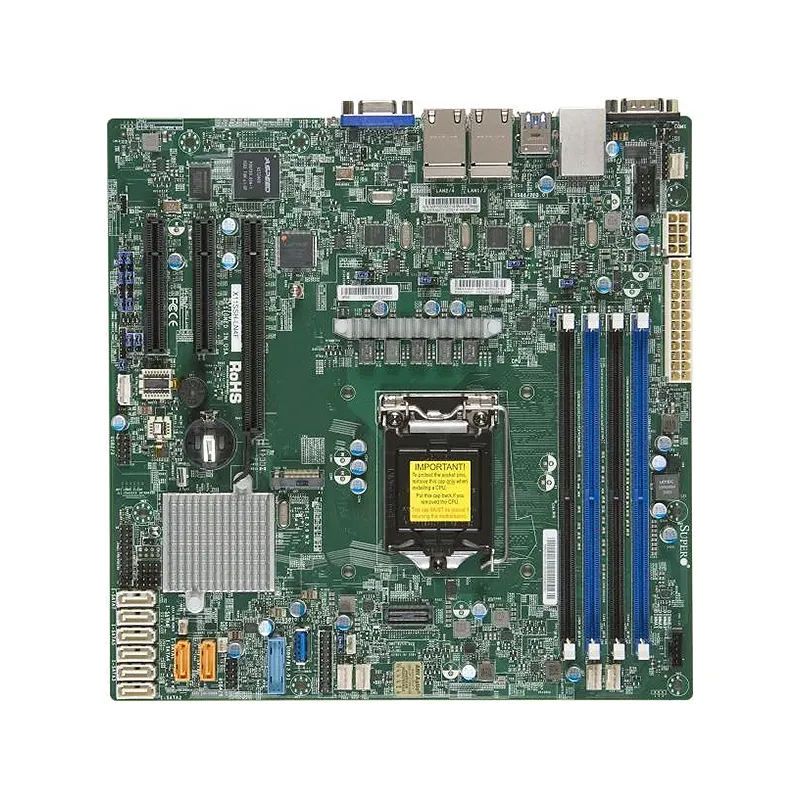

Supermicro MBD-X11SSH-LN4F-B

**Supermicro MBD-X11SSH-LN4F-B**: A compact, high-performance server motherboard built for reliability and scalability. Supports Intel Xeon E3-1200 v5/v6 and Core i3 processors (LGA 1151) with up to 64GB DDR4 ECC memory for error-free operation. Features four Intel Gigabit LAN ports for robust networking, six SATA3 ports with RAID 0/1/5/10 support, and PCIe 3.0 expansion slots. Integrated IPMI 2.0 enables remote management via KVM-over-LAN, ideal for data centers or SMBs. Micro-ATX form factor optimizes space efficiency without compromising enterprise-grade durability, making it perfect for cloud, storage, or network servers demanding 24/7 uptime and secure remote access.

$Quote1 Piece(MOQ)

100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:
BIOS Features

Plug and Play (PnP)APM 1.2PCI 2.3DMI 2.3ACPI 1.0 / 2.0 / 3.0 / 4.0USB Keyboard supportHardware BIOS Virus protectionSMBIOS 2.7.1UEFI 2.3.1

Graphics

1 ASPEED AST2400 BMC port(s)

TPM

1 TPM Header

Network Controllers

Quad LAN with Intel Ethernet Controller I210-AT

M.2

M.2 Interface: PCIe 3.0 x2Form Factor: 2280Key: M-Key

Chipset

Intel C236

DIMM Sizes

16GB, 4GB, 8GB

BIOS Type

128MB SPI Flash EEPROM with AMI BIOS

Video Output

1 VGA port(s)

Dimension

9.6" x 9.6" (24.38cm x 24.38cm)

PCIe

1 PCIe 3.0 x4 (in x8 slot), 1 PCIe 3.0 x8, 1 PCIe 3.0 x8 (in x16 slot)

USB

6 USB 2.0 port(s) (4 via header; 2 rear)2 USB 3.0 port(s) (2 rear)3 USB 3 port(s) (2 via header; 1 type A)

Form Factor

Micro-ATX

Memory Type

2400/2133/1866/1600 MT/s SDRAM 72-bit, 288-pin gold-plated DIMMs

Application

Server

IPMI

ASPEED AST2400 BMC

Memory Voltage

1.2V

CPU

CPU TDP supports Up to 80W TDP, Intel 7th/6th Generation Core i3 series, Intel Celeron, Intel Pentium, Intel Xeon processor E3-1200 v6/v5Single Socket Socket H4 (LGA-1151) supported

Serial Port

2 COM Port(s) (1 header; 1 rear)

SATA

1, 10, 5, Intel C236 controller for 8 SATA3 (6 Gbps) ports; RAID 0

Memory Capacity

4 DIMM slots64GB Unbuffered ECC UDIMM, DDR4-2400MT/s

Error Detection

Corrects single-bit errors
