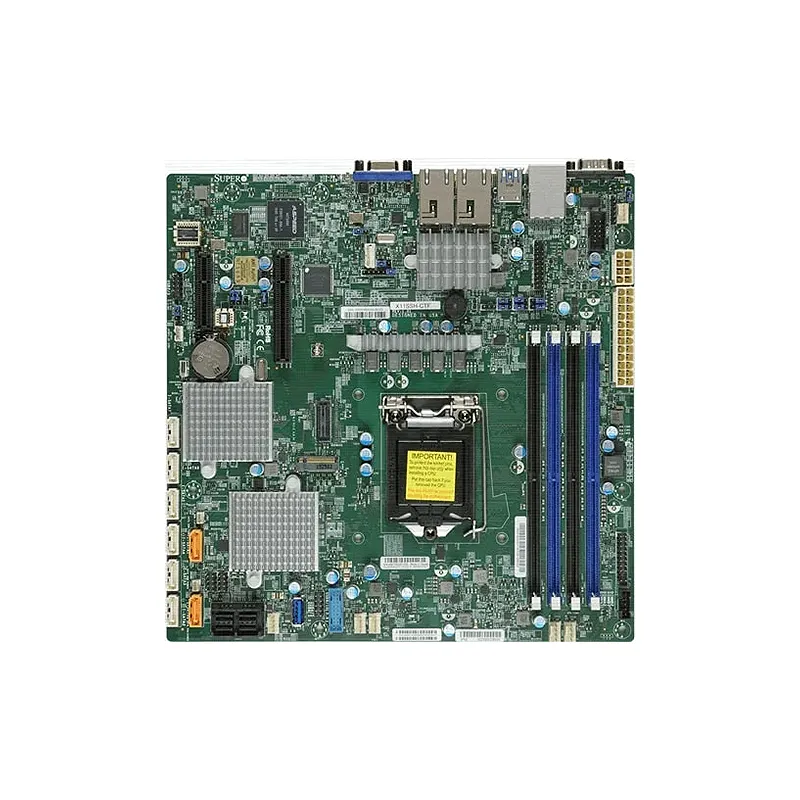

Supermicro MBD-X11SSH-CTF

**Supermicro MBD-X11SSH-CTF**: A compact, high-performance server motherboard designed for enterprise and storage applications. Features Intel Xeon E3-1200 v5/v6 processors, supporting up to 64GB DDR4 ECC memory for reliability and multitasking. Integrated LSI SAS3 controller enables 8-port 12Gb/s storage connectivity, ideal for data-intensive workloads. Six SATA3 ports and PCIe 3.0 slots (x16, x8) offer expandability for GPUs, NICs, or additional storage. Dual Intel Gigabit LAN with advanced traffic management ensures fast, stable networking. Includes IPMI 2.0 with KVM-over-IP for seamless remote management, reducing downtime. Micro-ATX form factor optimizes space efficiency in dense server environments. Built with Supermicro’s proven durability and energy-efficient design, it excels in cloud, virtualization, and NAS solutions. **USP**: Combines enterprise-grade storage scalability (SAS3/SATA3), robust remote management, and compact versatility, making it a cost-effective powerhouse for critical workloads.

$Quote1 Piece(MOQ)

SKU MBD-X11SSH-CTF Categories , , Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

Product SKUs

  • MBD-X11SSH-CTF

Physical Stats

  • Form Factor
    Micro-ATX
  • Dimension
    9.6″ x 9.6″ (24.38cm x 24.38cm)

Processor

  • CPU
    Intel Celeron, Intel Pentium, Intel 7th/6th Generation Core i3 series, Intel Xeon processor E3-1200 v6/v5
    Single Socket LGA-1151 (Socket H4) supported, CPU TDP supports Up to 80W TDP

System Memory

  • Memory Capacity
    4 DIMM slots
    64GB Unbuffered ECC UDIMM, DDR4-2400MT/s
  • Memory Type
    2400/2133/1866/1600 MT/s SDRAM 72-bit, 288-pin gold-plated DIMMs
  • DIMM Sizes
    4GB, 8GB, 16GB
  • Memory Voltage
    1.2V
  • Error Detection
    Corrects single-bit errors

On-Board Devices

  • Chipset
    Intel C236
  • SAS
    LSI3008 controller for 8 SAS3 (12 Gbps) ports; RAID 0,1,10
  • SATA
    Intel C236 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  • IPMI
    ASPEED AST2400 BMC
  • Graphics
    1 ASPEED AST2400 BMC port(s)
  • Network Controllers
    Dual LAN with Intel X550 10GBase-T Ethernet Controller

Input / Output

  • USB
    6 USB 2.0 port(s) (4 via header; 2 rear)
    2 USB 3.0 port(s) (2 rear)
    3 USB 3 port(s) (2 via header; 1 type A)
  • Video Output
    1 VGA port(s)
  • Serial Port
    2 COM Port(s) (1 header; 1 rear)
  • TPM
    1 TPM Header

Expansion Slots

  • PCIe
    1 PCIe 3.0 x8,
    1 PCIe 3.0 x2 (in x4 slot)
  • M.2
    M.2 Interface: SATA; PCIe 3.0 x4
    Form Factor: 2260
    Key: M-Key

System BIOS

  • BIOS Type
    128MB SPI Flash EEPROM with AMI BIOS
  • BIOS Features
    Plug and Play (PnP)
    APM 1.2
    DMI 2.3
    PCI 2.3
    ACPI 1.0 / 2.0 / 3.0 / 4.0
    USB Keyboard support
    Hardware BIOS Virus protection
    SMBIOS 2.7.1
    UEFI 2.3.1

Management

  • Power Configurations
    Power-on mode for AC power recovery, ACPI Power Management
BIOS Features

Plug and Play (PnP)APM 1.2DMI 2.3PCI 2.3ACPI 1.0 / 2.0 / 3.0 / 4.0USB Keyboard supportHardware BIOS Virus protectionSMBIOS 2.7.1UEFI 2.3.1
Graphics

1 ASPEED AST2400 BMC port(s)
TPM

1 TPM Header
Network Controllers

Dual LAN with Intel X550 10GBase-T Ethernet Controller
M.2

M.2 Interface: SATA; PCIe 3.0 x4Form Factor: 2260Key: M-Key
Chipset

Intel C236
DIMM Sizes

16GB, 4GB, 8GB
BIOS Type

128MB SPI Flash EEPROM with AMI BIOS
Video Output

1 VGA port(s)
Dimension

9.6" x 9.6" (24.38cm x 24.38cm)
PCIe

1 PCIe 3.0 x2 (in x4 slot), 1 PCIe 3.0 x8
USB

6 USB 2.0 port(s) (4 via header; 2 rear)2 USB 3.0 port(s) (2 rear)3 USB 3 port(s) (2 via header; 1 type A)
Form Factor

Micro-ATX
Memory Type

2400/2133/1866/1600 MT/s SDRAM 72-bit, 288-pin gold-plated DIMMs
Application

Server
IPMI

ASPEED AST2400 BMC
Memory Voltage

1.2V
CPU

CPU TDP supports Up to 80W TDP, Intel 7th/6th Generation Core i3 series, Intel Celeron, Intel Pentium, Intel Xeon processor E3-1200 v6/v5Single Socket LGA-1151 (Socket H4) supported
SAS

1, 10, LSI3008 controller for 8 SAS3 (12 Gbps) ports; RAID 0
Serial Port

2 COM Port(s) (1 header; 1 rear)
SATA

1, 10, 5, Intel C236 controller for 8 SATA3 (6 Gbps) ports; RAID 0
Memory Capacity

4 DIMM slots64GB Unbuffered ECC UDIMM, DDR4-2400MT/s
Error Detection

Corrects single-bit errors
