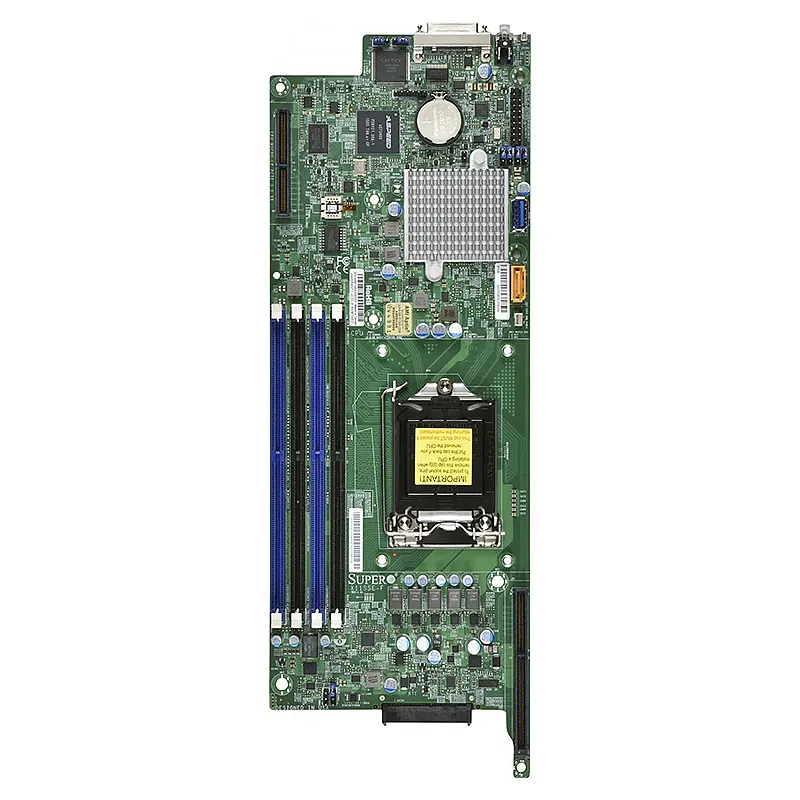

* NOTE: Image may not exactly match the product

Supermicro MBD-X11SSE-F

**Supermicro MBD-X11SSE-F**: A compact, high-performance server motherboard designed for enterprise and data center use. Features Intel Xeon E3-1200 v5/v6 processors and Intel C236 chipset for robust computing power. Supports up to 64GB DDR4 ECC memory (4 DIMMs) for error-free data integrity. Six SATA3 ports and PCIe 3.0 slots (x16, x8, x4) enable flexible storage and expansion. Dual Gigabit Ethernet with Intel controllers ensures fast, reliable networking. Integrated IPMI 2.0 with KVM support for seamless remote management. Micro-ATX form factor optimizes space efficiency. TPM header enhances security. Combines scalability, enterprise-grade reliability, and 24/7 support for mission-critical applications. Ideal for scalable, energy-efficient infrastructure with minimal downtime.

$Quote1 Piece(MOQ)

SKU MBD-X11SSE-F Categories , , Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

Product SKUs

  • MBD-X11SSE-F

Physical Stats

  • Form Factor
    Proprietary
  • Dimension
    4.6″ x 11.7″ (11.68cm x 29.72cm)

Processor

  • CPU
    Intel 6th Generation Core i3 series, Intel Celeron, Intel Pentium, Intel 7th Generation Core i3 series, Intel Xeon processor E3-1200 v6/v5
    Single Socket LGA-1151 (Socket H4) supported, CPU TDP supports Up to 80W TDP

System Memory

  • Memory Capacity
    4 DIMM slots
    64GB Unbuffered ECC UDIMM, DDR4-2400MT/s
  • Memory Type
    2400/2133/1866 MT/s SDRAM 72/64-bit, 288-pin gold-plated DIMMs2133/1866/1600MHz SDRAM 72-bit, 288-pin gold-plated DIMMs
  • DIMM Sizes
    4GB, 8GB, 16GB
  • Memory Voltage
    1.2V
  • Error Detection
    Corrects single-bit errors
    Detects double-bit errors (using ECC memory)

On-Board Devices

  • Chipset
    Intel C236
  • SATA
    Intel C236 controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  • Graphics
    1 ASPEED AST2400 BMC port(s)
  • Network Controllers

Input / Output

  • USB
    2 USB 2.0 port(s) (2 rear)
    1 USB 3.2 Gen1 port(s) (1 type A)
  • Video Output
    1 VGA port(s)
  • Serial Port
    1 fast UART 16550 Serial
  • TPM
    1 TPM Header

Expansion Slots

  • PCIe
    1 PCIe 3.0 x8 (Micro Low Profile)

System BIOS

  • BIOS Type
    128MB UEFI
  • BIOS Features
    ACPI 1.0 / 2.0 / 3.0 / 4.0
    APM 1.2
    DMI 2.3
    Hardware BIOS Virus protection
    PCI 2.3
    Plug and Play (PnP)
    RTC (Real Time Clock) Wakeup
    SMBIOS 2.7.1
    UEFI 2.3.1
    USB Keyboard support

Management

  • Power Configurations
    Power-on mode for AC power recovery, ACPI Power Management
BIOS Features

ACPI 1.0 / 2.0 / 3.0 / 4.0APM 1.2DMI 2.3Hardware BIOS Virus protectionPCI 2.3Plug and Play (PnP)RTC (Real Time Clock) WakeupSMBIOS 2.7.1UEFI 2.3.1USB Keyboard support
Graphics

1 ASPEED AST2400 BMC port(s)
TPM

1 TPM Header
Chipset

Intel C236
DIMM Sizes

16GB, 4GB, 8GB
BIOS Type

128MB UEFI
Video Output

1 VGA port(s)
Dimension

4.6" x 11.7" (11.68cm x 29.72cm)
PCIe

1 PCIe 3.0 x8 (Micro Low Profile)
USB

2 USB 2.0 port(s) (2 rear)1 USB 3.2 Gen1 port(s) (1 type A)
Form Factor

Proprietary
Memory Type

2400/2133/1866 MT/s SDRAM 72/64-bit, 288-pin gold-plated DIMMs, 288-pin gold-plated DIMMs2133/1866/1600MHz SDRAM 72-bit
Application

Server
Memory Voltage

1.2V
CPU

CPU TDP supports Up to 80W TDP, Intel 6th Generation Core i3 series, Intel 7th Generation Core i3 series, Intel Celeron, Intel Pentium, Intel Xeon processor E3-1200 v6/v5Single Socket LGA-1151 (Socket H4) supported
Serial Port

1 fast UART 16550 Serial
SATA

1, 10, 5, Intel C236 controller for 4 SATA3 (6 Gbps) ports; RAID 0
Memory Capacity

4 DIMM slots64GB Unbuffered ECC UDIMM, DDR4-2400MT/s
Error Detection

Corrects single-bit errorsDetects double-bit errors (using ECC memory)
