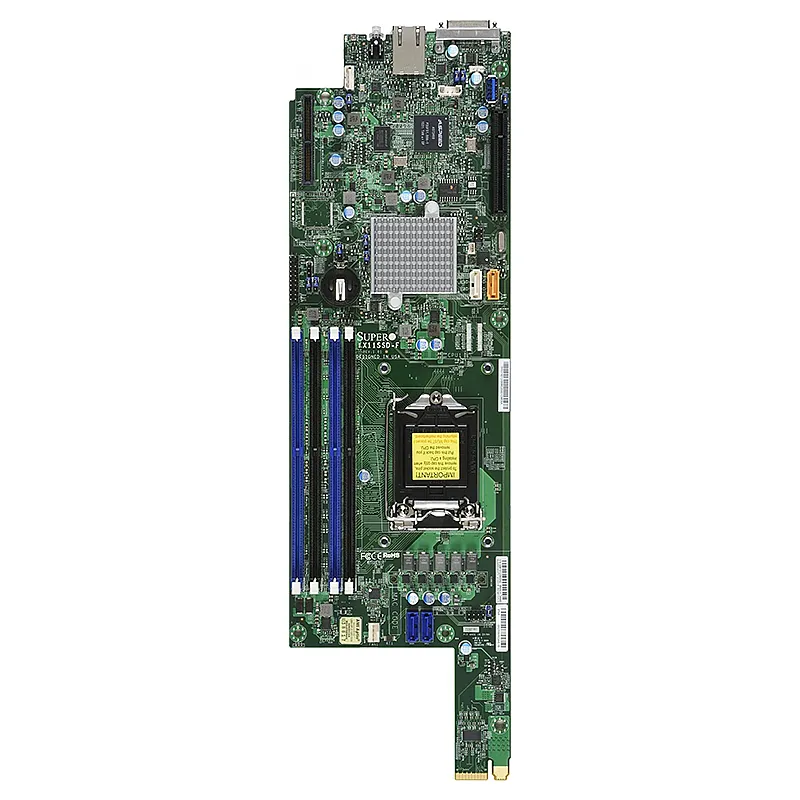

* NOTE: Image may not exactly match the product

Supermicro MBD-X11SSD-F

**Supermicro MBD-X11SSD-F**: A compact micro-ATX server motherboard designed for reliability and performance in enterprise environments. Supports Intel Xeon E3-1200 v5/v6 and 6th/7th Gen Core i3 processors, with four DDR4 DIMM slots (up to 64GB, 2133MHz) for robust multitasking. Features six SATA3 ports, an M.2 slot, PCI-E 3.0, and legacy PCI expansion for versatile storage and connectivity. Dual Gigabit Ethernet with Intel controllers ensures high-speed networking, while IPMI 2.0 remote management enables seamless monitoring and control. Built with server-grade components for 24/7 durability, it excels in SMBs, data centers, and embedded systems. **USP**: Enterprise-grade reliability, scalable storage/network options, and advanced remote management in a space-efficient design.

$Quote1 Piece(MOQ)

SKU MBD-X11SSD-F Categories , , Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

Product SKUs

  • MBD-X11SSD-F

Physical Stats

  • Form Factor
    Proprietary
  • Dimension
    4.75″ x 16″ (12.07cm x 40.64cm)

Processor

  • CPU
    Intel Celeron, Intel Pentium, Intel Xeon processor E3-1200 v6/v5, Intel 6th/7th Generation Core i3 series
    Single Socket LGA-1151 (Socket H4) supported, CPU TDP supports Up to 145W TDP

System Memory

  • Memory Capacity
    4 DIMM slots
    Up to 64GB Unbuffered ECC UDIMM, DDR4-2400MT/s
  • Memory Type
    2400/2133/1866 MT/s SDRAM 72/64-bit, 288-pin gold-plated DIMMs
  • DIMM Sizes
    4GB, 8GB, 16GB
  • Memory Voltage
    1.2V
  • Error Detection
    Corrects single-bit errors
    Detects double-bit errors (using ECC memory)

On-Board Devices

  • Chipset
    Intel C236
  • SATA
    Intel C236 controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  • Graphics
    1 ASPEED AST2400 BMC port(s)
  • Network Controllers

Input / Output

  • USB
    3 USB 3.2 Gen1 port(s) (2 via header; 1 type A)
  • Video Output
    1 VGA port(s)
  • Serial Port
    1 fast UART 16550 Serial
  • TPM
    1 TPM header

Expansion Slots

  • PCIe
    1 PCIe 3.0 x8 (Micro Low Profile) Or 1 PCIe 3.0 x4 (in x8 slot)

System BIOS

  • BIOS Type
    128MB UEFI
  • BIOS Features
    Plug and Play (PnP)
    APM 1.2
    DMI 2.3
    PCI 2.3
    ACPI 1.0 / 2.0 / 3.0 / 4.0
    USB Keyboard support
    Hardware BIOS Virus protection
    SMBIOS 2.7.1
    UEFI 2.3.1
    RTC (Real Time Clock) Wakeup

Management

  • Power Configurations
    Power-on mode for AC power recovery, ACPI Power Management
BIOS Features

Plug and Play (PnP)APM 1.2DMI 2.3PCI 2.3ACPI 1.0 / 2.0 / 3.0 / 4.0USB Keyboard supportHardware BIOS Virus protectionSMBIOS 2.7.1UEFI 2.3.1RTC (Real Time Clock) Wakeup
Graphics

1 ASPEED AST2400 BMC port(s)
TPM

1 TPM Header
Chipset

Intel C236
DIMM Sizes

16GB, 4GB, 8GB
BIOS Type

128MB UEFI
Video Output

1 VGA port(s)
Dimension

4.75" x 16" (12.07cm x 40.64cm)
PCIe

1 PCIe 3.0 x8 (Micro Low Profile) Or 1 PCIe 3.0 x4 (in x8 slot)
USB

3 USB 3.2 Gen1 port(s) (2 via header; 1 type A)
Form Factor

Proprietary
Memory Type

2400/2133/1866 MT/s SDRAM 72/64-bit, 288-pin gold-plated DIMMs
Application

Server
Memory Voltage

1.2V
CPU

CPU TDP supports Up to 145W TDP, Intel 6th/7th Generation Core i3 seriesSingle Socket LGA-1151 (Socket H4) supported, Intel Celeron, Intel Pentium, Intel Xeon processor E3-1200 v6/v5
Serial Port

1 fast UART 16550 Serial
SATA

1, 10, 5, Intel C236 controller for 4 SATA3 (6 Gbps) ports; RAID 0
Memory Capacity

4 DIMM slotsUp to 64GB Unbuffered ECC UDIMM, DDR4-2400MT/s
Error Detection

Corrects single-bit errorsDetects double-bit errors (using ECC memory)
