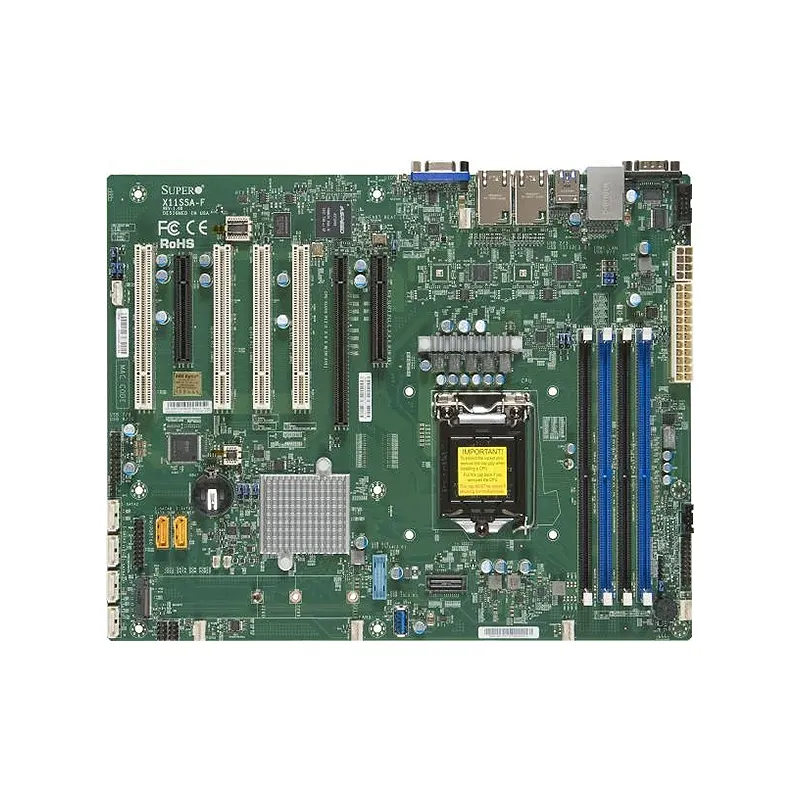

* NOTE: Image may not exactly match the product

Supermicro MBD-X11SSA-F

**Supermicro MBD-X11SSA-F**: A compact Micro-ATX server/workstation motherboard built for reliability and performance. Features Intel C236 chipset with LGA 1151 socket, supporting Xeon E3-1200 v5/v6 and 6th/7th Gen Core i3 processors. Offers up to 64GB ECC DDR4 memory for data integrity, PCI-E 3.0 expansion slots (x16, x8, x4), SATA3 (6Gbps), and M.2 NVMe for high-speed storage. Dual Gigabit Ethernet ports ensure network redundancy, while IPMI 2.0 with dedicated LAN enables secure remote management. Server-grade components, TPM support, and a compact design make it ideal for space-efficient, scalable enterprise environments. Combines enterprise reliability, security, and management tools in a versatile, energy-efficient platform.

$Quote1 Piece(MOQ)

SKU MBD-X11SSA-F Categories , , Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

Product SKUs

  • MBD-X11SSA-F

Physical Stats

  • Form Factor
    ATX
  • Dimension
    12″ x 9.6″ (30.48cm x 24.38cm)

Processor

  • CPU
    Intel Celeron, Intel Pentium, Intel 7th/6th Generation Core i3 series, Intel Xeon processor E3-1200 v6/v5
    Single Socket LGA-1151 (Socket H4) supported, CPU TDP supports Up to 80W TDP

System Memory

  • Memory Capacity
    4 DIMM slots
    64GB Unbuffered ECC UDIMM, DDR4-2400MT/s
  • Memory Type
    2400/2133/1866/1600 MT/s SDRAM 72-bit, 288-pin gold-plated DIMMs
  • DIMM Sizes
    4GB, 8GB, 16GB
  • Memory Voltage
    1.2V
  • Error Detection
    Corrects single-bit errors

On-Board Devices

  • Chipset
    Intel C236
  • SATA
    Intel C236 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  • IPMI
    ASPEED AST2400 BMC
  • Graphics
    1 ASPEED AST2400 BMC port(s)
  • Network Controllers
    Dual LAN with Intel Ethernet Controller I210-AT

Input / Output

  • USB
    6 USB 2.0 port(s) (4 via header; 2 rear)
    2 USB 3.0 port(s) (2 rear)
    3 USB 3 port(s) (2 via header; 1 type A)
  • Video Output
    1 VGA port(s)
  • Serial Port
    2 COM Port(s) (1 header; 1 rear)
  • TPM
    1 TPM Header

Expansion Slots

  • PCIe
    1 PCIe 3.0 x8,
    1 PCIe 3.0 x8 (in x16 slot),
    1 PCIe 3.0 x4 (in x8 slot)
    4 – 5V PCI 32bit
  • M.2
    M.2 Interface: PCIe 3.0 x4; SATA
    Form Factor: 22110, 2280, 2242, 2260
    Key: M-Key

System BIOS

  • BIOS Type
    128MB SPI Flash EEPROM with AMI BIOS
  • BIOS Features
    Plug and Play (PnP)
    APM 1.2
    DMI 2.3
    PCI 2.3
    ACPI 1.0 / 2.0 / 3.0 / 4.0
    USB Keyboard support
    Hardware BIOS Virus protection
    SMBIOS 2.7.1
    UEFI 2.3.1

Management

  • Power Configurations
    Power-on mode for AC power recovery, ACPI Power Management
BIOS Features

Plug and Play (PnP)APM 1.2DMI 2.3PCI 2.3ACPI 1.0 / 2.0 / 3.0 / 4.0USB Keyboard supportHardware BIOS Virus protectionSMBIOS 2.7.1UEFI 2.3.1
Graphics

1 ASPEED AST2400 BMC port(s)
TPM

1 TPM Header
Network Controllers

Dual LAN with Intel Ethernet Controller I210-AT
M.2

2242, 2260Key: M-Key, 2280, M.2 Interface: PCIe 3.0 x4; SATAForm Factor: 22110
Chipset

Intel C236
DIMM Sizes

16GB, 4GB, 8GB
BIOS Type

128MB SPI Flash EEPROM with AMI BIOS
Video Output

1 VGA port(s)
Dimension

12" x 9.6" (30.48cm x 24.38cm)
PCIe

1 PCIe 3.0 x4 (in x8 slot)4 – 5V PCI 32bit, 1 PCIe 3.0 x8, 1 PCIe 3.0 x8 (in x16 slot)
USB

6 USB 2.0 port(s) (4 via header; 2 rear)2 USB 3.0 port(s) (2 rear)3 USB 3 port(s) (2 via header; 1 type A)
Form Factor

ATX
Memory Type

2400/2133/1866/1600 MT/s SDRAM 72-bit, 288-pin gold-plated DIMMs
Application

Server
IPMI

ASPEED AST2400 BMC
Memory Voltage

1.2V
CPU

CPU TDP supports Up to 80W TDP, Intel 7th/6th Generation Core i3 series, Intel Celeron, Intel Pentium, Intel Xeon processor E3-1200 v6/v5Single Socket LGA-1151 (Socket H4) supported
Serial Port

2 COM Port(s) (1 header; 1 rear)
SATA

1, 10, 5, Intel C236 controller for 6 SATA3 (6 Gbps) ports; RAID 0
Memory Capacity

4 DIMM slots64GB Unbuffered ECC UDIMM, DDR4-2400MT/s
Error Detection

Corrects single-bit errors
