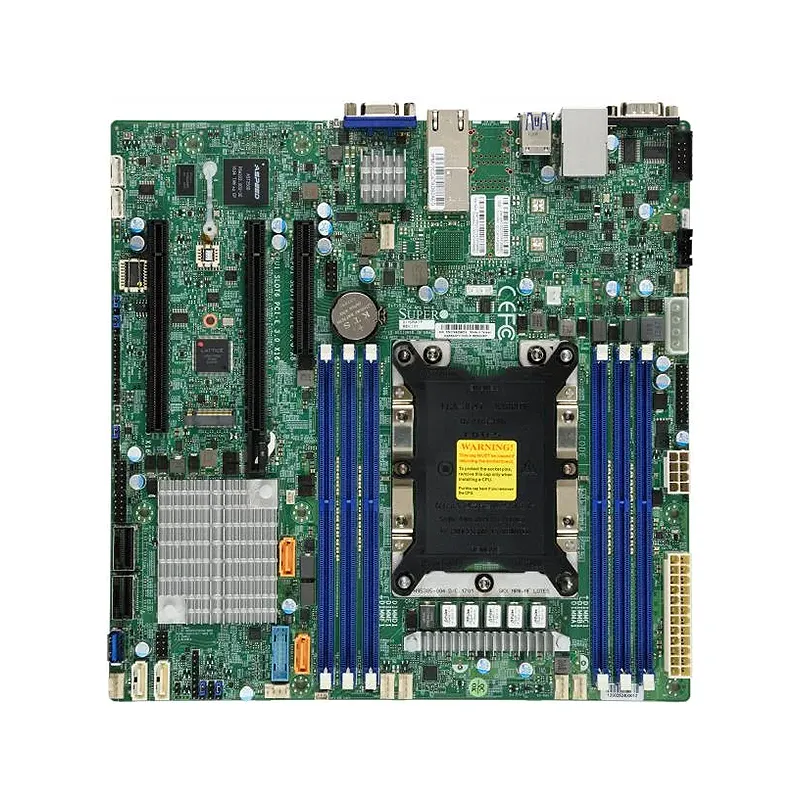

Supermicro MBD-X11SPM-TF

The Supermicro MBD-X11SPM-TF is a high-performance server motherboard built for enterprise and data center applications. It supports 2nd Gen Intel Xeon Scalable processors, delivering robust compute power for demanding workloads like AI, virtualization, and cloud services. Key features include 8-channel DDR4 support (up to 1TB), dual 10GBase-T LAN ports, multiple PCIe 3.0 slots for GPUs/NVMe storage, and SATA connectivity. Integrated IPMI 2.0 enables remote management, while optimized thermal design ensures reliability. Its single-socket architecture balances scalability, energy efficiency, and enterprise-grade durability, making it ideal for scalable, high-density deployments.

$Quote1 Piece(MOQ)

SKU MBD-X11SPM-TF Categories , , Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

Product SKUs

  • MBD-X11SPM-TF

Physical Stats

  • Form Factor
    microATX
  • Dimension
    9.6″ x 9.6″ (24.38cm x 24.38cm)

Processor

  • CPU
    2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable Processors
    Single Socket LGA-3647 (Socket P) supported, CPU TDP supports Up to 165W TDP
  • Core
    Up to 28 cores

System Memory

  • Memory Capacity
    6 DIMM slots
    Up to 1.5TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 1.5TB 3DS ECC RDIMM, DDR4-2933MT/s
  • Memory Type
    2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
  • DIMM Sizes
    LRDIMM: 32GB, 64GB, 128GB
    RDIMM: 8GB, 16GB, 32GB, 64GB
  • Memory Voltage
    1.2V
  • Error Detection
    Corrects single-bit errors

On-Board Devices

  • Chipset
    Intel C622
  • SATA
    Intel C622 controller for 12 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  • IPMI
    ASPEED AST2500
  • Graphics
    1 ASPEED AST2500 BMC port(s)
  • Network Controllers
    Dual LAN with 10GBase-T with Intel X722 + X557

Input / Output

  • SATA
    12 SATA3 (6Gbps) port(s)
  • LAN
    2 RJ45 10GBase-T ports
  • USB
    6 USB 2.0 port(s) (4 via header; 2 rear)
    2 USB 3.0 port(s) (2 rear)
    3 USB 3 port(s) (2 via header; 1 type A)
  • Video Output
    1 VGA port(s)
  • Serial Port
    2 COM Port(s) (1 header; 1 rear)
  • DOM
    2 SATA DOM (Disk on Module) power connector support
  • TPM
    1 TPM Header

Expansion Slots

  • PCIe
    2 PCIe 3.0 x16,
    1 PCIe 3.0 x8
  • M.2
    M.2 Interface: PCIe 3.0 x4
    Form Factor: 2280, 2242
    Key: M-Key

System BIOS

  • BIOS Type
    AMI UEFI
  • BIOS Features
    ACPI 6.0
    RTC (Real Time Clock) Wakeup
    SMBIOS 3.0 or later

Management

  • Power Configurations
    Power-on mode for AC power recovery, ACPI Power Management
BIOS Features

ACPI 6.0RTC (Real Time Clock) WakeupSMBIOS 3.0 or later
Graphics

1 ASPEED AST2500 BMC port(s)
TPM

1 TPM Header
Network Controllers

Dual LAN with 10GBase-T with Intel X722 + X557
M.2

2242Key: M-Key, M.2 Interface: PCIe 3.0 x4Form Factor: 2280
Chipset

Intel C622
DIMM Sizes

128GBRDIMM: 8GB, 16GB, 32GB, 64GB, LRDIMM: 32GB
BIOS Type

AMI UEFI
LAN

2 RJ45 10GBase-T ports
Video Output

1 VGA port(s)
DOM

DOM
Dimension

9.6" x 9.6" (24.38cm x 24.38cm)
PCIe

1 PCIe 3.0 x8, 2 PCIe 3.0 x16
USB

6 USB 2.0 port(s) (4 via header; 2 rear)2 USB 3.0 port(s) (2 rear)3 USB 3 port(s) (2 via header; 1 type A)
Form Factor

Micro-ATX
Memory Type

2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
Application

Server
IPMI

ASPEED AST2500
Memory Voltage

1.2V
CPU

2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable ProcessorsSingle Socket LGA-3647 (Socket P) supported, CPU TDP supports Up to 165W TDP
Serial Port

2 COM Port(s) (1 header; 1 rear)
SATA

12 SATA3 (6Gbps) port(s)
Memory Capacity

6 DIMM slotsUp to 1.5TB 3DS ECC LRDIMM, DDR4-2933MT/s, DDR4-2933MT/s; Up to 1.5TB 3DS ECC RDIMM
Error Detection

Corrects single-bit errors
Core

Up to 28 cores
