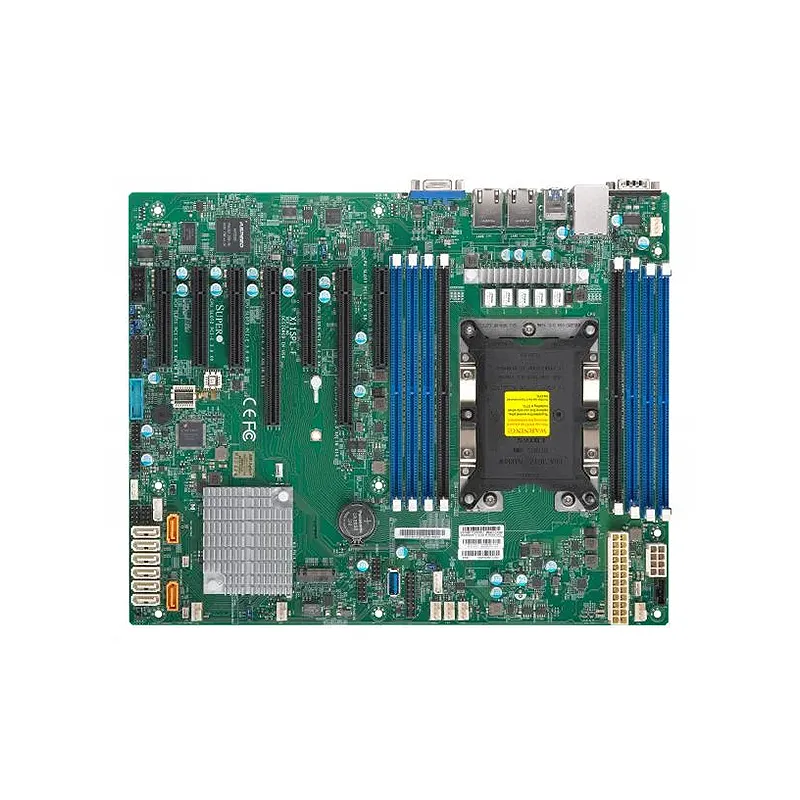

* NOTE: Image may not exactly match the product

Supermicro MBD-X11SPL-F

**Supermicro MBD-X11SPL-F: High-Performance Server Motherboard**
Designed for enterprise and data center workloads, the Supermicro MBD-X11SPL-F delivers robust performance with support for Intel Xeon Scalable processors (Cascade Lake) and up to 2TB DDR4-2933 ECC memory across 16 DIMMs. Key features include dual 10G LAN (Intel X550-AT2) for high-speed networking, seven PCIe 3.0 slots for expansion flexibility, eight SATA3 ports, and dual M.2 slots enabling NVMe storage acceleration. Integrated IPMI 2.0 with dedicated LAN ensures secure, remote server management.

**Benefits**: Optimized for demanding applications like virtualization, AI, and cloud computing, it offers scalability, rapid data throughput, and 24/7 reliability. Energy-efficient design reduces operational costs.

**USPs**: Combines enterprise-grade 10G connectivity, extensive PCIe expansion, and NVMe support in an ATX form factor. Backed by Supermicro’s proven durability and global support, it’s ideal for scalable infrastructure deployments requiring high performance, low latency, and centralized management.

$Quote1 Piece(MOQ)

SKU MBD-X11SPL-F Categories , , Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

Product SKUs

  • MBD-X11SPL-F

Physical Stats

  • Form Factor
    ATX
  • Dimension
    12″ x 9.6″ (30.48cm x 24.38cm)

Processor

  • CPU
    2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable Processors
    Single Socket LGA-3647 (Socket P) supported, CPU TDP supports Up to 165W TDP
  • Core
    Up to 28 cores

System Memory

  • Memory Capacity
    8 DIMM slots
    Up to 2TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 2TB 3DS ECC RDIMM, DDR4-2933MT/s
    Up to 1TB Intel Optane DC Persistent Memory in memory mode (Cascade Lake Only)
  • Memory Type
    2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
  • DIMM Sizes
    LRDIMM: 32GB, 64GB, 128GB
    RDIMM: 8GB, 16GB, 32GB, 64GB
  • Memory Voltage
    1.2V
  • Error Detection
    Corrects single-bit errors

On-Board Devices

  • Chipset
    Intel C621
  • SATA
    Intel C621 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  • IPMI
    ASPEED AST2500
  • Graphics
    1 ASPEED AST2500 BMC port(s)
  • Network Controllers
    Dual LAN with 1GbE with Intel I210

Input / Output

  • SATA
    8 SATA3 (6Gbps) port(s)
  • LAN
    2 RJ45 Gigabit Ethernet LAN ports
  • USB
    8 USB 2.0 port(s) (2 rear; 6 via header)
    2 USB 3.0 port(s) (2 rear)
    3 USB 3 port(s) (2 via header; 1 type A)
  • Video Output
    1 VGA port(s)
  • Serial Port
    2 COM Port(s) (1 header; 1 rear)
  • DOM
    2 SATA DOM (Disk on Module) power connector support
  • TPM
    1 TPM Header

Expansion Slots

  • PCIe
    2 PCIe 3.0 x8 (in x16 slot),
    4 PCIe 3.0 x8,
    1 PCIe 3.0 x4 (in x8 slot)
  • M.2
    M.2 Interface: PCIe 3.0 x4; SATA
    Form Factor: 2280, 22110
    Key: M-Key

System BIOS

  • BIOS Type
    AMI UEFI
  • BIOS Features
    ACPI 6.0
    RTC (Real Time Clock) Wakeup
    SMBIOS 3.0 or later

Management

  • Power Configurations
    Power-on mode for AC power recovery, ACPI Power Management
BIOS Features

ACPI 6.0RTC (Real Time Clock) WakeupSMBIOS 3.0 or later
Graphics

1 ASPEED AST2500 BMC port(s)
TPM

1 TPM Header
Network Controllers

Dual LAN with 1GbE with Intel I210
M.2

22110Key: M-Key, M.2 Interface: PCIe 3.0 x4; SATAForm Factor: 2280
Chipset

Intel C621
DIMM Sizes

128GBRDIMM: 8GB, 16GB, 32GB, 64GB, LRDIMM: 32GB
BIOS Type

AMI UEFI
LAN

2 RJ45 Gigabit Ethernet LAN ports
Video Output

1 VGA port(s)
DOM

DOM
Dimension

12" x 9.6" (30.48cm x 24.38cm)
PCIe

1 PCIe 3.0 x4 (in x8 slot), 2 PCIe 3.0 x8 (in x16 slot), 4 PCIe 3.0 x8
USB

8 USB 2.0 port(s) (2 rear; 6 via header)2 USB 3.0 port(s) (2 rear)3 USB 3 port(s) (2 via header; 1 type A)
Form Factor

ATX
Memory Type

2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
Application

Server
IPMI

ASPEED AST2500
Memory Voltage

1.2V
CPU

2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable ProcessorsSingle Socket LGA-3647 (Socket P) supported, CPU TDP supports Up to 165W TDP
Serial Port

2 COM Port(s) (1 header; 1 rear)
SATA

8 SATA3 (6Gbps) port(s)
Memory Capacity

8 DIMM slotsUp to 2TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 2TB 3DS ECC RDIMM, DDR4-2933MT/sUp to 1TB Intel Optane DC Persistent Memory in memory mode (Cascade Lake Only)
Error Detection

Corrects single-bit errors
Core

Up to 28 cores
