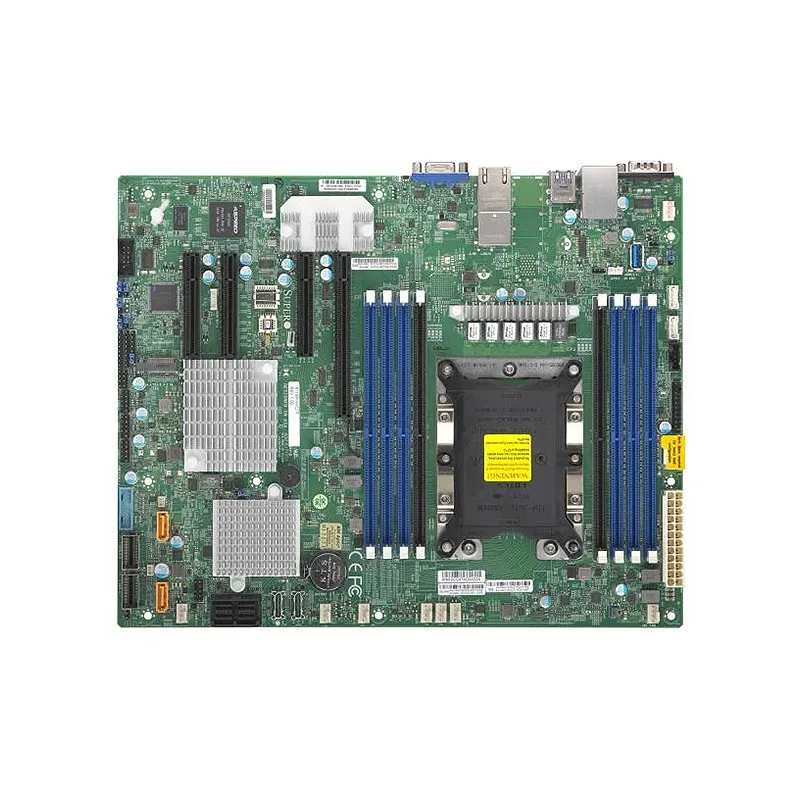

* NOTE: Image may not exactly match the product

Supermicro MBD-X11SPH-nCTF

**Supermicro MBD-X11SPH-nCTF**: A high-performance server motherboard designed for enterprise and data center workloads, featuring Intel Xeon Scalable processors (1st/2nd Gen) for exceptional compute power. Supports up to 3TB DDR4 ECC memory via 12 DIMM slots and offers expansive PCIe 3.0 connectivity, including dual x16 slots and an OCP 2.0 mezzanine slot for flexible GPU/FPGA/accelerator integration. Built for storage-intensive tasks with 14 SATA3 ports and dual M.2 NVMe support. Dual 10G LAN ports ensure high-speed networking, while IPMI 2.0 enables remote management. Optimized for AI, HPC, and cloud environments, its scalable architecture, robust thermal design, and redundancy features ensure reliability, efficiency, and 24/7 uptime. Ideal for demanding applications requiring rapid data processing and future-ready expansion.

$Quote1 Piece(MOQ)

SKU MBD-X11SPH-nCTF Categories , , Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

Product SKUs

  • MBD-X11SPH-nCTF

Physical Stats

  • Form Factor
    ATX
  • Dimension
    12″ x 9.6″ (30.48cm x 24.38cm)

Processor

  • CPU
    2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable Processors
    Single Socket Socket P (LGA-3647) supported, CPU TDP supports Up to 205W TDP
  • Core
    Up to 28 cores

System Memory

  • Memory Capacity
    8 DIMM slots
    Up to 2TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 2TB 3DS ECC RDIMM, DDR4-2933MT/s
  • Memory Type
    2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
  • DIMM Sizes
    LRDIMM: 32GB, 64GB, 128GB
    RDIMM: 8GB, 16GB, 32GB, 64GB
  • Memory Voltage
    1.2V
  • Error Detection
    Corrects single-bit errors

On-Board Devices

  • Chipset
    Intel C622
  • SATA
    Broadcom 3008 SW controller for 8 SAS3 (12 Gbps) ports; RAID 0,1,10
    Intel C622 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  • IPMI
    ASPEED AST2500
  • Graphics
    1 ASPEED AST2500 BMC port(s)
  • Network Controllers
    Dual LAN with 10GBase-T with Intel X722 + X557

Input / Output

  • SATA
    10 SATA3 (6Gbps) port(s)
  • SAS
    8 SAS port(s)
  • LAN
    2 RJ45 10GBase-T ports
  • USB
    8 USB 2.0 port(s) (2 rear; 6 via header)
    2 USB 3.0 port(s) (2 rear)
    3 USB 3 port(s) (2 via header; 1 type A)
  • Video Output
    1 VGA port(s)
  • Serial Port
    2 COM Port(s) (1 header; 1 rear)
  • DOM
    2 SATA DOM (Disk on Module) power connector support
  • TPM
    1 TPM Header

Expansion Slots

  • PCIe
    1 PCIe 3.0 x16 (x16 or x8 ),
    1 PCIe 3.0 x8 (x0 or x8 ),
    1 PCIe 3.0 x8,
    1 PCIe 3.0 x4 (in x8 slot)
  • M.2
    M.2 Interface: PCIe 3.0 x4; SATA
    Form Factor: 2280
    Key: M-Key

System BIOS

  • BIOS Type
    AMI UEFI
  • BIOS Features
    ACPI 6.0
    RTC (Real Time Clock) Wakeup
    SMBIOS 3.0 or later

Management

  • Power Configurations
    Power-on mode for AC power recovery, ACPI Power Management
BIOS Features

ACPI 6.0RTC (Real Time Clock) WakeupSMBIOS 3.0 or later
Graphics

1 ASPEED AST2500 BMC port(s)
TPM

1 TPM Header
Network Controllers

Dual LAN with 10GBase-T with Intel X722 + X557
M.2

M.2 Interface: PCIe 3.0 x4; SATAForm Factor: 2280Key: M-Key
Chipset

Intel C622
DIMM Sizes

128GBRDIMM: 8GB, 16GB, 32GB, 64GB, LRDIMM: 32GB
BIOS Type

AMI UEFI
LAN

2 RJ45 10GBase-T ports
Video Output

1 VGA port(s)
DOM

DOM
Dimension

12" x 9.6" (30.48cm x 24.38cm)
PCIe

1 PCIe 3.0 x16 (x16 or x8 ), 1 PCIe 3.0 x4 (in x8 slot), 1 PCIe 3.0 x8, 1 PCIe 3.0 x8 (x0 or x8 )
USB

8 USB 2.0 port(s) (2 rear; 6 via header)2 USB 3.0 port(s) (2 rear)3 USB 3 port(s) (2 via header; 1 type A)
Form Factor

ATX
Memory Type

2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
Application

Server
IPMI

ASPEED AST2500
Memory Voltage

1.2V
CPU

2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable ProcessorsSingle Socket Socket P (LGA-3647) supported, CPU TDP supports Up to 205W TDP
SAS

8 SAS port(s)
Serial Port

2 COM Port(s) (1 header; 1 rear)
SATA

10 SATA3 (6Gbps) port(s)
Memory Capacity

8 DIMM slotsUp to 2TB 3DS ECC LRDIMM, DDR4-2933MT/s, DDR4-2933MT/s; Up to 2TB 3DS ECC RDIMM
Error Detection

Corrects single-bit errors
Core

Up to 28 cores
