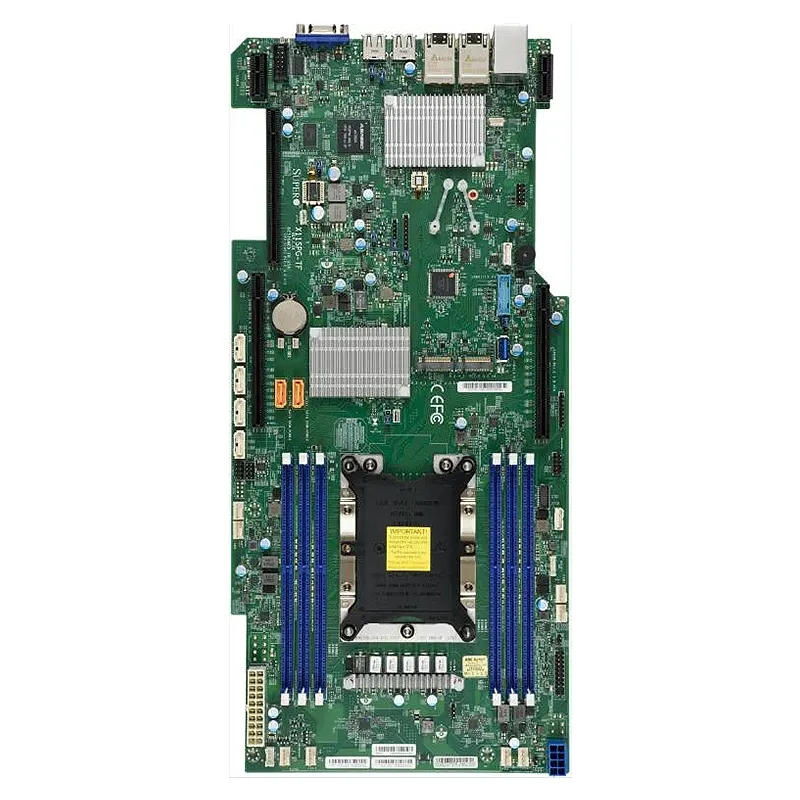

* NOTE: Image may not exactly match the product

Supermicro MBD-X11SPG-TF

**Supermicro MBD-X11SPG-TF: High-Performance Server Motherboard**
Designed for enterprise and data center use, the Supermicro X11SPG-TF supports Intel Xeon Scalable processors (1st/2nd Gen) with up to 28 cores, enabling robust multitasking and compute-heavy workloads. Key features include 16 DDR4 DIMM slots (up to 2TB ECC memory), dual 10GBase-T LAN ports, and seven PCIe 3.0 slots for high-speed storage and GPU/FPGA expansion. Integrated IPMI 2.0 with dedicated LAN ensures remote management, while dual M.2 NVMe slots and SATA 3.0 support fast storage solutions. Built for reliability with server-grade components and optimized airflow design, it excels in AI, virtualization, and cloud environments. Unique selling points: exceptional scalability, advanced thermal management, and seamless integration with Supermicro’s chassis and solutions.

$Quote5 pcs (MOQ) Minimum Order Quantity

SKU MBD-X11SPG-TF Categories , , Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

Product SKUs

  • MBD-X11SPG-TF

Physical Stats

  • Form Factor
    Proprietary
  • Dimension
    7.71″ x 16.64″ (19.58cm x 42.27cm)

Processor

  • CPU
    2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable Processors
    Single Socket LGA-3647 (Socket P) supported, CPU TDP supports Up to 205W TDP
  • Core
    Up to 28 cores

System Memory

  • Memory Capacity
    6 DIMM slots
    Up to 1.5TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 1.5TB 3DS ECC RDIMM, DDR4-2933MT/s
  • Memory Type
    2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
  • DIMM Sizes
    LRDIMM: 32GB, 64GB, 128GB
    RDIMM: 8GB, 16GB, 32GB, 64GB
  • Memory Voltage
    1.2V
  • Error Detection
    Corrects single-bit errors

On-Board Devices

  • Chipset
    Intel C621
  • SATA
    Intel C621 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  • IPMI
    ASPEED AST2500
  • Graphics
    1 ASPEED AST2500 BMC port(s)
  • Network Controllers
    Dual LAN with 10GBase-T with Intel X550

Input / Output

  • SATA
    6 SATA3 (6Gbps) port(s)
  • LAN
    2 RJ45 10GBase-T ports
  • USB
    4 USB 2.0 port(s) (2 via header; 2 rear)
    2 USB 3.0 port(s) (2 rear)
    3 USB 3 port(s) (2 via header; 1 type A)
  • Video Output
    1 VGA port(s)
  • Serial Port
    1 COM Port(s) (1 header)
  • DOM
    2 SATA DOM (Disk on Module) power connector support
  • TPM
    1 TPM Header

Expansion Slots

  • PCIe
    1 PCIe 3.0 x16 Center Right Hand Slot,
    1 PCIe 3.0 x16 Left Riser Slot,
    1 PCIe 3.0 x16 Right Riser Slot
  • M.2
    M.2 Interface: PCIe 3.0 x4
    Form Factor: 2280
    Key: M-Key

System BIOS

  • BIOS Type
    AMI UEFI
  • BIOS Features
    ACPI 6.0
    RTC (Real Time Clock) Wakeup
    SMBIOS 3.0 or later

Management

  • Power Configurations
    Power-on mode for AC power recovery, ACPI Power Management
Brand

Supermicro
Application

Server
Form Factor

Proprietary
Chipset

Intel C621
Products Status

New
Socket

LGA-3647
USB

4 USB 2.0 port(s) (2 via header; 2 rear)2 USB 3.0 port(s) (2 rear)3 USB 3 port(s) (2 via header; 1 type A)
BIOS Type

AMI UEFI
Memory Capacity

6 DIMM slotsUp to 1.5TB 3DS ECC LRDIMM, DDR4-2933MT/s, DDR4-2933MT/s; Up to 1.5TB 3DS ECC RDIMM
Memory Type

2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
Memory Voltage

1.2V
DIMM Sizes

128GBRDIMM: 8GB, 16GB, 32GB, 64GB, LRDIMM: 32GB
CPU

2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable Processors
Error Detection

Corrects single-bit errors
SATA

6 SATA3 (6Gbps) port(s)
Dimension

7.71" x 16.64" (19.58cm x 42.27cm)
Network Controllers

Dual LAN with 10GBase-T with Intel X550
M.2

M.2 Interface: PCIe 3.0 x4Form Factor: 2280Key: M-Key
IPMI

ASPEED AST2500
PCIe

1 PCIe 3.0 x16 Center Right Hand Slot, 1 PCIe 3.0 x16 Left Riser Slot, 1 PCIe 3.0 x16 Right Riser Slot
TPM

1 TPM Header
BIOS Features

ACPI 6.0RTC (Real Time Clock) WakeupSMBIOS 3.0 or later
Cores

Up to 28 cores
Video Output

1 VGA port(s)
LAN

2 RJ45 10GBase-T ports
Serial Port

1 COM Port(s) (1 header)
Graphics

1 ASPEED AST2500 BMC port(s)
