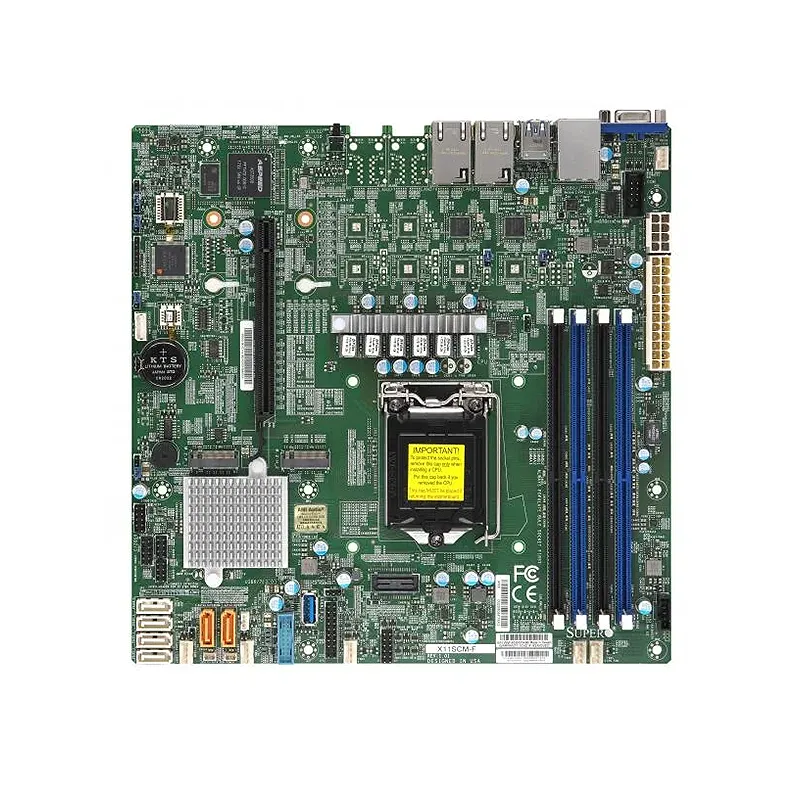

Supermicro MBD-X11SCM-F

**Supermicro MBD-X11SCM-F: Compact Powerhouse for Demanding Workloads**
This micro-ATX motherboard combines enterprise-grade reliability with versatile performance. Built for Intel Xeon E-2100 and 8th/9th Gen Core processors (LGA 1151) on the Intel C246 chipset, it supports up to 128GB ECC/non-ECC DDR4 RAM for enhanced data integrity. Features include six SATA3 ports, dual M.2 slots (NVMe/SATA), PCIe 3.0 expansion, and dual Intel Gigabit LAN for robust connectivity. Integrated IPMI 2.0 with KVM enables remote management, while server-grade components ensure 24/7 stability. Ideal for SMBs, data centers, and edge computing, it excels in scalability, redundancy, and compact efficiency—perfect for storage, networking, or virtualization solutions.

$Quote1 Piece(MOQ)

SKU MBD-X11SCM-F Categories , , Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

Product SKUs

  • MBD-X11SCM-F

Physical Stats

  • Form Factor
    microATX
  • Dimension
    9.6″ x 9.6″ (24.38cm x 24.38cm)

Processor

  • CPU
    8th/9th Generation Intel Core i3/Pentium/Celeron Processor, Intel Xeon E-2100 Processor, Intel Xeon E-2200 Processor
    Single Socket Socket H4 (LGA-1151) supported, CPU TDP supports Up to 95W TDP
  • Core
    Up to 8 cores, 16 threads

System Memory

  • Memory Capacity
    4 DIMM slots
    Up to 128GB Unbuffered ECC UDIMM, DDR4-2666MT/s
  • Memory Type
    2666/2400/2133 MT/s SDRAM 72-bit,
  • DIMM Sizes
    4GB, 8GB, 16GB, 32GB
  • Memory Voltage
    1.2V
  • Error Detection
    Corrects single-bit errors

On-Board Devices

  • Chipset
    Intel C246
  • SATA
    Intel C246 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  • IPMI
    ASPEED AST2500
  • Graphics
    1 ASPEED AST2500 BMC port(s)
  • Network Controllers
    Dual LAN with Intel Ethernet Controller I210-AT

Input / Output

  • SATA
    6 SATA3 (6Gbps) port(s)
  • LAN
    2 RJ45 Gigabit Ethernet LAN ports
  • USB
    4 USB 2.0 port(s) (2 via header; 2 rear)
    5 USB 3.1 Gen1 port(s) (2 via header; 2 rear; 1 type A)
  • Video Output
    1 VGA port(s)
  • Serial Port
    1 COM Port(s) (1 header)
  • TPM
    1 TPM Header

Expansion Slots

  • PCIe
    1 PCIe 3.0 x16
  • M.2
    M.2 Interface: 1 SATA/PCIe 3.0 x4; 1 PCIe 3.0 x4
    Form Factor: 2280/22110
    Key: M-Key

System BIOS

  • BIOS Type
    256MB UEFI
  • BIOS Features
    ACPI 6.0
    SMBIOS 2.7
    Plug and Play (PnP)
    RTC (Real Time Clock) Wakeup
    UEFI 2.7
    USB Keyboard support
    PCI 3.0

Management

  • System Management Software
    IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
  • Power Configurations
    ACPI Power Management
BIOS Features

ACPI 6.0SMBIOS 2.7Plug and Play (PnP)RTC (Real Time Clock) WakeupUEFI 2.7USB Keyboard supportPCI 3.0
Graphics

1 ASPEED AST2500 BMC port(s)
TPM

1 TPM Header
Network Controllers

Dual LAN with Intel Ethernet Controller I210-AT
M.2

M.2 Interface: 1 SATA/PCIe 3.0 x4; 1 PCIe 3.0 x4Form Factor: 2280/22110Key: M-Key
Chipset

Intel C246
DIMM Sizes

16GB, 32GB, 4GB, 8GB
BIOS Type

256MB UEFI
LAN

2 RJ45 Gigabit Ethernet LAN ports
Video Output

1 VGA port(s)
Dimension

9.6" x 9.6" (24.38cm x 24.38cm)
PCIe

1 PCIe 3.0 x16
USB

4 USB 2.0 port(s) (2 via header; 2 rear)5 USB 3.1 Gen1 port(s) (2 via header; 2 rear; 1 type A)
Form Factor

Micro-ATX
Memory Type

2666/2400/2133 MT/s SDRAM 72-bit
Application

Server
IPMI

ASPEED AST2500
Memory Voltage

1.2V
CPU

8th/9th Generation Intel Core i3/Pentium/Celeron Processor, CPU TDP supports Up to 95W TDP, Intel Xeon E-2100 Processor, Intel Xeon E-2200 ProcessorSingle Socket Socket H4 (LGA-1151) supported
Serial Port

1 COM Port(s) (1 header)
SATA

6 SATA3 (6Gbps) port(s)
Memory Capacity

4 DIMM slotsUp to 128GB Unbuffered ECC UDIMM, DDR4-2666MT/s
Error Detection

Corrects single-bit errors
Core

16 threads, Up to 8 cores
