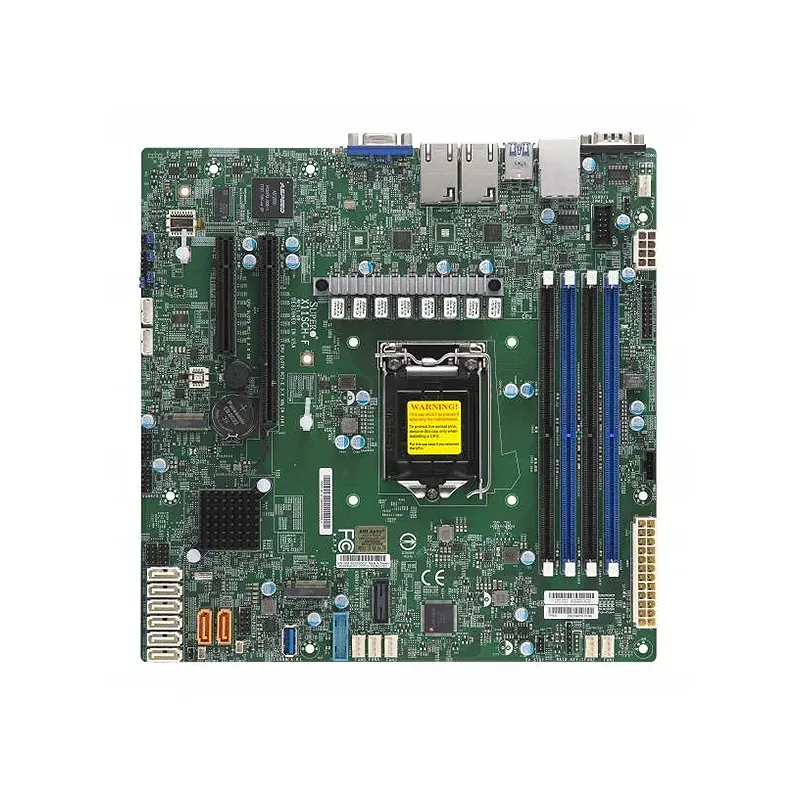

* NOTE: Image may not exactly match the product

Supermicro MBD-X11SCH-F

The Supermicro MBD-X11SCH-F is a high-performance Micro-ATX motherboard designed for enterprise servers and workstations. It supports Intel Xeon E-2100 and 8th/9th Gen Core processors, delivering robust computing power. Key features include dual Intel Gigabit LAN, up to 128GB DDR4 ECC memory for error-free operation, PCI-E 3.0 slots, M.2 NVMe/SATA support, and IPMI 2.0 remote management with KVM for seamless administration. Its compact design optimizes space efficiency in dense setups, while SATA3, USB 3.1 Gen2, and TPM headers enhance connectivity and security. Ideal for data centers and mission-critical applications, it combines scalability, reliability, and enterprise-grade management in a versatile form factor.

$Quote5 pcs (MOQ) Minimum Order Quantity

SKU MBD-X11SCH-F Categories , , Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

Product SKUs

  • MBD-X11SCH-F

Physical Stats

  • Form Factor
    Micro-ATX
  • Dimension
    9.6″ x 9.6″ (24.38cm x 24.38cm)

Processor

  • CPU
    8th/9th Generation Intel Core i3/Pentium/Celeron Processor, Intel Xeon E-2100 Processor, Intel Xeon E-2200 Processor
    Single Socket LGA-1151 (Socket H4) supported, CPU TDP supports Up to 95W TDP
  • Core
    Up to 8 cores, 16 threads

System Memory

  • Memory Capacity
    4 DIMM slots
    Up to 128GB ECC , DDR4-2666MT/s
  • Memory Type
    2666/2400/2133 MT/s SDRAM 72-bit,
  • DIMM Sizes
    4GB, 8GB, 16GB, 32GB
  • Memory Voltage
    1.2V
  • Error Detection
    Corrects single-bit errors

On-Board Devices

  • Chipset
    Intel C246
  • SATA
    Intel C246 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  • IPMI
    ASPEED AST2500
  • Graphics
    1 ASPEED AST2500 BMC port(s)
  • Network Controllers
    Dual LAN with Intel Ethernet Controller I210

Input / Output

  • SATA
    8 SATA3 (6Gbps) port(s)
  • LAN
    2 RJ45 Gigabit Ethernet LAN ports
  • USB
    6 USB 2.0 port(s) (4 via header; 2 rear)
    3 USB 3.1 Gen1 port(s) (2 via header; 1 type A)
    2 USB 3.1 Gen2 port(s) (2 rear)
  • Video Output
    1 VGA port(s)
  • Serial Port
    2 COM Port(s) (1 header; 1 rear)
  • TPM
    1 TPM Header

Expansion Slots

  • PCIe
    1 PCIe 3.0 x8 (in x16 slot),
    1 PCIe 3.0 x8
  • M.2
    M.2 Interface: PCIe 3.0 x4
    Form Factor: 22110, 2280
    Key: M-Key

System BIOS

  • BIOS Type
    256MB UEFI
  • BIOS Features
    ACPI 6.0
    SMBIOS 2.7
    Plug and Play (PnP)
    RTC (Real Time Clock) Wakeup
    UEFI 2.7
    USB Keyboard support
    PCI 3.0

Management

  • System Management Software
    IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
  • Power Configurations
    Power-on mode for AC power recovery, ACPI Power Management
Brand

Supermicro
Application

Server
Form Factor

Micro-ATX
Chipset

Intel C246
Products Status

New
Socket

LGA-1151
USB

6 USB 2.0 port(s) (4 via header; 2 rear)3 USB 3.1 Gen1 port(s) (2 via header; 1 type A)2 USB 3.1 Gen2 port(s) (2 rear)
BIOS Type

256MB UEFI
Memory Capacity

4 DIMM slotsUp to 128GB ECC, DDR4-2666MT/s
Memory Type

2666/2400/2133 MT/s SDRAM 72-bit
Memory Voltage

1.2V
DIMM Sizes

16GB, 32GB, 4GB, 8GB
CPU

8th/9th Generation Intel Core i3/Pentium/Celeron Processor, CPU TDP supports Up to 95W TDP, Intel Xeon E-2100 Processor, Intel Xeon E-2200 ProcessorSingle Socket LGA-1151 (Socket H4) supported
Error Detection

Corrects single-bit errors
SATA

8 SATA3 (6Gbps) port(s)
Dimension

9.6" x 9.6" (24.38cm x 24.38cm)
Network Controllers

Dual LAN with Intel Ethernet Controller I210
M.2

2280Key: M-Key, M.2 Interface: PCIe 3.0 x4Form Factor: 22110
IPMI

ASPEED AST2500
PCIe

1 PCIe 3.0 x8, 1 PCIe 3.0 x8 (in x16 slot)
TPM

1 TPM Header
BIOS Features

ACPI 6.0SMBIOS 2.7Plug and Play (PnP)RTC (Real Time Clock) WakeupUEFI 2.7USB Keyboard supportPCI 3.0
Cores

16 threads, Up to 8 cores
Video Output

1 VGA port(s)
LAN

2 RJ45 Gigabit Ethernet LAN ports
Serial Port

2 COM Port(s) (1 header; 1 rear)
Graphics

1 ASPEED AST2500 BMC port(s)
