Product SKUs

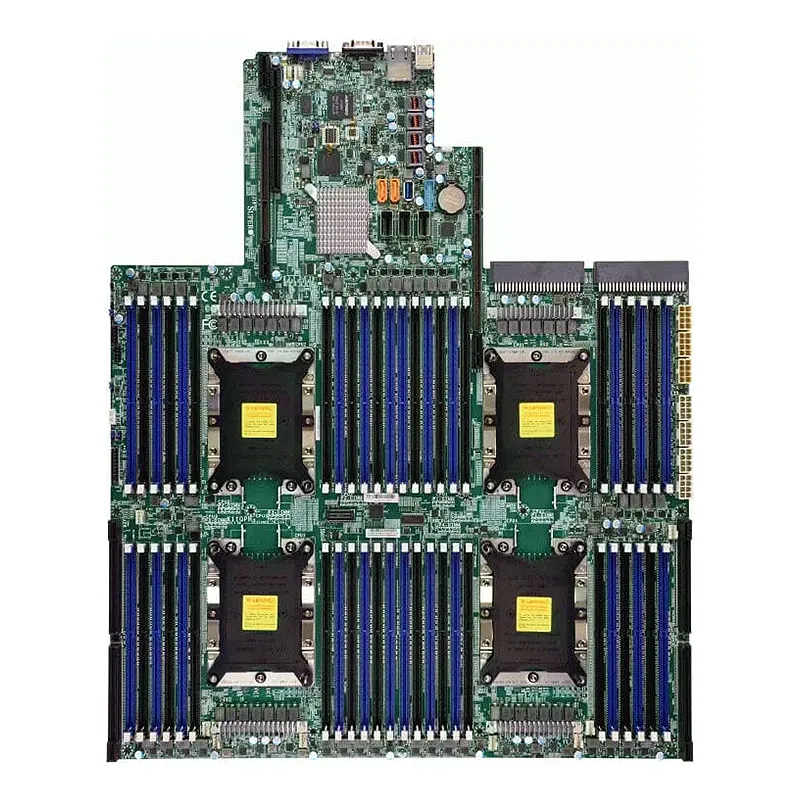

- MBD-X11QPH+
Physical Stats
- Form Factor
Proprietary
- Dimension
16.8″ x 20.5″ (42.67cm x 52.07cm)
Processor
- CPU
2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable Processors
Quad Socket Socket P (LGA-3647) supported, CPU TDP supports Up to 205W TDP, 3 UPI up to 10.4 GT/s - Core
Up to 28 cores
System Memory
- Memory Capacity
48 DIMM slots
Up to 12TB 3DS Intel Optane Persistent Memory 100 Series, DDR4-2666MT/s
Up to 12TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 12TB 3DS ECC RDIMM, DDR4-2933MT/s - Memory Type
2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
- DIMM Sizes
LRDIMM: 8GB, 16GB, 32GB, 64GB, 128GB
RDIMM: 8GB, 16GB, 32GB, 64GB, 128GB - Memory Voltage
1.2V
- Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
- Chipset
Intel C621
- IPMI
ASPEED AST2500
- Graphics
1 ASPEED AST2500 BMC port(s)
- Network Controllers
Networking options provided via Ultra Riser
- SATA
Intel C621 controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Input / Output
- SATA
2 SATA3 (6Gbps) port(s)
12 SATA3 (6Gbps) port(s) - USB
2 USB 2.0 port(s) (2 via header)
1 USB 3.2 Gen1 port(s) (1 type A)
2 USB 3.0 port(s) (2 rear) - Video Output
1 VGA port(s)
- Serial Port
1 COM Port(s) (1 rear)
- DOM
2 Super DOM (Disk on Module) power connector
- TPM
1 TPM Header
Expansion Slots
- PCIe
1 PCIe 3.0 x32 Left Riser.
1 PCIe 3.0 x40 Ultra Riser.
1 PCIe 3.0 x8 in x16 slot rear Middle Riser.
1 PCIe 3.0 x32 for 2U (or x48+x8 for 4U) on front for NVMe card support.
1 PCIe 3.0 (x32 for 2U or x48 for 4U) on front for NVMe card support.
System BIOS
- BIOS Type
AMI UEFI
Management
- System Management Software
SMCIPMITool
