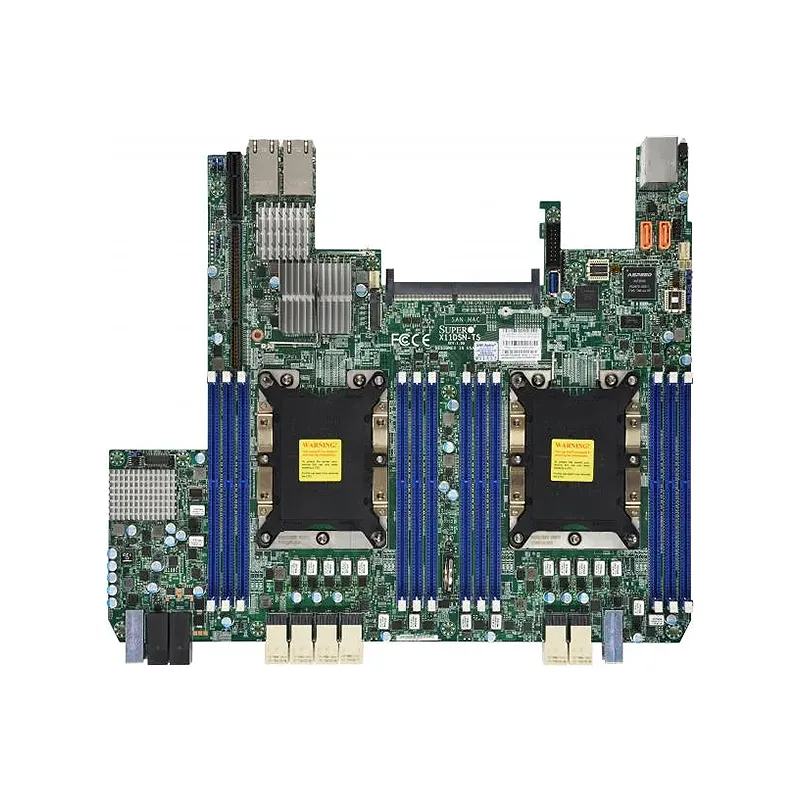

* NOTE: Image may not exactly match the product

Supermicro MBD-X11DSN-TSQ

**Supermicro MBD-X11DSN-TSQ**: A dual-socket server motherboard built for high-performance enterprise workloads. Supports dual Intel Xeon Scalable processors (up to 28 cores each) and 16 DDR4 DIMM slots (2TB max, with 3D Xeon Persistent Memory), enabling massive multitasking and data processing. Features seven PCIe 3.0 slots for GPUs/NVMe storage, dual 10G LAN ports (Intel X550), and flexible storage via dual M.2, eight SATA3, and NVMe support. Integrated IPMI 2.0 ensures remote management, while the Intel C624 chipset guarantees reliability. Ideal for data centers, AI, HPC, and cloud environments, offering unmatched scalability, redundancy, and performance in a robust, energy-efficient design.

$Quote1 Piece(MOQ)

SKU MBD-X11DSN-TSQ Categories , , Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

Product SKUs

  • MBD-X11DSN-TSQ

Physical Stats

  • Form Factor
    Proprietary
  • Dimension
    11.5″ x 13.9″ (29.21cm x 35.31cm)

Processor

  • CPU
    2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable Processors
    Dual Socket Socket P (LGA-3647) supported, CPU TDP supports Up to 205W TDP, 3 UPI up to 10.4 GT/s

System Memory

  • Memory Capacity
    12 DIMM slots
    Up to 3TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 3TB 3DS ECC RDIMM, DDR4-2933MT/s
    Up to 2TB Intel Optane DC Persistent Memory in memory mode (Cascade Lake only)
  • Memory Type
    ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
  • DIMM Sizes
    LRDIMM: 64GB, 128GB
    RDIMM: 64GB, 128GB
  • Memory Voltage
    1.2V
  • Error Detection
    Corrects single-bit errors
    Detects double-bit errors (using ECC memory)

On-Board Devices

  • Chipset
    Intel C627
  • SATA
    Intel PCH SATA controller for ports
  • IPMI
    ASPEED AST2500
  • Graphics
    1 ASPEED AST2500 BMC port(s)
  • Network Controllers
    Dual LAN with 10GBase-T with Intel X557

Input / Output

  • USB
    1 USB 3.2 Gen1 port(s) (1 type A)
    2 USB 3.0 port(s) (2 rear)
  • Video Output
    1 VGA D-Sub Connector port(s)
  • Serial Port
    2 COM Port(s) (1 header; 1 rear)
  • TPM
    1 TPM Header

Expansion Slots

  • PCIe
    2 PCIe 3.0 x16 Left Riser Slot
  • M.2
    M.2 Interface: 1 PCIe 3.0 x4
    Form Factor: 2242/2260/2280
    Key: M-Key

System BIOS

  • BIOS Type
    AMI UEFI

Management

  • System Management Software
    IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
  • Power Configurations
    M.2 NGFF connector, Node Manager Support, SDDC, System level control, UID, WOL
Graphics

1 ASPEED AST2500 BMC port(s)
TPM

1 TPM Header
Network Controllers

Dual LAN with 10GBase-T with Intel X557
M.2

M.2 Interface: 1 PCIe 3.0 x4Form Factor: 2242/2260/2280Key: M-Key
Chipset

Intel C627
DIMM Sizes

128GB, 128GBRDIMM: 64GB, LRDIMM: 64GB
BIOS Type

AMI UEFI
Video Output

1 VGA D-Sub Connector port(s)
Dimension

11.5" x 13.9" (29.21cm x 35.31cm)
PCIe

2 PCIe 3.0 x16 Left Riser Slot
USB

1 USB 3.2 Gen1 port(s) (1 type A)2 USB 3.0 port(s) (2 rear)
Form Factor

Proprietary
Memory Type

ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
Application

Server
IPMI

ASPEED AST2500
Memory Voltage

1.2V
CPU

2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable ProcessorsDual Socket Socket P (LGA-3647) supported, 3 UPI up to 10.4 GT/s, CPU TDP supports Up to 205W TDP
Serial Port

2 COM Port(s) (1 header; 1 rear)
SATA

Intel PCH SATA controller for ports
Memory Capacity

12 DIMM slotsUp to 3TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 3TB 3DS ECC RDIMM, DDR4-2933MT/sUp to 2TB Intel Optane DC Persistent Memory in memory mode (Cascade Lake only)
Error Detection

Corrects single-bit errorsDetects double-bit errors (using ECC memory)

Q1: ls the product original ?

A1 : Yes, all of our products are orginal. We have our own QC team who will strictly check product quality before shipment.

Q2. Payment methods?

We accept T/T, PayPal, Alibaba ect.

Q3. Shipping methods?

We have long term business-ship with FedEx, UPS and DHL with favorble price. You can choose any shipping method mentioned above based on your ease. You can also use your own shipping account or shipping forwarder.

Q4. How long is the lead time?

Usually 1-3 working days after payment. Feel free to send me exact models for checking.

Q5. How long is the warranty period?

Different products have different warranty periods. Usually 1~3 years warranty.
