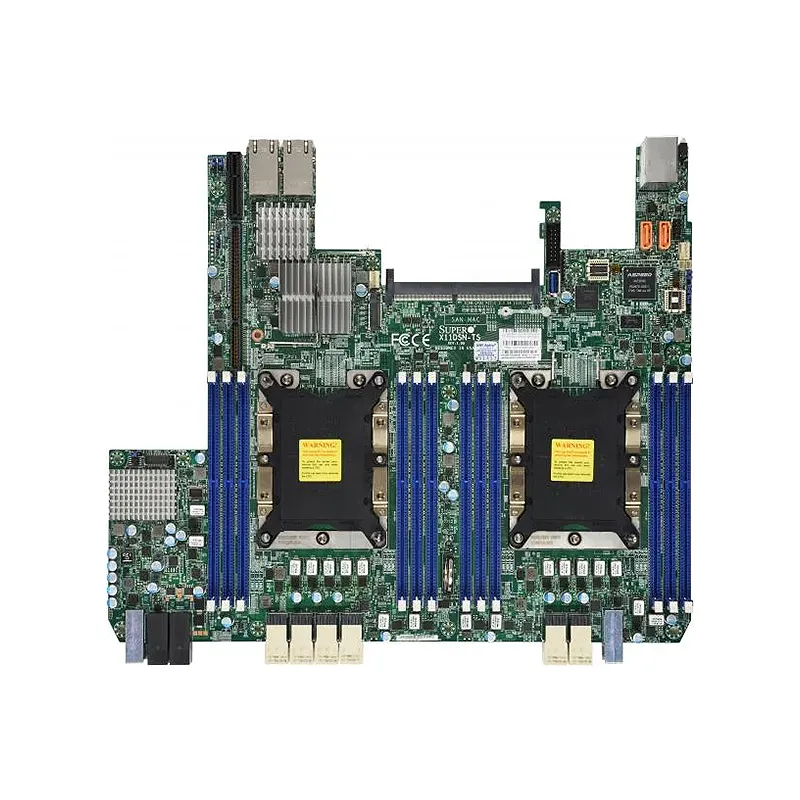

Supermicro MBD-X11DSN-TS

**Supermicro MBD-X11DSN-TS: High-Performance Dual-Socket Server Motherboard**
Designed for enterprise-grade computing, the Supermicro MBD-X11DSN-TS supports dual Intel Xeon Scalable processors (1st/2nd Gen) and the Intel C624 chipset, delivering exceptional performance for data centers, cloud, and HPC applications. Key features include 16 DDR4-2933 DIMM slots (2TB max), 10x SATA, dual M.2/U.2 NVMe support, and seven PCIe 3.0 slots for expandability. Integrated dual 10G LAN ensures high-speed networking, while IPMI 2.0 with KVM enables remote management. Built for reliability and scalability in an ATX form factor, it excels in virtualization, storage, and AI workloads. USP: Combines robust expandability, cutting-edge connectivity, and Supermicro’s trusted durability for mission-critical environments.

$Quote1 Piece(MOQ)

SKU MBD-X11DSN-TS Categories , , Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

Product SKUs

  • MBD-X11DSN-TS

Physical Stats

  • Form Factor
    Proprietary
  • Dimension
    11.5″ x 13.9″ (29.21cm x 35.31cm)

Processor

  • CPU
    2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable Processors
    Dual Socket Socket P (LGA-3647) supported, CPU TDP supports Up to 205W TDP, 3 UPI up to 10.4 GT/s
  • Core
    Up to 28 cores

System Memory

  • Memory Capacity
    12 DIMM slots
    Up to 3TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 3TB 3DS ECC RDIMM, DDR4-2933MT/s
    Up to 2TB Intel Optane DC Persistent Memory in memory mode (Cascade Lake only)
  • Memory Type
    2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
  • DIMM Sizes
    LRDIMM: 64GB, 128GB
    RDIMM: 32GB, 64GB, 128GB
  • Memory Voltage
    1.2V
  • Error Detection
    Corrects single-bit errors
    Detects double-bit errors (using ECC memory)

On-Board Devices

  • Chipset
    Intel C624
  • SATA
    Intel PCH SATA controller for ports
  • IPMI
    ASPEED AST2500
  • Graphics
    1 ASPEED AST2500 BMC port(s)
  • Network Controllers
    Dual LAN with 10GBase-T with Intel X557

Input / Output

  • USB
    1 USB 3.2 Gen1 port(s) (1 type A)
    2 USB 3.0 port(s) (2 rear)
  • Video Output
    1 VGA D-Sub Connector port(s)
  • Serial Port
    2 COM Port(s) (1 header; 1 rear)
  • TPM
    1 TPM Header

Expansion Slots

  • PCIe
    2 PCIe 3.0 x16 Left Riser Slot
  • M.2
    M.2 Interface: 1 PCIe 3.0 x4
    Form Factor: 2242/2260/2280
    Key: M-Key

System BIOS

  • BIOS Type
    AMI UEFI

Management

  • System Management Software
    IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
Graphics

1 ASPEED AST2500 BMC port(s)
TPM

1 TPM Header
Network Controllers

Dual LAN with 10GBase-T with Intel X557
M.2

M.2 Interface: 1 PCIe 3.0 x4Form Factor: 2242/2260/2280Key: M-Key
Chipset

Intel C624
DIMM Sizes

128GB, 128GBRDIMM: 32GB, 64GB, LRDIMM: 64GB
BIOS Type

AMI UEFI
Video Output

1 VGA D-Sub Connector port(s)
Dimension

11.5" x 13.9" (29.21cm x 35.31cm)
PCIe

2 PCIe 3.0 x16 Left Riser Slot
USB

1 USB 3.2 Gen1 port(s) (1 type A)2 USB 3.0 port(s) (2 rear)
Form Factor

Proprietary
Memory Type

2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
Application

Server
IPMI

ASPEED AST2500
Memory Voltage

1.2V
CPU

2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable ProcessorsDual Socket Socket P (LGA-3647) supported, 3 UPI up to 10.4 GT/s, CPU TDP supports Up to 205W TDP
Serial Port

2 COM Port(s) (1 header; 1 rear)
SATA

Intel PCH SATA controller for ports
Memory Capacity

12 DIMM slotsUp to 3TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 3TB 3DS ECC RDIMM, DDR4-2933MT/sUp to 2TB Intel Optane DC Persistent Memory in memory mode (Cascade Lake only)
Error Detection

Corrects single-bit errorsDetects double-bit errors (using ECC memory)
Core

Up to 28 cores
