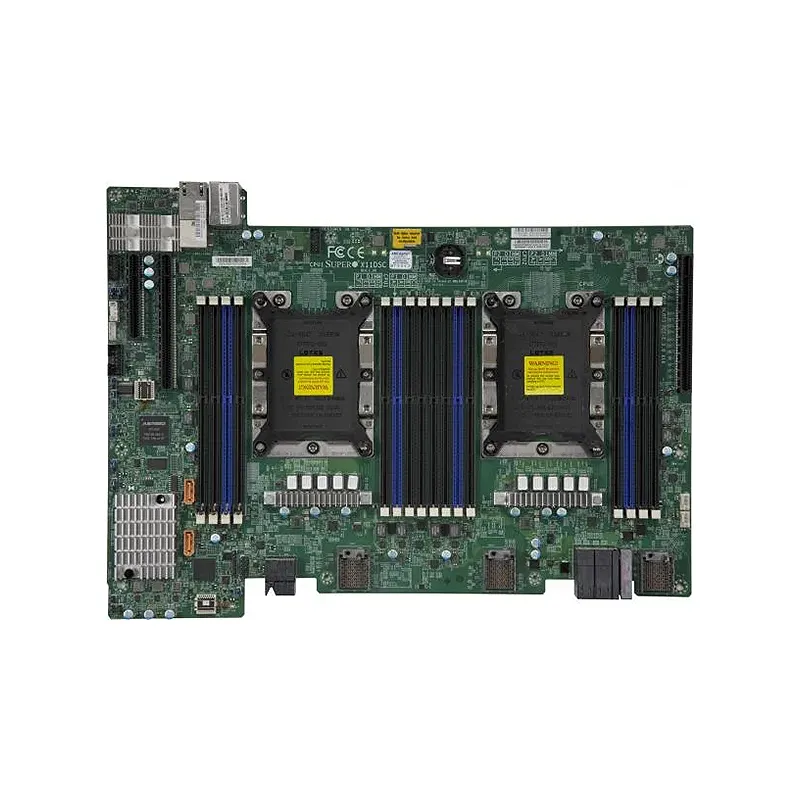

* NOTE: Image may not exactly match the product

Supermicro MBD-X11DSC

**Supermicro MBD-X11DSC: High-Performance Server Motherboard**
Dual-socket LGA 3647 design supports Intel Xeon Scalable processors, delivering enterprise-grade power for cloud, HPC, and data-intensive workloads. Features up to 1TB DDR4 ECC memory, PCIe 3.0 expansion, 10G LAN, and versatile storage (SATA/NVMe). Enhanced reliability, remote management via IPMI, and scalable connectivity ensure optimal uptime and flexibility. Compact form factor maximizes density without compromising performance. Ideal for businesses prioritizing robust compute, future-proof expansion, and energy-efficient infrastructure. **USP:** Unmatched versatility and performance-per-watt in a space-efficient design, backed by Supermicro’s trusted server engineering.

$Quote1 Piece(MOQ)

SKU MBD-X11DSC Categories , , Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

Product SKUs

  • MBD-X11DSC

Physical Stats

  • Form Factor
    Proprietary
  • Dimension
    14.8″ x 10.9″ (37.59cm x 27.69cm)

Processor

  • CPU
    2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable Processors
    Dual Socket Socket P (LGA-3647) supported, CPU TDP supports Up to 205W TDP, 3 UPI up to 10.4 GT/s
  • Core
    Up to 28 cores

System Memory

  • Memory Capacity
    16 DIMM slots
    Up to 2TB Intel Optane Persistent Memory 100 Series, DDR4-2666MT/s
    Up to 4TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 4TB 3DS ECC RDIMM, DDR4-2933MT/s
  • Memory Type
    ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
  • DIMM Sizes
    LRDIMM: 128GB
    RDIMM: 64GB
  • Memory Voltage
    1.2V
  • Error Detection
    Corrects single-bit errors
    Detects double-bit errors (using ECC memory)

On-Board Devices

  • Chipset
    Intel C621
  • IPMI
    ASPEED AST2500 BMC
  • Network Controllers
    Dual LAN with Intel X550 10GBase-T Ethernet Controller
    Networking options provided via Ultra Riser

Input / Output

  • SATA
    2 SATA3 (6Gbps) port(s)
  • LAN
    2 RJ45 10 Gigabit Ethernet LAN ports
  • USB
    3 USB 3.1 Gen1 port(s) (2 rear; 1 via header)
  • Serial Port
    1 COM Port(s) (1 header)
  • DOM
    2 SATA DOM (Disk on Module) power connector support
  • TPM
    1 TPM Header

Expansion Slots

  • PCIe
    2 PCIe 3.0 x16 Or 1 PCIe 3.0 x8
  • M.2
    M.2 Interface: 2 PCIe 3.0 x2
    Form Factor: 22110

System BIOS

  • BIOS Type
    AMI UEFI

Management

  • System Management Software
    IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
  • Power Configurations
    ACPI / ACPM Power Management
TPM

1 TPM Header
Network Controllers

Dual LAN with Intel X550 10GBase-T Ethernet ControllerNetworking options provided via Ultra Riser
M.2

M.2 Interface: 2 PCIe 3.0 x2Form Factor: 22110
Chipset

Intel C621
DIMM Sizes

LRDIMM: 128GBRDIMM: 64GB
BIOS Type

AMI UEFI
LAN

2 RJ45 10 Gigabit Ethernet LAN ports
DOM

DOM
Dimension

14.8" x 10.9" (37.59cm x 27.69cm)
PCIe

2 PCIe 3.0 x16 Or 1 PCIe 3.0 x8
USB

3 USB 3.1 Gen1 port(s) (2 rear; 1 via header)
Form Factor

Proprietary
Memory Type

ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
Application

Server
IPMI

ASPEED AST2500 BMC
Memory Voltage

1.2V
CPU

2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable ProcessorsDual Socket Socket P (LGA-3647) supported, 3 UPI up to 10.4 GT/s, CPU TDP supports Up to 205W TDP
Serial Port

1 COM Port(s) (1 header)
SATA

2 SATA3 (6Gbps) port(s)
Memory Capacity

16 DIMM slotsUp to 2TB Intel Optane Persistent Memory 100 Series, DDR4-2666MT/sUp to 4TB 3DS ECC LRDIMM, DDR4-2933MT/s, DDR4-2933MT/s; Up to 4TB 3DS ECC RDIMM
Error Detection

Corrects single-bit errorsDetects double-bit errors (using ECC memory)
Core

Up to 28 cores
