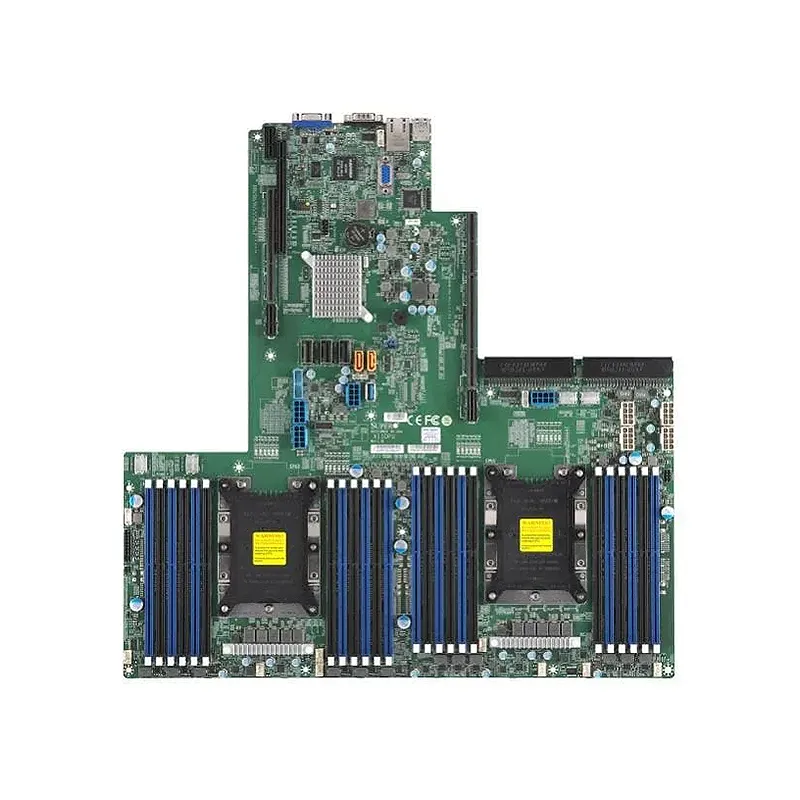

* NOTE: Image may not exactly match the product

Supermicro MBD-X11DPU-V

Supermicro MBD-X11DPU-V is a high-performance dual-socket server motherboard designed for enterprise and data center workloads. It supports dual Intel Xeon Scalable processors (PURLEY platform) and up to 3TB DDR4 ECC memory across 16 DIMM slots, delivering exceptional compute power for AI, virtualization, and cloud applications. Key features include six PCIe 3.0 slots (including two x16 FHFL) for GPU/accelerator support, dual 10G LAN ports, and multiple storage options (SATA, NVMe via U.2/M.2). Integrated IPMI 2.0 enables remote management, while optimized thermal design and 80+ Platinum PSU compatibility ensure energy efficiency. Its scalability, redundancy, and enterprise-grade reliability make it ideal for mission-critical deployments.

$Quote1 Piece(MOQ)

SKU MBD-X11DPU-V Categories , , Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

Product SKUs

  • MBD-X11DPU-V

Physical Stats

  • Form Factor
    Proprietary Ultra
  • Dimension
    17″ x 16.8″ (43.18cm x 42.67cm)

Processor

  • CPU
    2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable Processors
    Dual Socket Socket P (LGA-3647) supported, CPU TDP supports Up to 205W TDP, Dual UPI up to 10.4 GT/s
  • Core
    Up to 28 cores

System Memory

  • Memory Capacity
    24 DIMM slots
    Up to 6TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 6TB 3DS ECC RDIMM, DDR4-2933MT/s
    Up to 6TB Intel Optane DC Persistent Memory in memory mode (Cascade Lake only).
  • Memory Type
    2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
  • DIMM Sizes
    LRDIMM: 128GB
    RDIMM: 128GB
  • Memory Voltage
    1.2V
  • Error Detection
    Corrects single-bit errors

On-Board Devices

  • Chipset
    Intel C621
  • SATA
    Intel C621 controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  • IPMI
    ASPEED AST2500
    IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    Support for Intelligent Platform Management Interface v.2.0
  • Graphics
    1 ASPEED AST2500 BMC port(s)
  • Network Controllers
    Networking options provided via Ultra Riser

Input / Output

  • SATA
    14 SATA3 (6Gbps) port(s)
  • USB
    3 USB 3.2 Gen1 port(s) (2 via header; 1 type A)
    2 USB 3.0 port(s) (2 rear)
  • Video Output
    2 VGA D-Sub Connector port(s)
  • Serial Port
    1 COM Port(s) (1 rear)
  • DOM
    2 Super DOM (Disk on Module) port with build power
  • TPM
    1 TPM Header & Chip both

Expansion Slots

  • PCIe
    1 PCIe 3.0 x32 Right Riser Slot,
    1 PCIe 3.0 x8 Right Riser Slot,
    1 PCIe 3.0 x40 Ultra Riser Slot

System BIOS

  • BIOS Type
    32MB AMI SPI Flash ROM

Management

  • System Management Software
    SuperDoctor 5, IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support, IPMICFG, IPMIView for Linux/Windows, SMCIPMITool, SSM, SUM, SPM
  • Power Configurations
    ACPI Power Management
Graphics

1 ASPEED AST2500 BMC port(s)
TPM

1 TPM Header & Chip both
Network Controllers

Networking options provided via Ultra Riser
Chipset

Intel C621
DIMM Sizes

LRDIMM: 128GBRDIMM: 128GB
BIOS Type

32MB AMI SPI Flash ROM
Video Output

2 VGA D-Sub Connector port(s)
DOM

DOM
Dimension

17" x 16.8" (43.18cm x 42.67cm)
PCIe

1 PCIe 3.0 x32 Right Riser Slot, 1 PCIe 3.0 x40 Ultra Riser Slot, 1 PCIe 3.0 x8 Right Riser Slot
USB

3 USB 3.2 Gen1 port(s) (2 via header; 1 type A)2 USB 3.0 port(s) (2 rear)
Form Factor

Proprietary Ultra
Memory Type

2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
Application

Server
IPMI

ASPEED AST2500IPMI 2.0 with virtual media over LAN and KVM-over-LAN supportSupport for Intelligent Platform Management Interface v.2.0
Memory Voltage

1.2V
CPU

2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable ProcessorsDual Socket Socket P (LGA-3647) supported, CPU TDP supports Up to 205W TDP, Dual UPI up to 10.4 GT/s
Serial Port

1 COM Port(s) (1 rear)
SATA

14 SATA3 (6Gbps) port(s)
Memory Capacity

24 DIMM slotsUp to 6TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 6TB 3DS ECC RDIMM, DDR4-2933MT/sUp to 6TB Intel Optane DC Persistent Memory in memory mode (Cascade Lake only).
Error Detection

Corrects single-bit errors
Core

Up to 28 cores
